蔡司INSPECT虚拟测量室

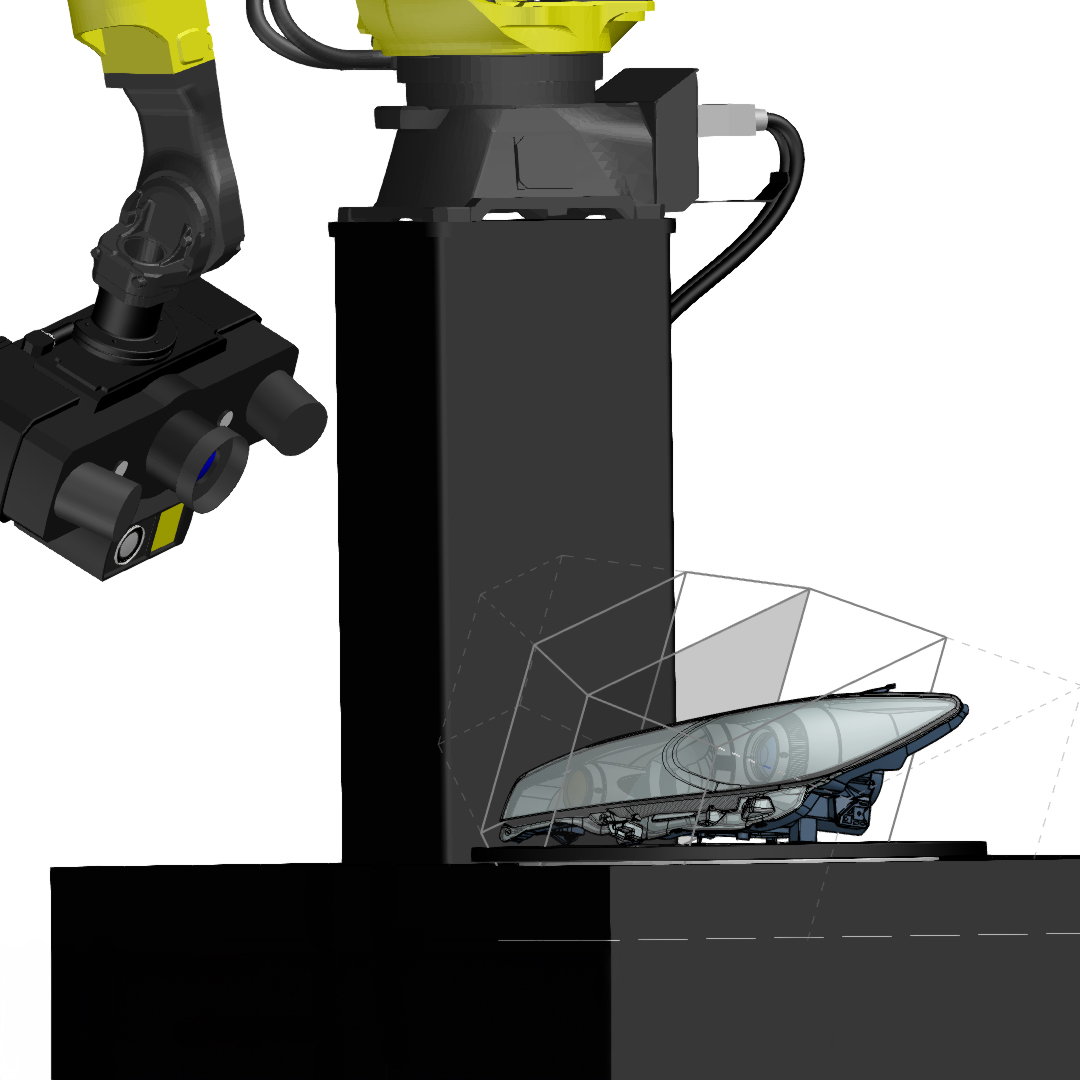

虚拟测量室（VMR）是用于光学三维测量机所有元件的中央控制和测量计划软件。其在虚拟仿真中模拟真实环境。VMR包括带传感器的机器人、编程（包括机器人路径的运动学）、部件和测量计划。借助VMR，用户无需掌握任何特定的机器人技巧。所有机器人动作在执行前都会在虚拟测量室中进行模拟和安全检查。
![蔡司ScanBox Series 5 RC]({"xsmall":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/2023_sb5_rc_ts_bersichtsseite_1920x1080.png/_jcr_content/renditions/original.image_file.100.100.473,17,1511,1055.file/2023_sb5_rc_ts_bersichtsseite_1920x1080.png","small":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/2023_sb5_rc_ts_bersichtsseite_1920x1080.png/_jcr_content/renditions/original.image_file.360.360.473,17,1511,1055.file/2023_sb5_rc_ts_bersichtsseite_1920x1080.png","medium":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/2023_sb5_rc_ts_bersichtsseite_1920x1080.png/_jcr_content/renditions/original.image_file.768.768.473,17,1511,1055.file/2023_sb5_rc_ts_bersichtsseite_1920x1080.png","large":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/2023_sb5_rc_ts_bersichtsseite_1920x1080.png/_jcr_content/renditions/original.image_file.1024.1024.473,17,1511,1055.file/2023_sb5_rc_ts_bersichtsseite_1920x1080.png","xlarge":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/2023_sb5_rc_ts_bersichtsseite_1920x1080.png/_jcr_content/renditions/original.image_file.1038.1038.473,17,1511,1055.file/2023_sb5_rc_ts_bersichtsseite_1920x1080.png","xxlarge":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/2023_sb5_rc_ts_bersichtsseite_1920x1080.png/_jcr_content/renditions/original.image_file.1038.1038.473,17,1511,1055.file/2023_sb5_rc_ts_bersichtsseite_1920x1080.png","max":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/2023_sb5_rc_ts_bersichtsseite_1920x1080.png/_jcr_content/renditions/original.image_file.1038.1038.473,17,1511,1055.file/2023_sb5_rc_ts_bersichtsseite_1920x1080.png"} "蔡司ScanBox Series 5 RC")
蔡司ScanBox Series 5 RC
自动装载和自主部件检测

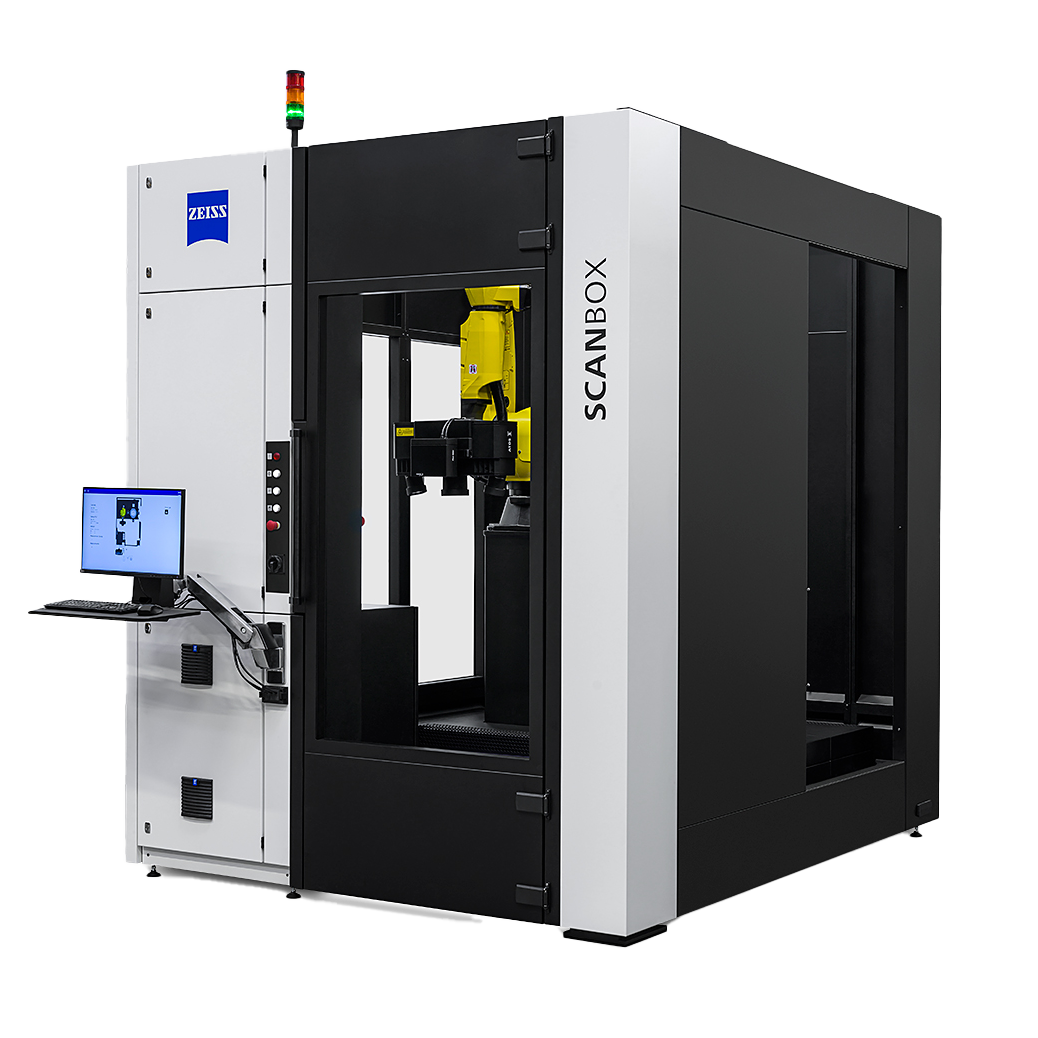

蔡司ScanBox Series 5 RC（遥控）是一款配备电动滑门的光学测量机。借助机器人或定制的装载系统，您可以自动将机翼、附属部件或工具等部件装入蔡司ScanBoxSeries 5 RC，并将其放置在旋转台模块上。用户无需放置单个部件，因此质量保证所需的时间相较以往大幅缩短。
与生产相关的质量保证和连续监测
自主运行提高了机器利用率，加快了测量周期，使您能够更有效地调配员工。蔡司ScanBox Series 5 RC有两种型号，专门针对需要高度集成和通量的应用而设计。由于占地面积小，可将该系统顺利地集成至每条生产线中。
高通量和高重复性
![准确的测量流程和出色的可比性]({"xsmall":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-precise.jpg/_jcr_content/renditions/original.image_file.100.56.0,0,1917,1080.file/zeiss-scanbox5-rc_2grid-precise.jpg","small":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-precise.jpg/_jcr_content/renditions/original.image_file.360.203.0,0,1917,1080.file/zeiss-scanbox5-rc_2grid-precise.jpg","medium":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-precise.jpg/_jcr_content/renditions/original.image_file.768.432.0,0,1917,1080.file/zeiss-scanbox5-rc_2grid-precise.jpg","large":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-precise.jpg/_jcr_content/renditions/original.image_file.1024.576.0,0,1917,1080.file/zeiss-scanbox5-rc_2grid-precise.jpg","xlarge":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-precise.jpg/_jcr_content/renditions/original.image_file.1280.720.0,0,1917,1080.file/zeiss-scanbox5-rc_2grid-precise.jpg","xxlarge":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-precise.jpg/_jcr_content/renditions/original.image_file.1440.810.0,0,1917,1080.file/zeiss-scanbox5-rc_2grid-precise.jpg","max":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-precise.jpg/_jcr_content/renditions/original.image_file.1917.1078.0,0,1917,1080.file/zeiss-scanbox5-rc_2grid-precise.jpg"} "准确的测量流程和出色的可比性")
准确的测量流程和出色的可比性

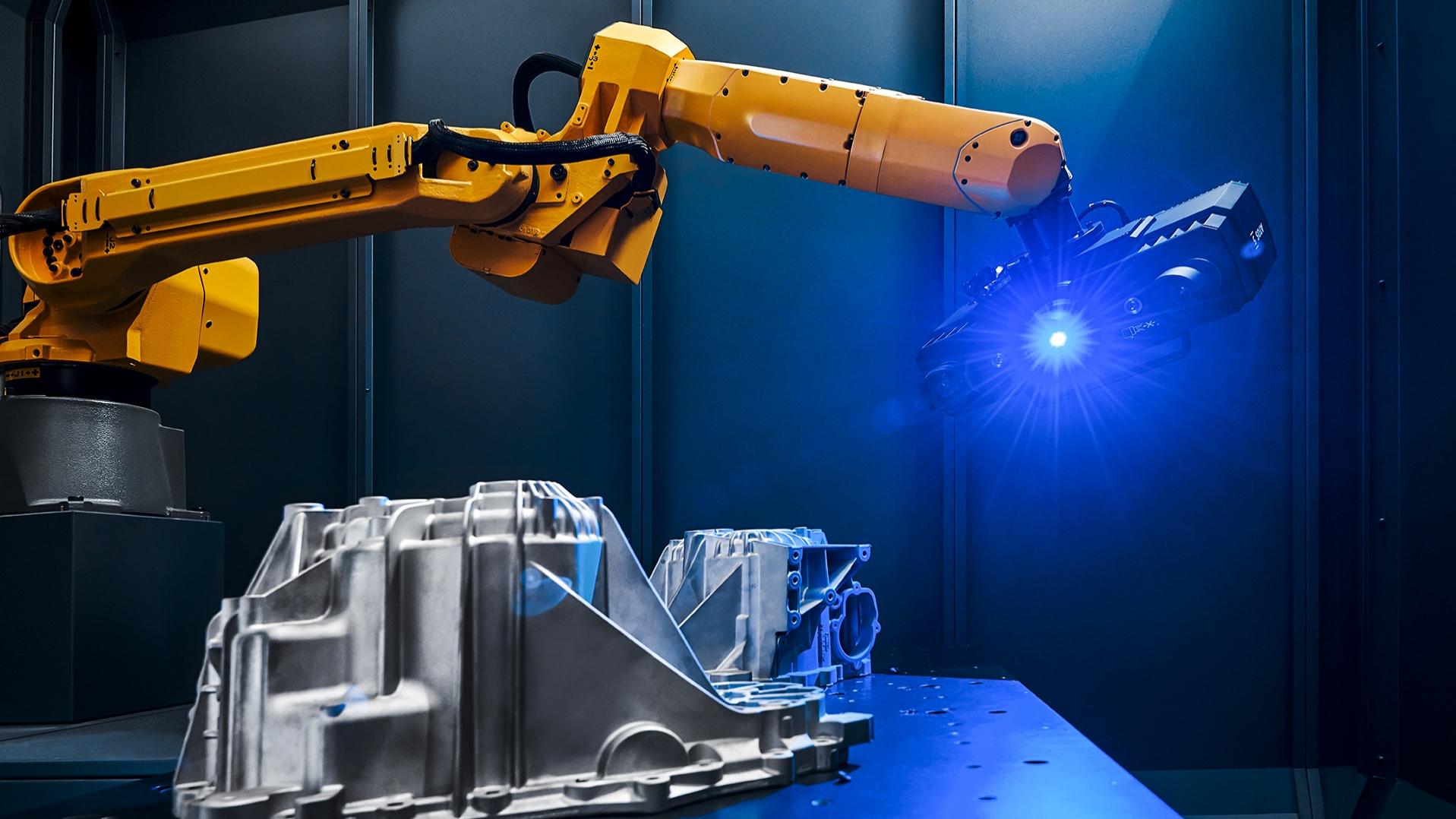

批量生产过程中的质量保证即是对生产过程进行监控，减少废品率，最大限度地降低返工需求。对于这种应用，蔡司ScanBox Series 5 RC光学测量机便是理想的解决方案。将使用ATOS 5传感器完全在三维环境中制作的序列部件的实际坐标，与CAD模型或测量计划中的规格进行直接比较。直接在生产设备上创建检测报告，并将其导出至统计过程控制系统。
![最大限度地利用机器和优化流程]({"xsmall":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.100.56.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","small":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.360.203.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","medium":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.768.432.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","large":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.1024.576.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","xlarge":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.1280.720.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","xxlarge":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original.image_file.1440.810.file/zeiss-scanbox5-rc_2grid-maximal-machine.jpg","max":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-maximal-machine.jpg/_jcr_content/renditions/original./zeiss-scanbox5-rc_2grid-maximal-machine.jpg"} "最大限度地利用机器和优化流程")
最大限度地利用机器和优化流程

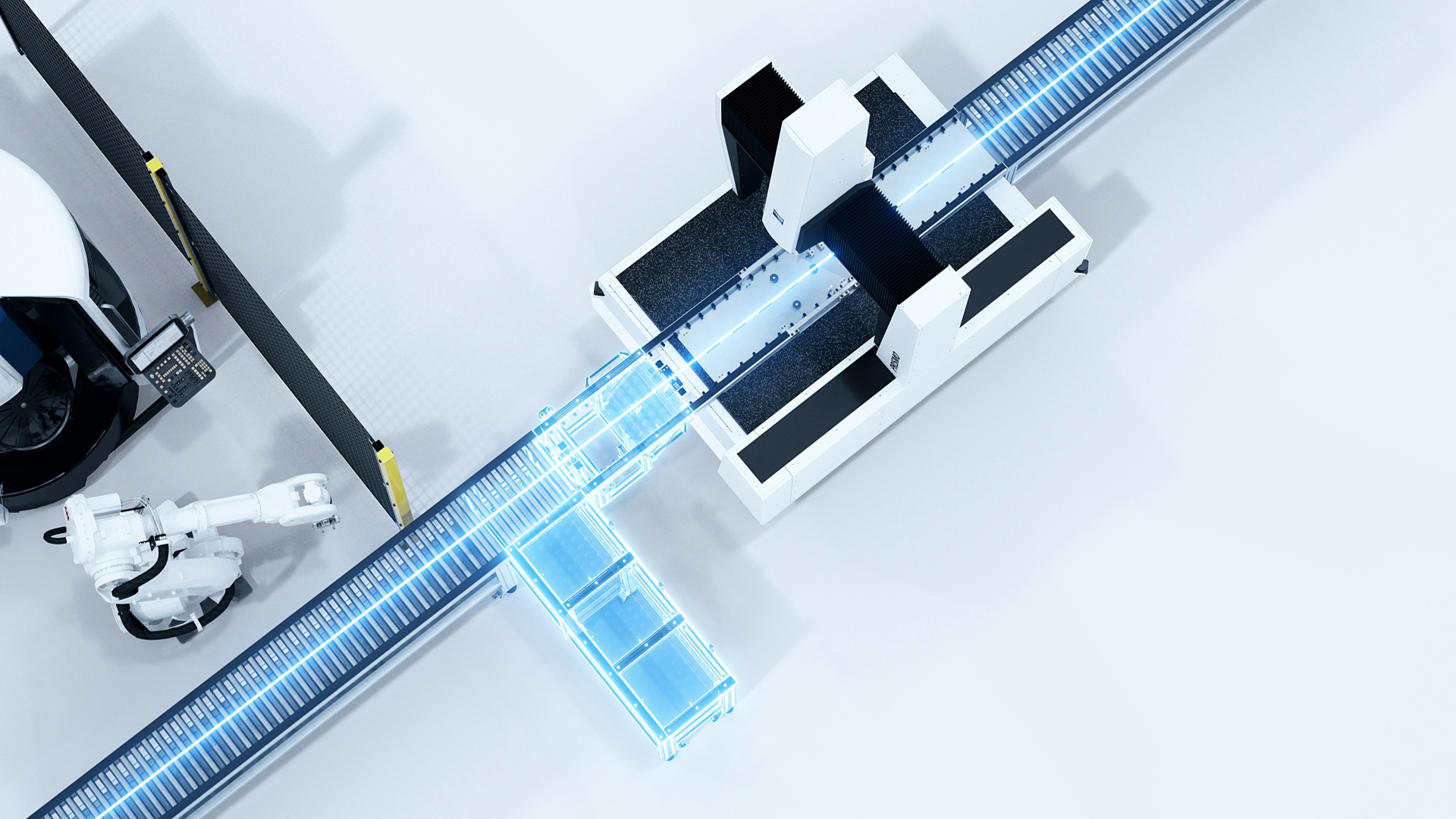

如果您想充分发挥蔡司ScanBoxSeries 5 RC的潜力，请将该光学测量机与蔡司ScanBox的送料和装载系统结合使用。通过蔡司Integration Series，您可以自动装载部件，从而避免停机。部件流和运行时间都得到了优化。
![带料仓装载系统的自动化技术]({"xsmall":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-automation.jpg/_jcr_content/renditions/original.image_file.100.56.file/zeiss-scanbox5-rc_2grid-automation.jpg","small":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-automation.jpg/_jcr_content/renditions/original.image_file.360.203.file/zeiss-scanbox5-rc_2grid-automation.jpg","medium":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-automation.jpg/_jcr_content/renditions/original.image_file.768.432.file/zeiss-scanbox5-rc_2grid-automation.jpg","large":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-automation.jpg/_jcr_content/renditions/original.image_file.1024.576.file/zeiss-scanbox5-rc_2grid-automation.jpg","xlarge":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-automation.jpg/_jcr_content/renditions/original.image_file.1280.720.file/zeiss-scanbox5-rc_2grid-automation.jpg","xxlarge":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-automation.jpg/_jcr_content/renditions/original.image_file.1440.810.file/zeiss-scanbox5-rc_2grid-automation.jpg","max":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/automated-solutions/scanbox/scanbox-rc-and-mu/zeiss-scanbox5-rc_2grid-automation.jpg/_jcr_content/renditions/original./zeiss-scanbox5-rc_2grid-automation.jpg"} "带料仓装载系统的自动化技术")
带料仓装载系统的自动化技术
集成料仓装载系统可延长周期并减少人员需求，该系统可自动测量长达11个小时。料仓装载系统由涡轮叶片等部件批次手动堆叠。每个夹具都贴有唯一的RFID芯片用于识别。根据其信息，将自动选择合适的测量程序。检测结束后，部件自动退回。
传感器兼容性
ATOS传感器可为每次测量提供全场三维坐标。每次扫描可在数秒内捕捉多达1200万个独立的测量点。因此，测量数据具有高细节重现的特点，从而能够测量非常小的部件特征。
![ATOS 5]({"xsmall":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_50_50_stage_1000_1000.jpg/_jcr_content/renditions/original.image_file.100.100.file/zeiss_atos_5_50_50_stage_1000_1000.jpg","small":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_50_50_stage_1000_1000.jpg/_jcr_content/renditions/original.image_file.360.360.file/zeiss_atos_5_50_50_stage_1000_1000.jpg","medium":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_50_50_stage_1000_1000.jpg/_jcr_content/renditions/original.image_file.768.768.file/zeiss_atos_5_50_50_stage_1000_1000.jpg","large":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_50_50_stage_1000_1000.jpg/_jcr_content/renditions/original./zeiss_atos_5_50_50_stage_1000_1000.jpg","xlarge":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_50_50_stage_1000_1000.jpg/_jcr_content/renditions/original./zeiss_atos_5_50_50_stage_1000_1000.jpg","xxlarge":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_50_50_stage_1000_1000.jpg/_jcr_content/renditions/original./zeiss_atos_5_50_50_stage_1000_1000.jpg","max":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5/zeiss_atos_5_50_50_stage_1000_1000.jpg/_jcr_content/renditions/original./zeiss_atos_5_50_50_stage_1000_1000.jpg"} "ATOS 5")
![ATOS 5 for Airfoil]({"xsmall":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_header-mobile.png/_jcr_content/renditions/original.image_file.100.100.file/zeiss_atos5-for-airfoil_header-mobile.png","small":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_header-mobile.png/_jcr_content/renditions/original.image_file.360.360.file/zeiss_atos5-for-airfoil_header-mobile.png","medium":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_header-mobile.png/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_header-mobile.png","large":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_header-mobile.png/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_header-mobile.png","xlarge":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_header-mobile.png/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_header-mobile.png","xxlarge":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_header-mobile.png/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_header-mobile.png","max":"https://www.zeiss.com.cn/content/dam/iqs/r/systems/optical-3d/3d-scanning/atos/atos-5-for-airfoil/zeiss_atos5-for-airfoil_header-mobile.png/_jcr_content/renditions/original./zeiss_atos5-for-airfoil_header-mobile.png"} "ATOS 5 for Airfoil")
技术信息
|
蔡司ScanBox 5110 RC
|
蔡司ScanBox 5120 RC
|
|
|---|---|---|
|
尺寸 |
2200 × 2850 × 3050 mm |
3600 × 3550 × 3050 mm |
|
电源 |
200-500 V（3相，16 A） |
200-500 V（3相，16 A） |
|
最大部件尺寸 |
Ø 1000 mm |
Ø 2000 mm |
|
最大部件重量 |
2000 kg |
2000 kg |
|
门 |
带安全开关的滑门 |
带安全开关的滑门 |
|
滑门开启宽度 |
1000 mm |
1350 mm |
|
装载方案 |
通过电动滑门自动运行，或通过安全门手动运行 |
通过电动滑门自动运行，或通过安全门手动运行 |
|
传感器兼容性 |
ATOS 5 for Airfoil，ATOS 51 |
ATOS 5 for Airfoil，ATOS 51 |
1 需要验证设置
