A photographer uses a camera with a ZEISS lens to capture a candid moment, showcasing the clarity and versatility of ZEISS optics in dynamic environments.
蔡司摄影

蔡司Touit镜头

让精美细节跃然眼前。

探索蔡司Touit镜头，体验独特的蔡司品质如何助您充分发挥Sony Alpha与富士X系列APS-C画幅无反相机的潜能。

立即探索更多详情
  • 安静且非常流畅的自动对焦操作
  • 几乎毫无失真的光学特性
  • 浮动镜片设计
  • Three ZEISS Touit 2.8/12 camera lenses with lens hoods are displayed side by side on a white background.
  • Close-up view of a ZEISS Touit 2.8/50M camera lens showing the front glass element and branding.
  • Rear view of a ZEISS camera lens showing the metal mount, electronic contacts, and inner glass element.
  • Black ZEISS Touit 1.8/32 camera lens displayed on a white background.

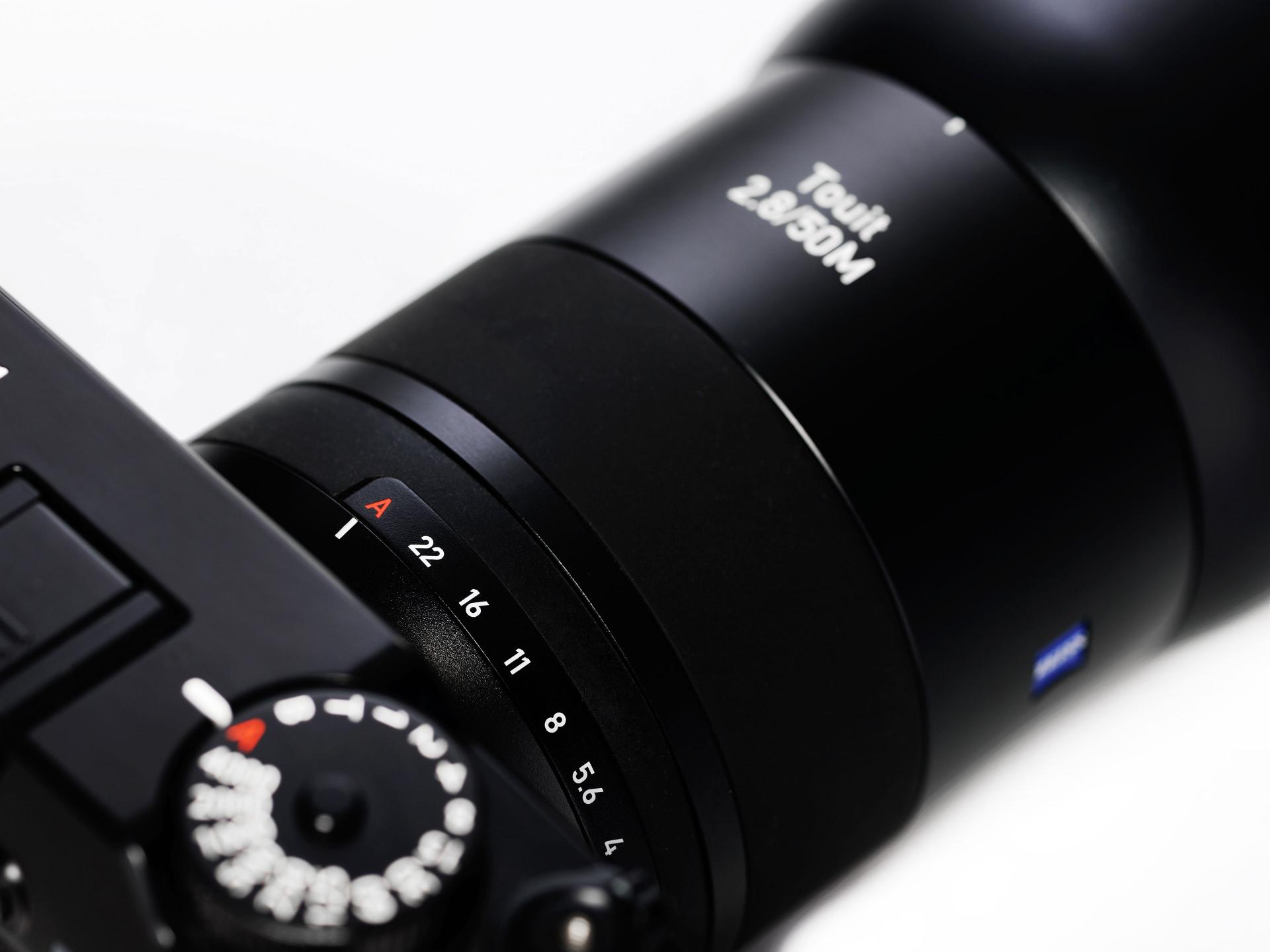

  • Close-up image of a ZEISS Touit 2.8/50M camera lens mounted on a black camera body, highlighting the aperture ring and focusing details.
  • Two ZEISS Touit 1.8/32 camera lenses are shown standing upright against a white background.
  • Front view of a ZEISS Planar 1.8/32 camera lens with a 52mm filter thread.
  • Close-up view of a ZEISS Distagon 2.8/12 camera lens with visible T* coating marking and 67mm filter thread size.

蔡司Touit系列专为APS-C画幅无反相机打造，包含多款紧凑型自动对焦镜头，兼容Sony E-Mount与Fujifilm X-Mount系统。这些镜头采用轻量化设计，兼顾便携性与操作便捷性，同时坚固的结构确保在各种拍摄环境中持久可靠。

Touit镜头以卓越画质著称，是追求精准成像的摄影师理想之选。无论是风光、人像还是微观细节拍摄，这些镜头均能提供超凡表现，全面提升系统相机性能，助您呈现惊艳视觉效果。


可用型号

蔡司Touit镜头
  • Wide-angle ZEISS Touit 2.8/12 camera lens with visible aperture and focus markings, shown against a white background.
    Touit 2.8/12

         拍摄距离:
    0.18 m (7.01") – ∞
    自由工作距离:
    0.10 m (3.94") – ∞
    重量:
    E: 260 g (0.57 lbs)
    X: 270 g (0.60 lbs)

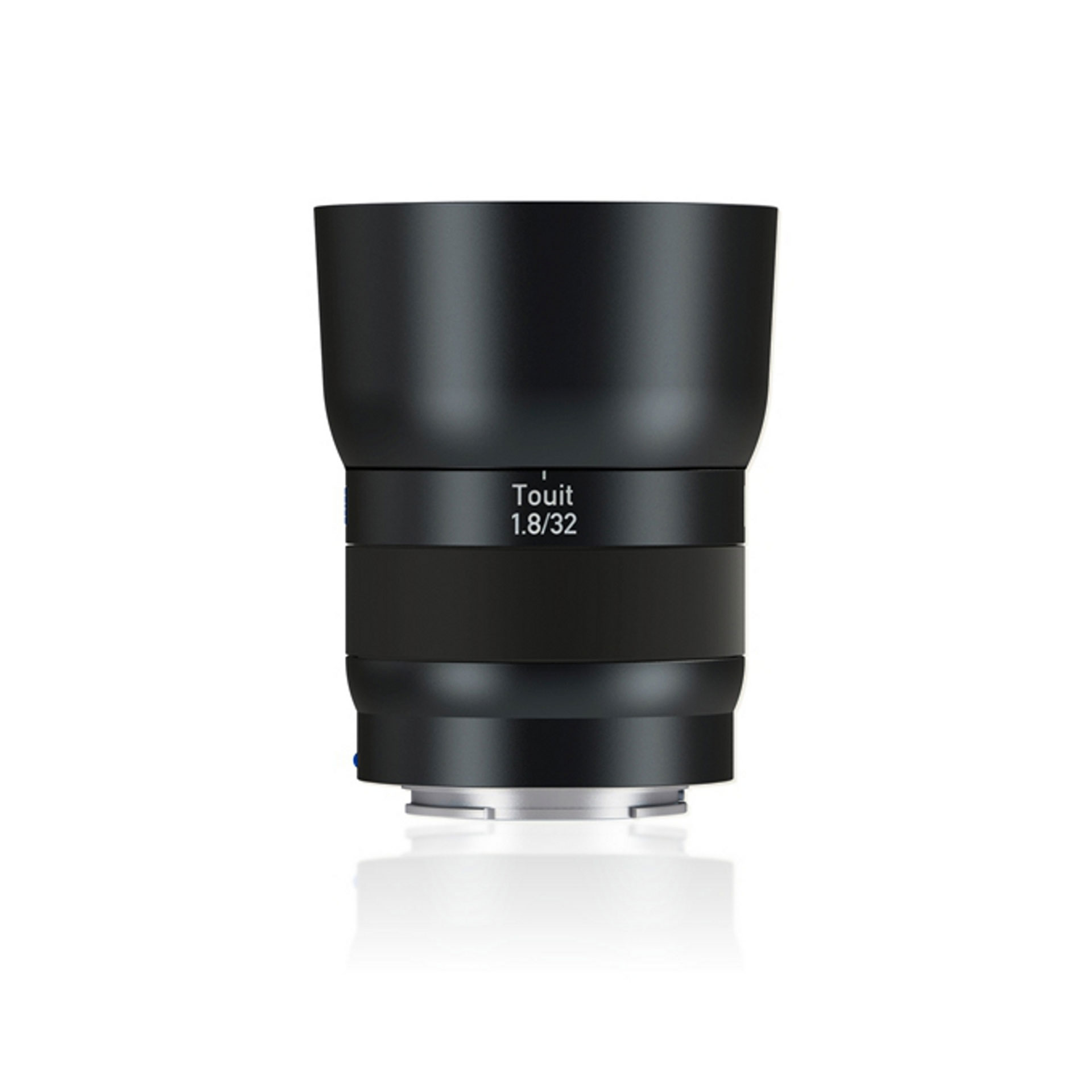

  • Black ZEISS Touit 1.8/32 camera lens with X-mount, shown standing upright on a white background.
    Touit 1.8/32

         拍摄距离:
    0.30 m (11.81") – ∞
    自由工作距离:
    0.23 m (9.06") – ∞
    重量:
    E: 200 g (0.44 lbs)
    X: 210 g (0.46 lbs)

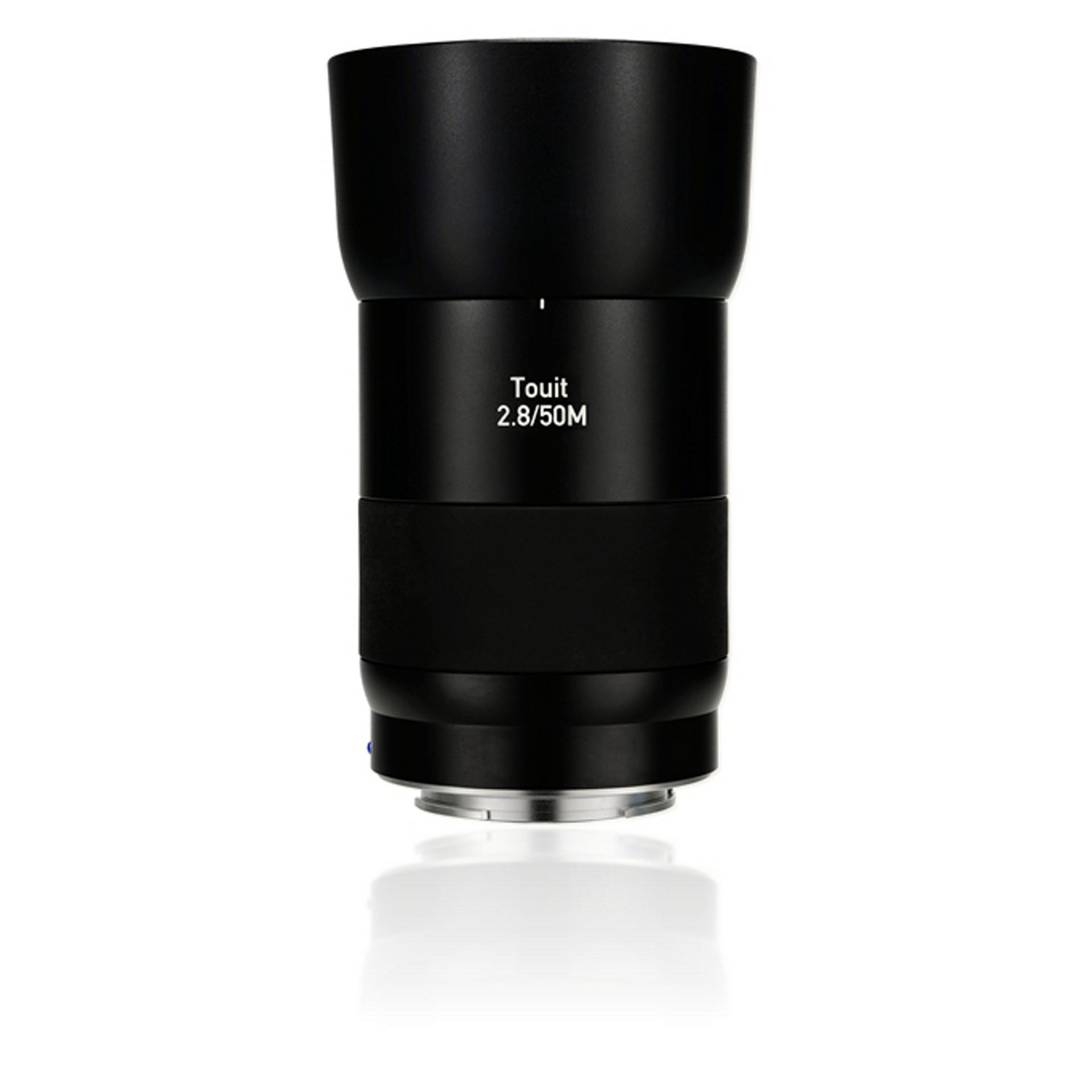

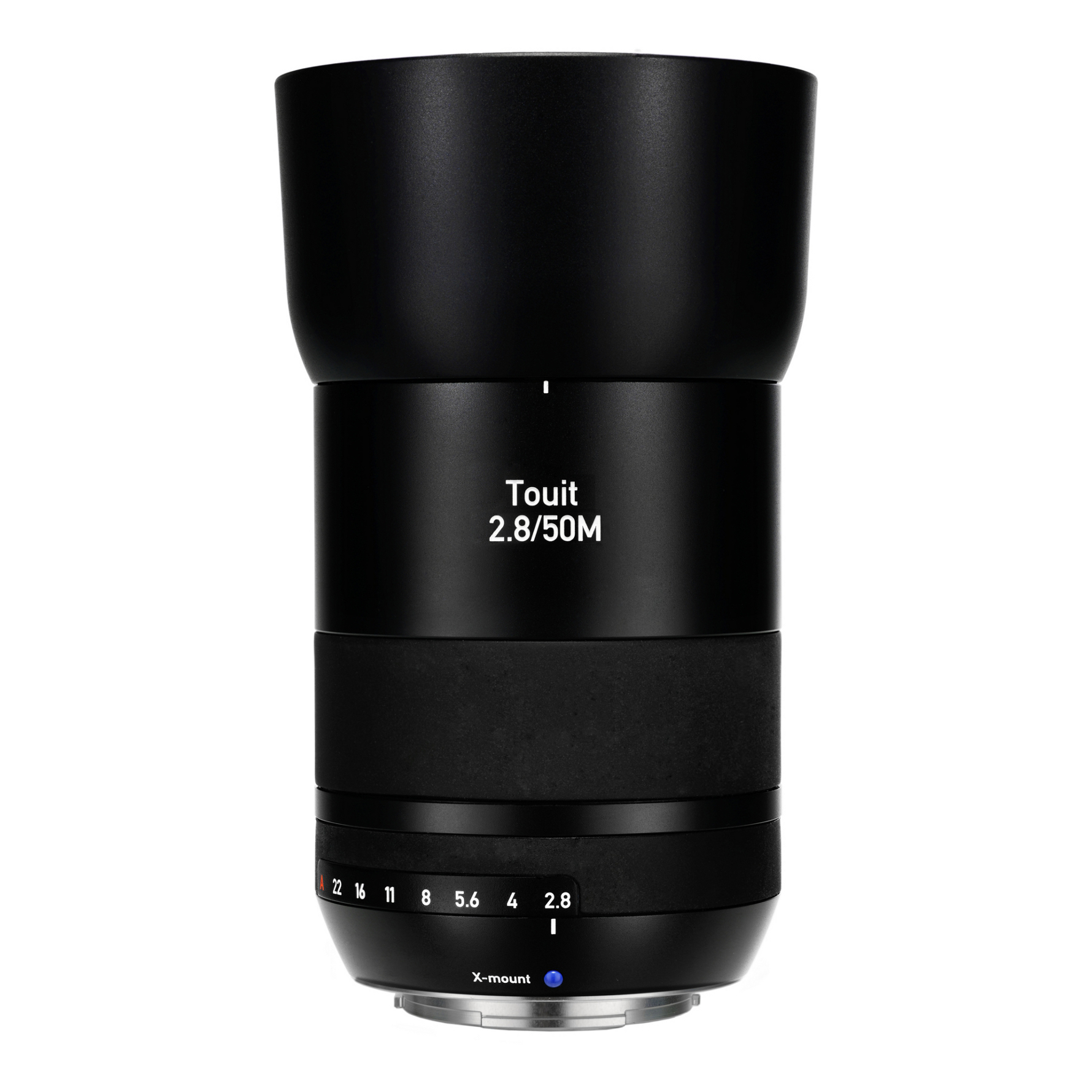

  • Black ZEISS Touit 2.8/50M camera lens displayed on a white background.
    Touit 2.8/50M

         拍摄距离:
    0.15 m (6.02") – ∞
    自由工作距离:
    0.05 m (1.97") – ∞
    重量:
    E: 290 g (0.64 lbs)
    X: 290 g (0.64 lbs)
ZEISS Touit Lenses
查找经销商
Person holding a professional camera equipped with a ZEISS lens in an outdoor setting.

安静且非常流畅的自动对焦操作

自动对焦系统需要可超精准地移动特定镜组。 根据被移动镜片（镜组）的重量来选用不同类型的电机。Touit 镜头对焦系统的设计未对其光学部分造成影响，并能保证平稳且顺畅的自动对焦。1

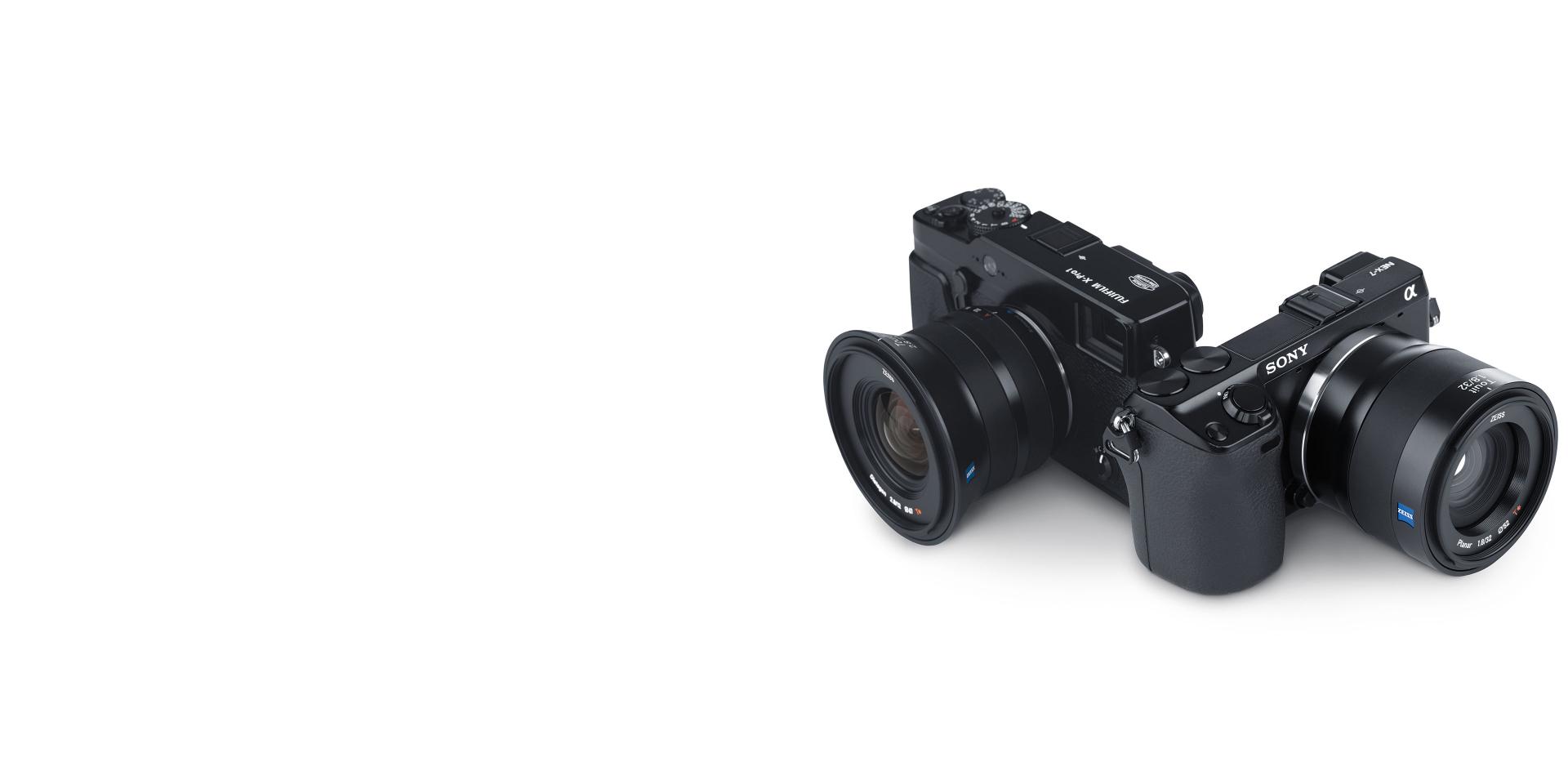

Two black mirrorless cameras equipped with ZEISS lenses are positioned side by side on a white background.

完美兼容

蔡司 Touit 镜头专为配有 E 卡口的索尼 Alpha 系列和富士 X 系列 APS-C 画幅相机设计开发。因此，该系列镜头完全兼容和支持所有相机功能，包括自动对焦。

Stone corridor with a series of arches and columns, illuminated by soft ground lighting.
Ralph Koch

几乎毫无失真的光学特性

广阔的视野与非凡的视角——卡尔蔡司镜头为您开拓全新的创意空间。失真会破坏影像结构，如果直线未能经过图像中心，在照片中将呈现为曲线。通过在所有焦距下的复杂视觉设计，这一令人懊恼的问题在较大程度上获得解决。

Snow-covered mountain slope with rippled texture illuminated by the setting sun behind distant peaks.
Bernd Ritschel

蔡司T*镀膜

即使在非常不利的光线条件下，拥有卡尔·蔡司独有 T* 抗反射涂层镀膜的光学镜头依然可以拍摄出色彩艳丽明亮的图片。我们独创的真空镀膜技术，将一层极度稀薄而透明的物料，采用真空淀积的方法及准确控制厚度技术涂镀在镜头表面，可有效消除镜片的反射光。这一镀膜技术由卡尔·蔡司公司于二十世纪三十年代首次应用。

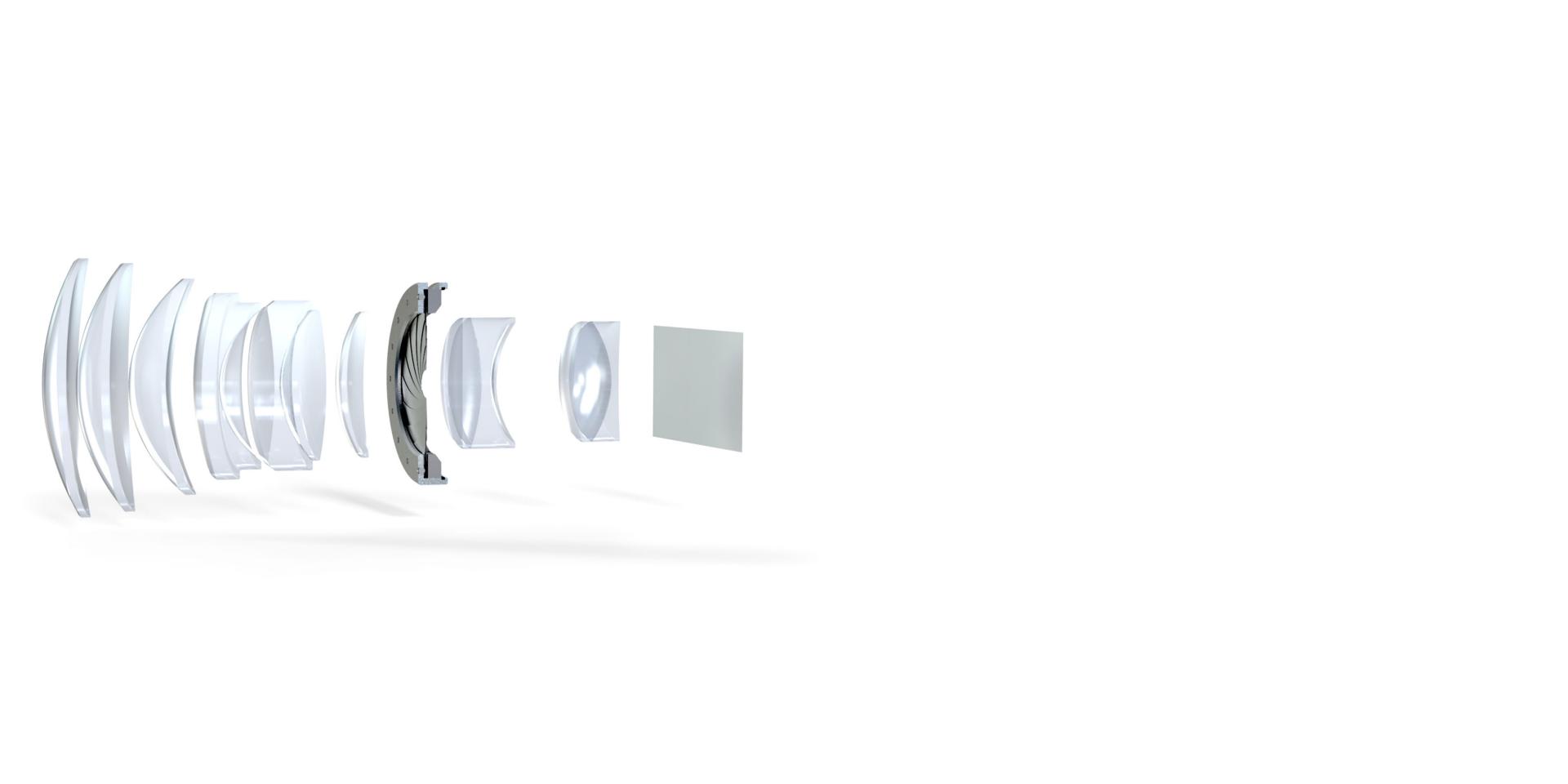

Exploded view of a ZEISS camera lens assembly showing individual optical lens elements aligned in sequence.

浮动镜片设计

先进的摄影技术和高分辨率数字图像传感器对镜头的要求越来越高。由于各个焦段的卡尔·蔡司镜头均采用了现代浮动镜片补偿像差技术，故而可以保证提供高超的影像素质。这是一种通过改变镜头内各个镜片或镜组的轴向距离，局部调整镜片在调焦时向像差小的方向移动从而使光线偏差和影像变形得到精细矫正的技术。精密的机械设计与制造、复杂的镜片磨制和严密的安装工艺是实施浮动镜片设计的保障，而这几项工艺恰好是卡尔·蔡司的专长。

定格瞬间

蔡司Touit镜头
查看所有
Captured Moments

技术参数

蔡司Touit镜头

  • Focal Length

    12 mm

    Aperture Range

    f/2.8 – f/22

    Camera Mount

    Sony E-Mount2 | Fujifilm X-Mount2

    Format Compatibility

    APS-C

    Focusing Range

    0.18 m (7.01") – ∞

    Free Working Distance

    0.10 m (3.94") – ∞

    Angular Field3 (diag. horiz. vert.)

    99° | 89° | 66°

    Diameter of Image Field

    28 mm (1.11")

    Coverage at Close Range (MOD)4

    220 x 144 mm (8.66 x 5.67")

    Image Ratio at Minimum Object Distance

    1 : 9

    Lens Elements | Groups

    11 | 8

    Flange Focal Distance

    E: 18 mm (0.71") | X: 18 mm (0.70")

    Entrance Pupil Position (Front of Image Plane)

    62 mm (2.42")

    Autofocus

    +

    Image Stabilization

    –

    Filter Thread

    M67 x 0.75

    Rotation Angle of Focusing Ring

    270°

    Diameter max.

    E: 88 mm (3.46") | X: 88 mm (3.46")

    Diameter of Focusing Ring

    E: 65 mm (2.56") | X: 65 mm (2.56")

    Length (With Lens Caps)

    E: 81 mm (3.19") | X: 86 mm (3.39")

    Length (Without Lens Caps)

    E: 68 mm (2.68") | X: 68 mm (2.68")

    Weight

    E: 260 g (0.57 lbs) | X: 270 g (0.60 lbs)

  • Focal Length

    32 mm

    Aperture Range

    f/1.8 – f/22

    Camera Mount

    Sony E-Mount2 | Fujifilm X-Mount2

    Format Compatibility

    APS-C

    Focusing Range

    0.30 m (11.81") – ∞

    Free Working Distance

    0.23 m (9.06") – ∞

    Angular Field3 (diag. horiz. vert.)

    48° | 40° | 29°

    Diameter of Image Field

    28 mm (1.11")

    Coverage at Close Range (MOD)4

    170 x 111 mm (6.69 x 4.37")

    Image Ratio at Minimum Object Distance

    1 : 9

    Lens Elements | Groups

    8 | 5

    Flange Focal Distance

    E: 18 mm (0.71") | X: 18 mm (0.70")

    Entrance Pupil Position (Front of Image Plane)

    47 mm (1.84")

    Autofocus

    +

    Image Stabilization

    –

    Filter Thread

    M52 x 0.75

    Rotation Angle of Focusing Ring

    270°

    Diameter max.

    E: 75 mm (2.95") | X: 75 mm (2.95")

    Diameter of Focusing Ring

    E: 65 mm (2.56") | X: 65 mm (2.56")

    Length (With Lens Caps)

    E: 72 mm (2.83") | X: 76 mm (2.99")

    Length (Without Lens Caps)

    E: 60 mm (2.36") | X: 58 mm (2.28")

    Weight

    E: 200 g (0.44 lbs) | X: 210 g (0.46 lbs)

  • Focal Length

    50 mm

    Aperture Range

    f/2.8 – f/22

    Camera Mount

    Sony E-Mount2 | Fujifilm X-Mount2

    Format Compatibility

    APS-C

    Focusing Range

    0.15 m (6.02") – ∞

    Free Working Distance

    0.05 m (1.97") – ∞

    Angular Field3 (diag. horiz. vert.)

    31° | 26° | 18°

    Diameter of Image Field

    28 mm (1.11")

    Coverage at Close Range (MOD)4

    24 x 16 mm (0.93 x 0.61")

    Image Ratio at Minimum Object Distance

    1 : 1

    Lens Elements | Groups

    14 | 11

    Flange Focal Distance

    E: 18 mm (0.71") | X: 18 mm (0.70")

    Entrance Pupil Position (Front of Image Plane)

    67 mm (2.67")

    Autofocus

    +

    Image Stabilization

    –

    Filter Thread

    M52 x 0.75

    Rotation Angle of Focusing Ring

    720°

    Diameter max.

    E: 75 mm (2.95") | X: 75 mm (2.95")

    Diameter of Focusing Ring

    E: 65 mm (2.56") | X: 65 mm (2.56")

    Length (With Lens Caps)

    E: 104 mm (4.09") | X: 108 mm (4.25")

    Length (Without Lens Caps)

    E: 91 mm (3.58") | X: 91 mm (3.58")

    Weight

    E: 290 g (0.64 lbs) | X: 290 g (0.64 lbs)

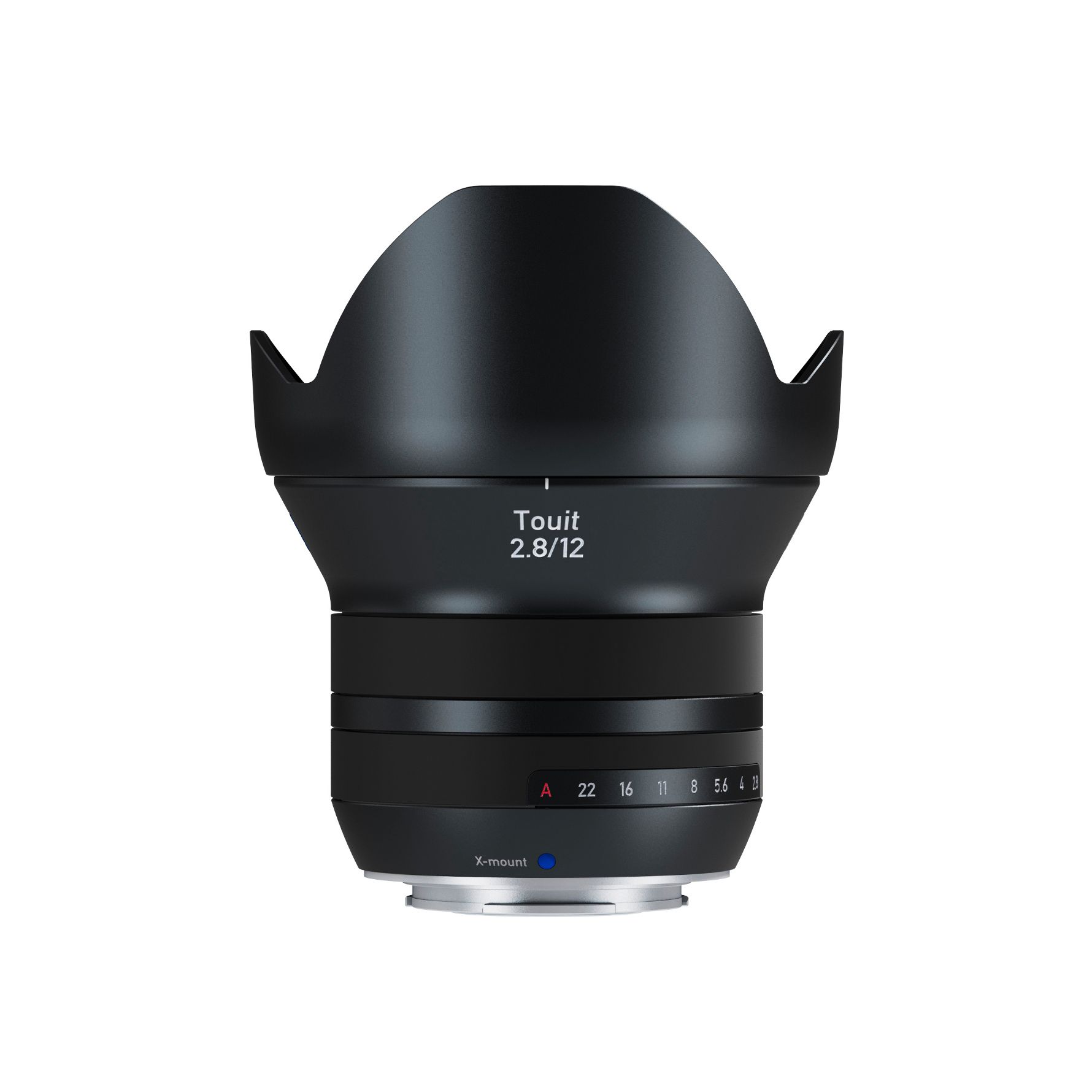

  • Wide-angle ZEISS Touit 2.8/12 camera lens with X-mount, featuring a large lens hood and manual aperture ring.

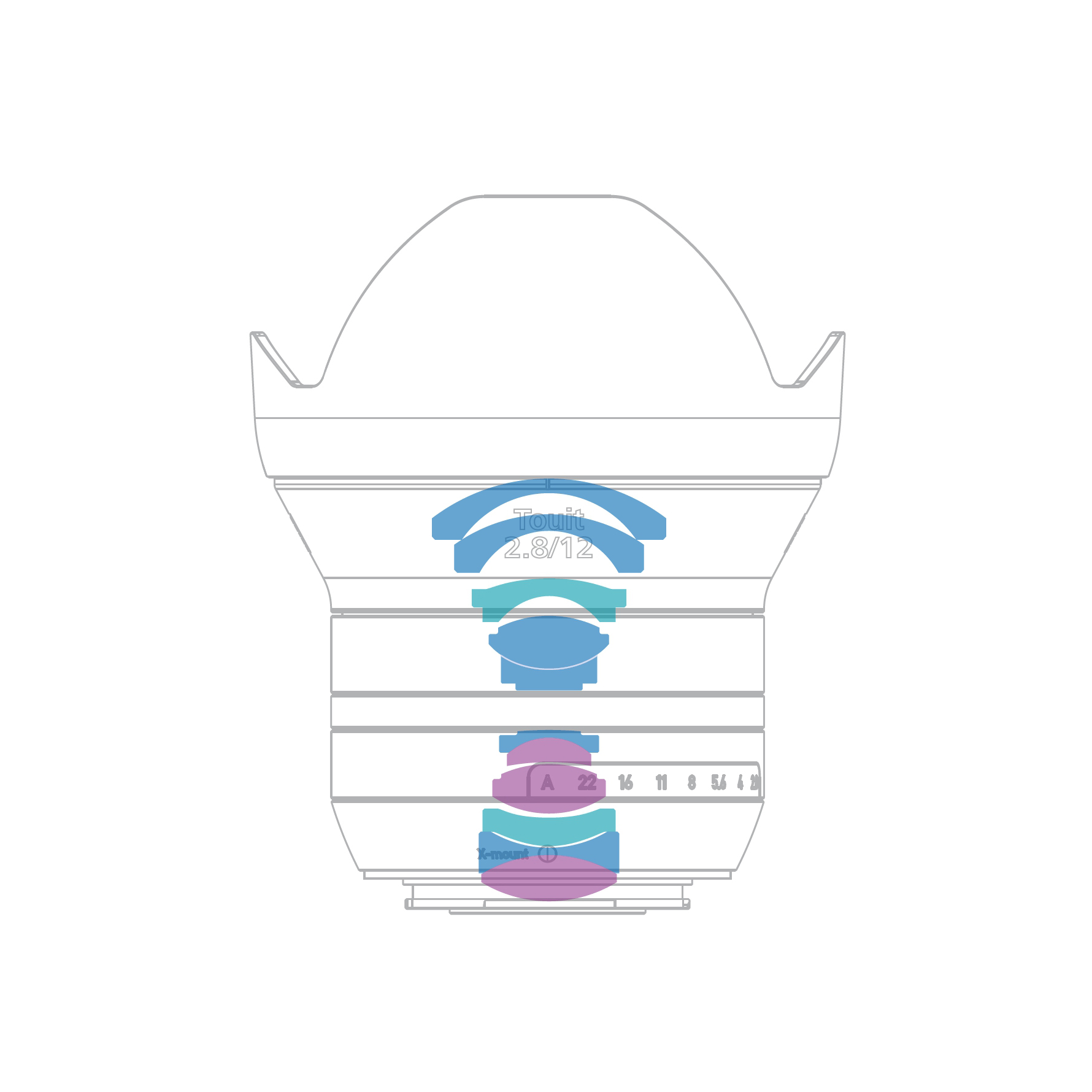

    Cross-sectional illustration of a ZEISS camera lens showing internal optical elements and aperture blades.

    蔡司Touit 2.8/12

    最初开发单反相机时，由于镜盒（后镜头元件和胶片平面之间的距离必须远大于焦距）的原因，短焦距需要较长的后对焦距离，而 Distagon 镜头（逆焦式设计）因其优化的光程非常适用于无反光镜系统的相机。即使具有较长的焦距，高性能 Distagon 光学设计也始终能够轻松的良好校正图像的角落和极低的场曲率。

    ⬛ Distagon 设计

    🟩 非球面光学表面的镜头

    🟪 由带有异常部分色散的特殊玻璃制成的镜头

    ⬛ “浮动元素”设计

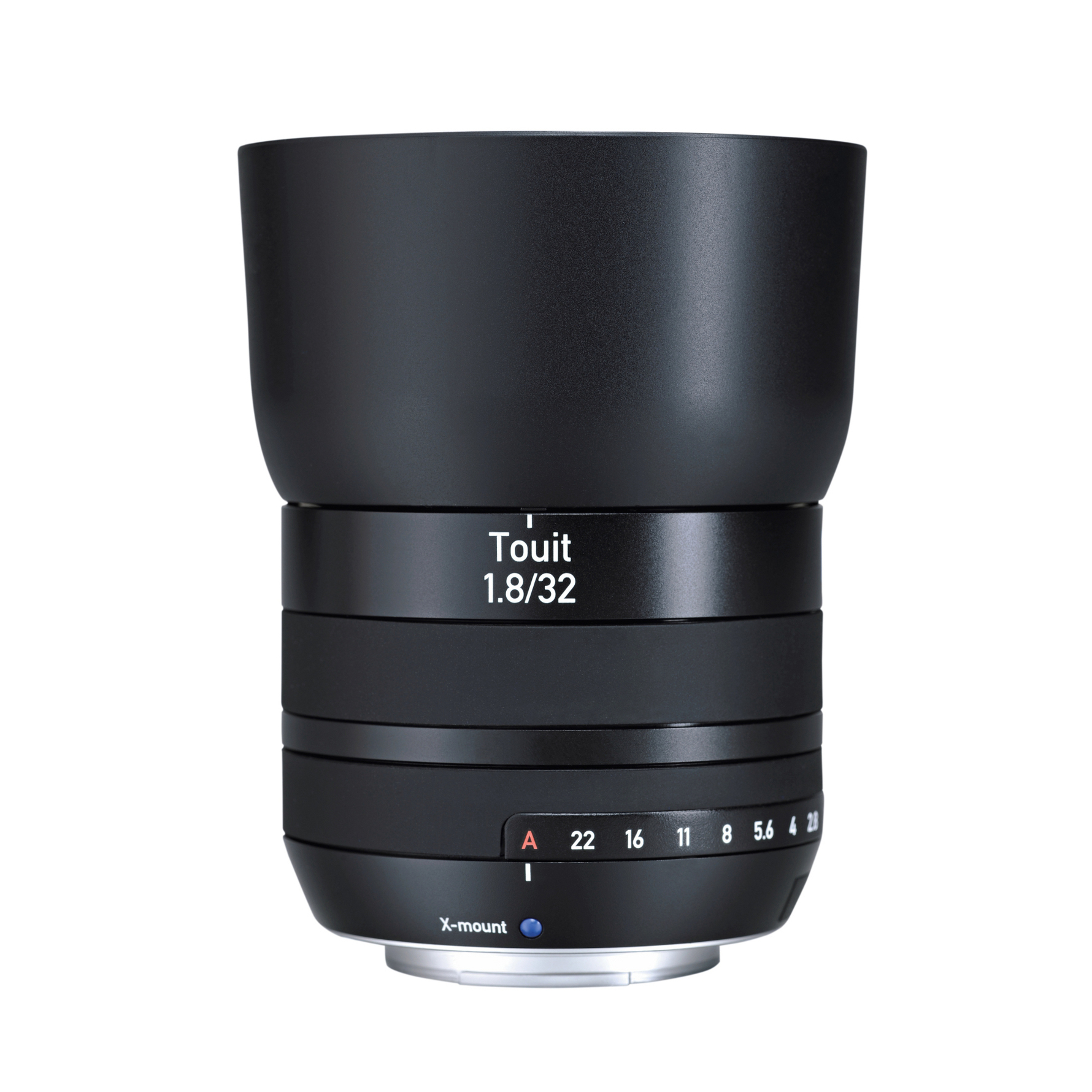

  • Black ZEISS Touit 1.8/32 camera lens with aperture and focus rings, shown front-facing on a white background.

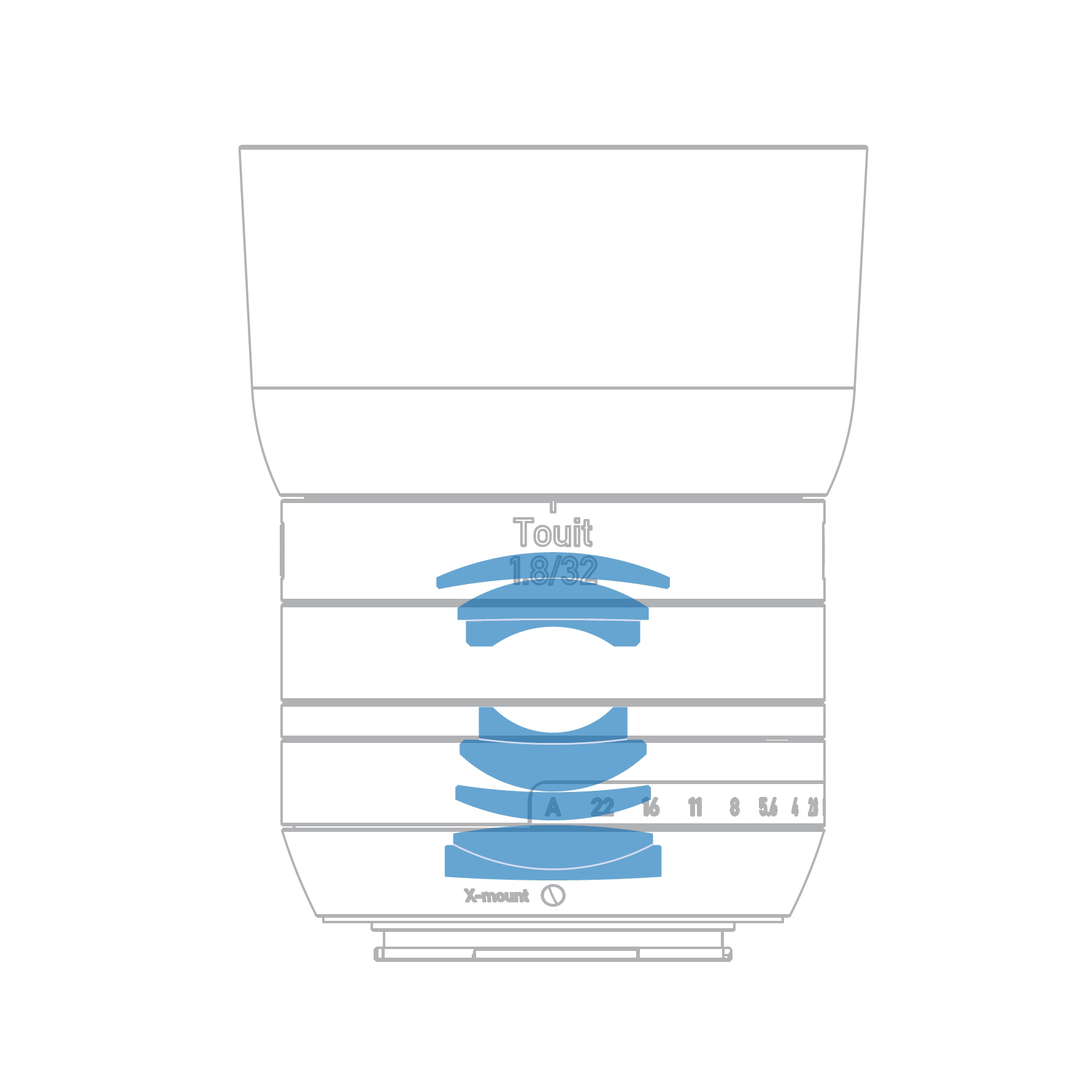

    Technical illustration of a ZEISS Touit lens showing internal optical elements and X-mount compatibility.

    蔡司Touit 1.8/32

    Planar 镜头设计在任何时代都是最为成功的 —— 并且是仿制最多的镜头。久经考验的六镜头基础型号经过修改，确保了其达到先进传感器所需要的高成像质量。使用有 Planar 光学设计的镜头，可以实现跨大范围图像尺寸的一致性能 —— 这对通用微距镜头而言是至关重要的要求。

    ⬛ Planar 设计

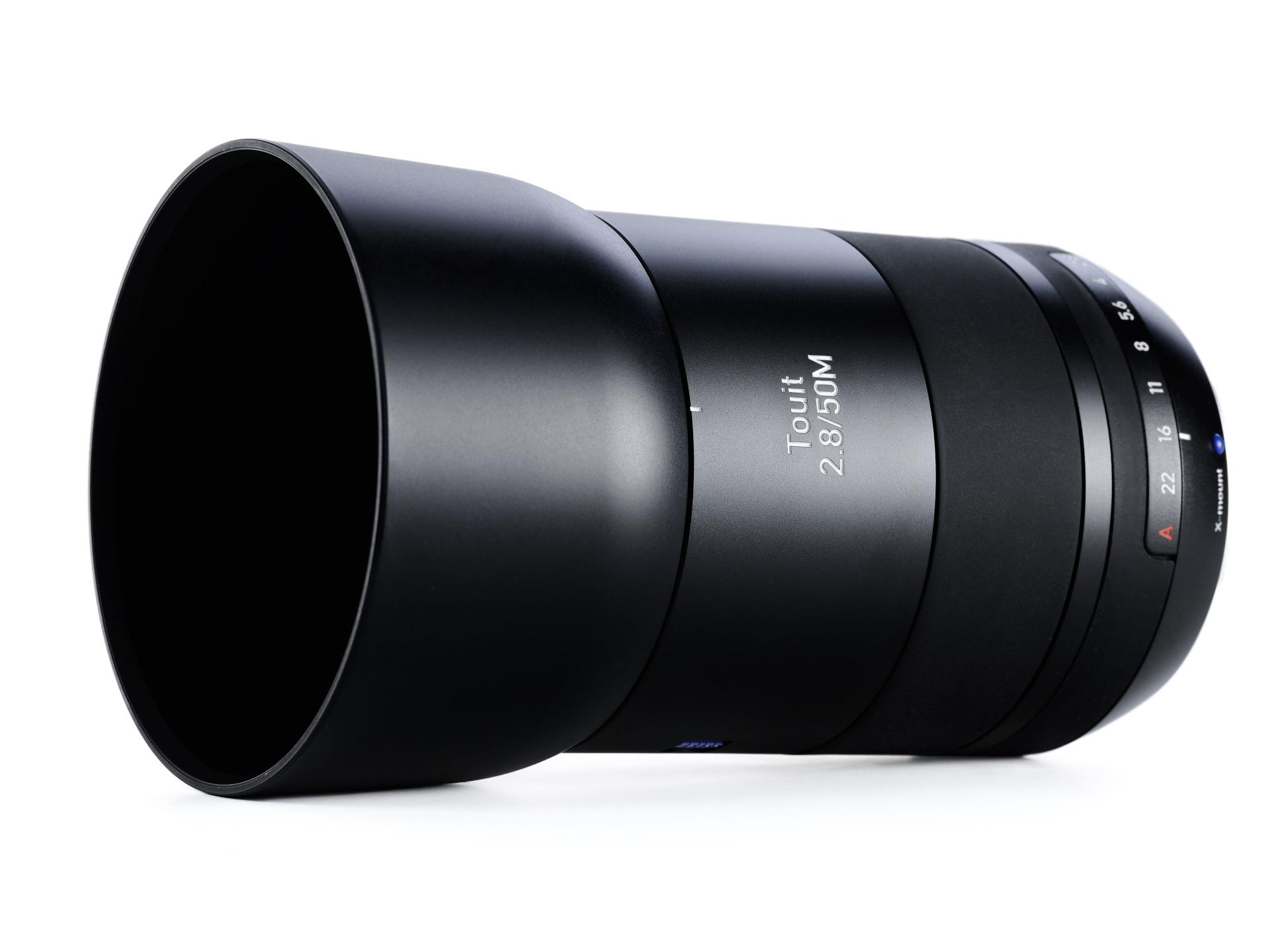

  • ZEISS Touit 2.8/50M camera lens with X-mount, shown in a black matte finish with labeled aperture and focus rings.

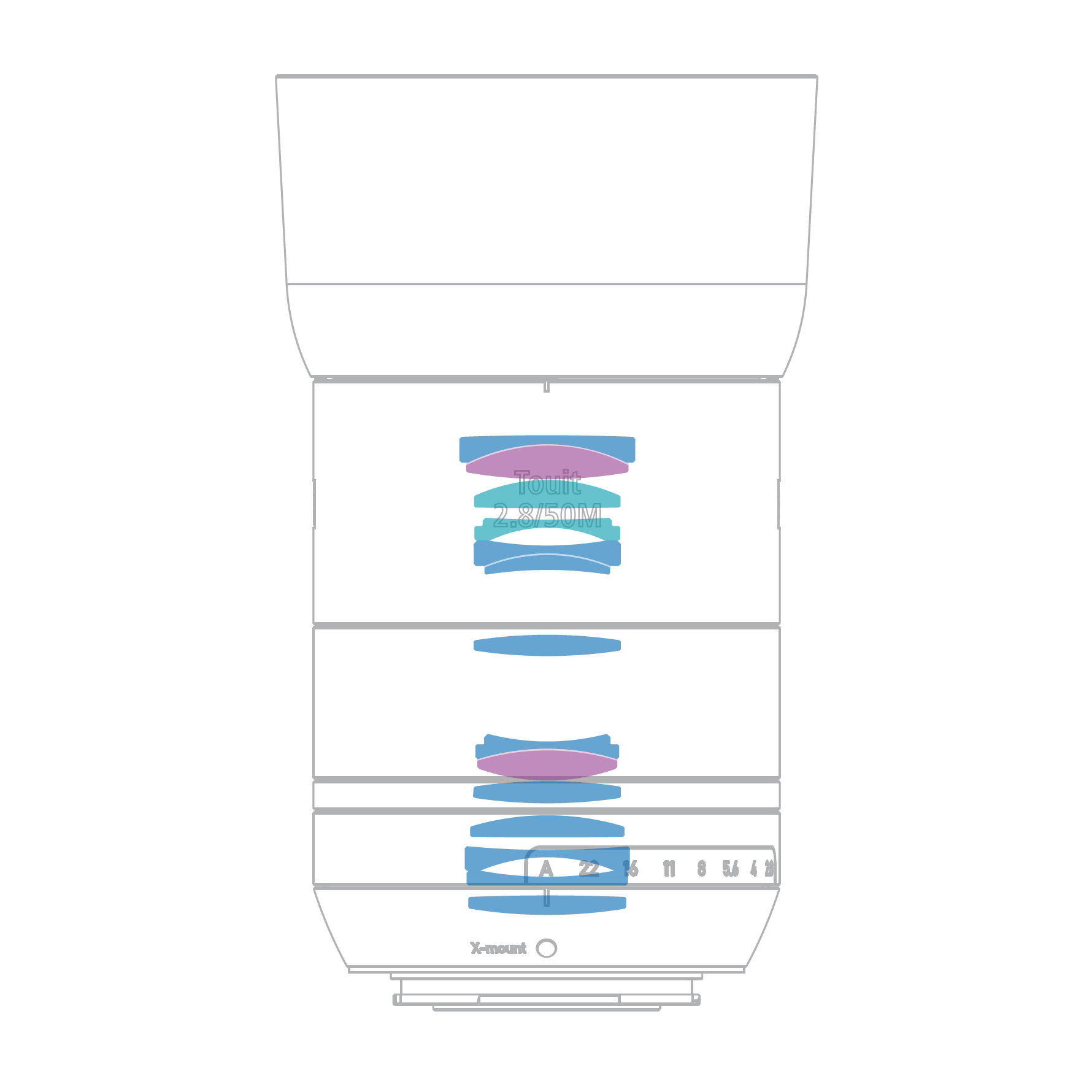

    Cross-sectional diagram of a ZEISS camera lens showing internal optical elements and their arrangement.

    蔡司Touit 2.8/50M

    Planar 镜头设计在任何时代都是最为成功的 —— 并且是仿制最多的镜头。久经考验的六镜头基础型号经过修改，确保了其达到先进传感器所需要的高成像质量。使用有 Planar 光学设计的镜头，可以实现跨大范围图像尺寸的一致性能 —— 这对通用微距镜头而言是至关重要的要求。

    ⬛ Planar 设计

    🟩 非球面光学表面的镜头

    🟪 由带有异常部分色散的特殊玻璃制成的镜头

    ⬛ “浮动元素”设计

ZEISS camera cleaning kit including a lens cleaning brush, air blower, cleaning spray, microfiber cloths, and a black and blue carrying pouch with ZEISS branding.

蔡司摄影镜头配件

量身定制，满足您的需求。

拍摄照片时，良好的成像并不是唯一的考量。捕捉特殊的体验也起到了关键作用。蔡司的相机镜头凭借其可靠的功能，确保摄影师能完全专注于成像和构图，并为其创造力赋予生命。为了使这种体验趋近完美，蔡司现在提供定制的配件，以满足摄影师的高品质需求。

评测

蔡司Touit镜头

ephotozine.com

"Famed for the quality of their lenses for 35mm and medium format cameras, Zeiss has branched out into creating lenses..."

aboutphotography.com

"The traditional method of shooting close-up photographs is with a macro lens mounted on the camera, and, no doubt about it..."

briansmith.com

"The promise of mirror-less cameras is lightweight and compact size compared to their bulkier heavier DSLR brethren..."

fstoppers.com

"Carl Zeiss (Now just named Zeiss) has always been considered the premium brand for lenses in the photography industry..."

diglloyd.com

"It appears that one can get very useful ~15.4mm equivalent field of view on the full frame Sony A7R with the Touit 12mm f/2.8 Distagon..."

thephoblographer.com

"We’re happy to say that the new 50mm f2.8 Touit lens is right now in the house and we’re currently underway with testing it..."

奖项

蔡司Touit镜头
    • Award badge showing "DIGITAL PHOTO" and "Practical Photography" with the text "Gear of the Year 2013 Winner" on a black and gold background.

    • Red and white "iF product design award 2013" logo displayed in a square format.

    • Gold 2013 iF Product Design Award logo with the text "product design award 2013 GOLD" on a white background.

    • Red Dot Design Award winner 2013 logo with a red swirl icon and text indicating the award.

    • Award badge from the magazine PHOTOGRAPHIE showing a "Kauf-Tipp" recommendation for issues 1-2 of 2014.

    • Red and white "iF product design award 2013" logo displayed in a square format.

    • Gold 2013 iF Product Design Award logo with the text "product design award 2013 GOLD" on a white background.

    • Red Dot Design Award winner 2013 logo with a red swirl icon and text indicating the award.

    • Award badge from FOTOHITS magazine, issue 9/2014, rating ZEISS fixed focal length lenses for Fujifilm X cameras as "EXZELLENT" in a lens test.

A ZEISS camera lens is displayed next to an uncapped silver fountain pen on a white background.
A ZEISS camera lens is displayed next to an uncapped silver fountain pen on a white background.

产品注册

获得延长保修。

自购买之日起，蔡司对所有摄影镜头授予两年的保修期。经过蔡司在线注册之后，该保修期还可延长为三年。尽管蔡司保修延长计划已在很多国家适用，但只能在该产品购买的国家/地区进行保修期内的索赔。
