A photographer in a dark jacket is examining a camera equipped with a ZEISS lens in an urban outdoor setting.
蔡司摄影

蔡司 Batis 镜头

驾驭各种场景。

蔡司 Batis 自动对焦镜头专为索尼全画幅无反相机量身打造，具备迅捷静音的自动对焦性能、防尘防潮设计，以及可显示距离与景深的尖端 OLED 显示屏。

立即探索更多详情
  • 快速静音自动对焦
  • 耐候防尘
  • 创新的 OLED 显示屏

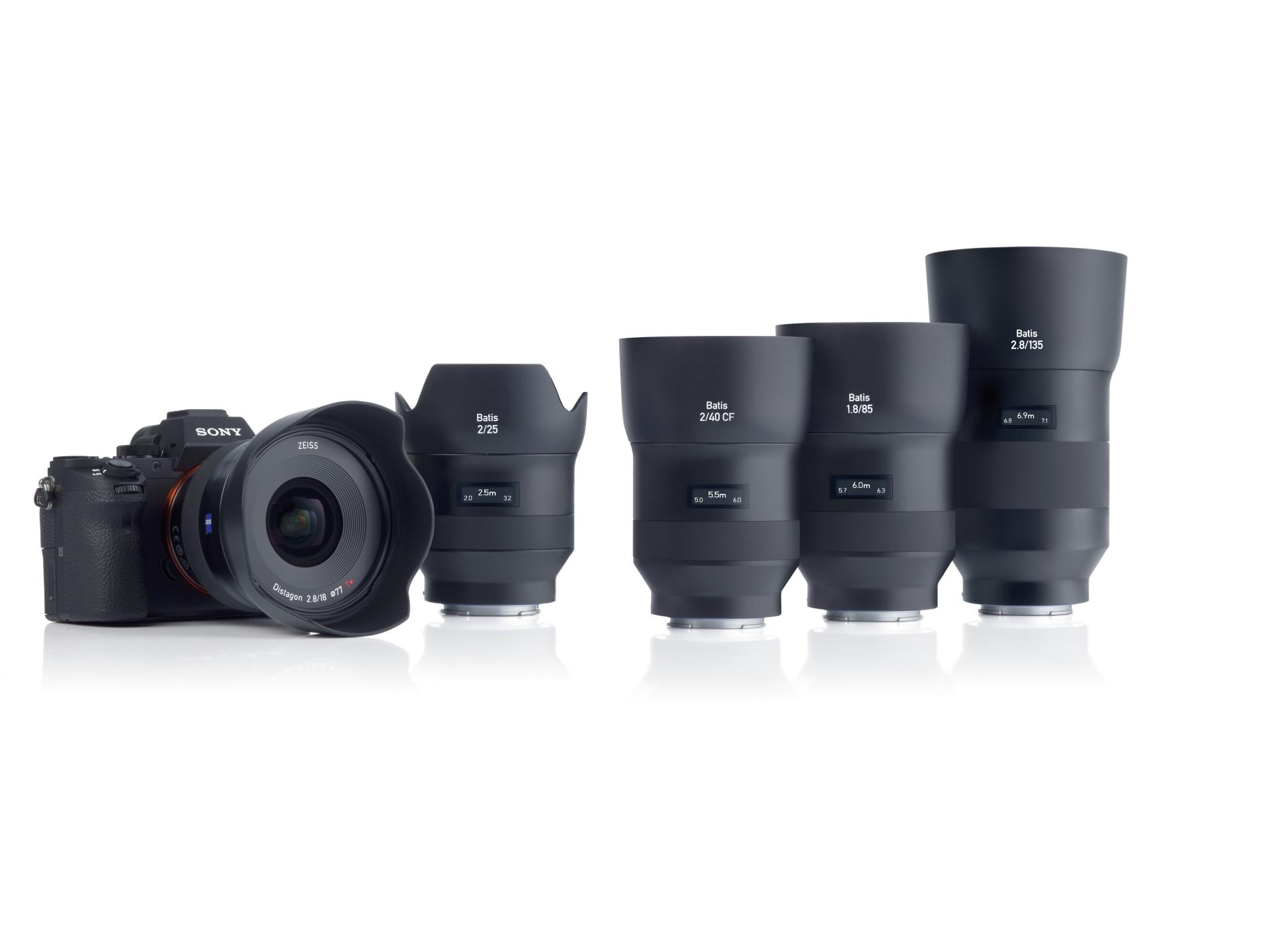

  • A SONY camera is displayed alongside five interchangeable ZEISS Batis lenses arranged in a row on a white background.
    A SONY camera is displayed alongside five interchangeable ZEISS Batis lenses arranged in a row on a white background.

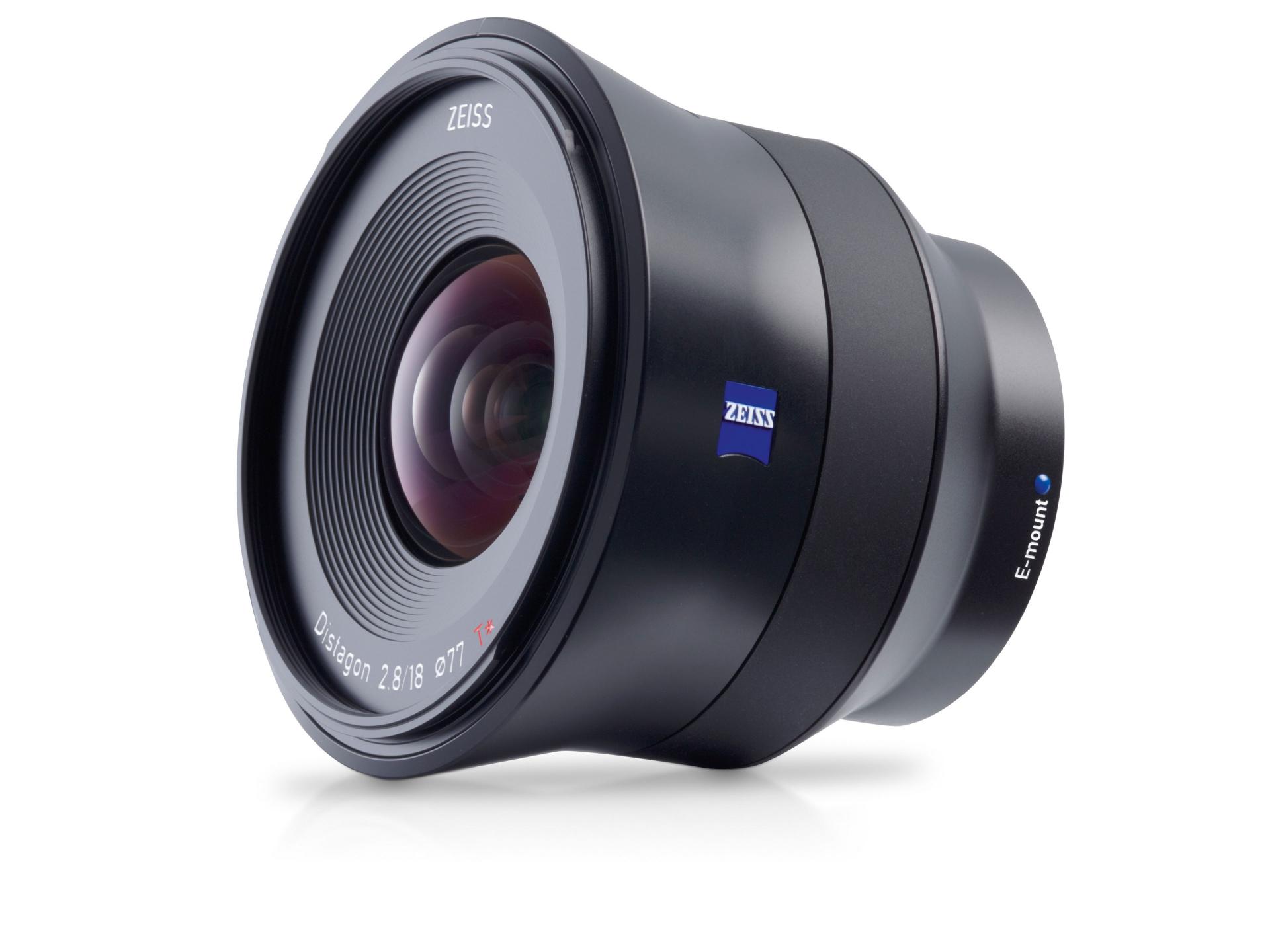

  • Wide-angle ZEISS Batis camera lens with E-mount and prominent ZEISS branding, displayed on a white background.
    Wide-angle ZEISS Batis camera lens with E-mount and prominent ZEISS branding, displayed on a white background.

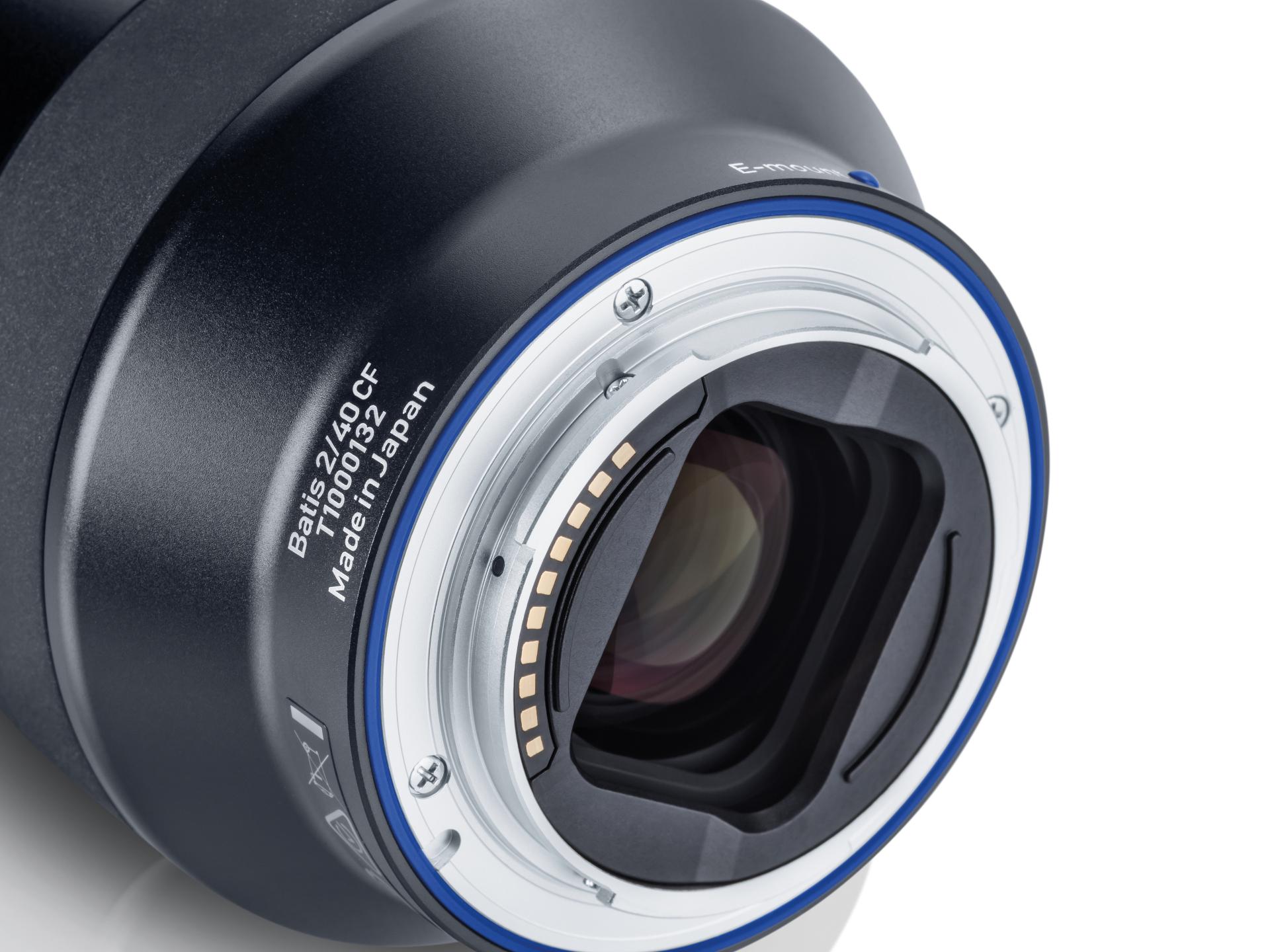

  • Close-up view of the rear mount and electronic contacts of a ZEISS Batis 2/40 CF camera lens.
    Close-up view of the rear mount and electronic contacts of a ZEISS Batis 2/40 CF camera lens.

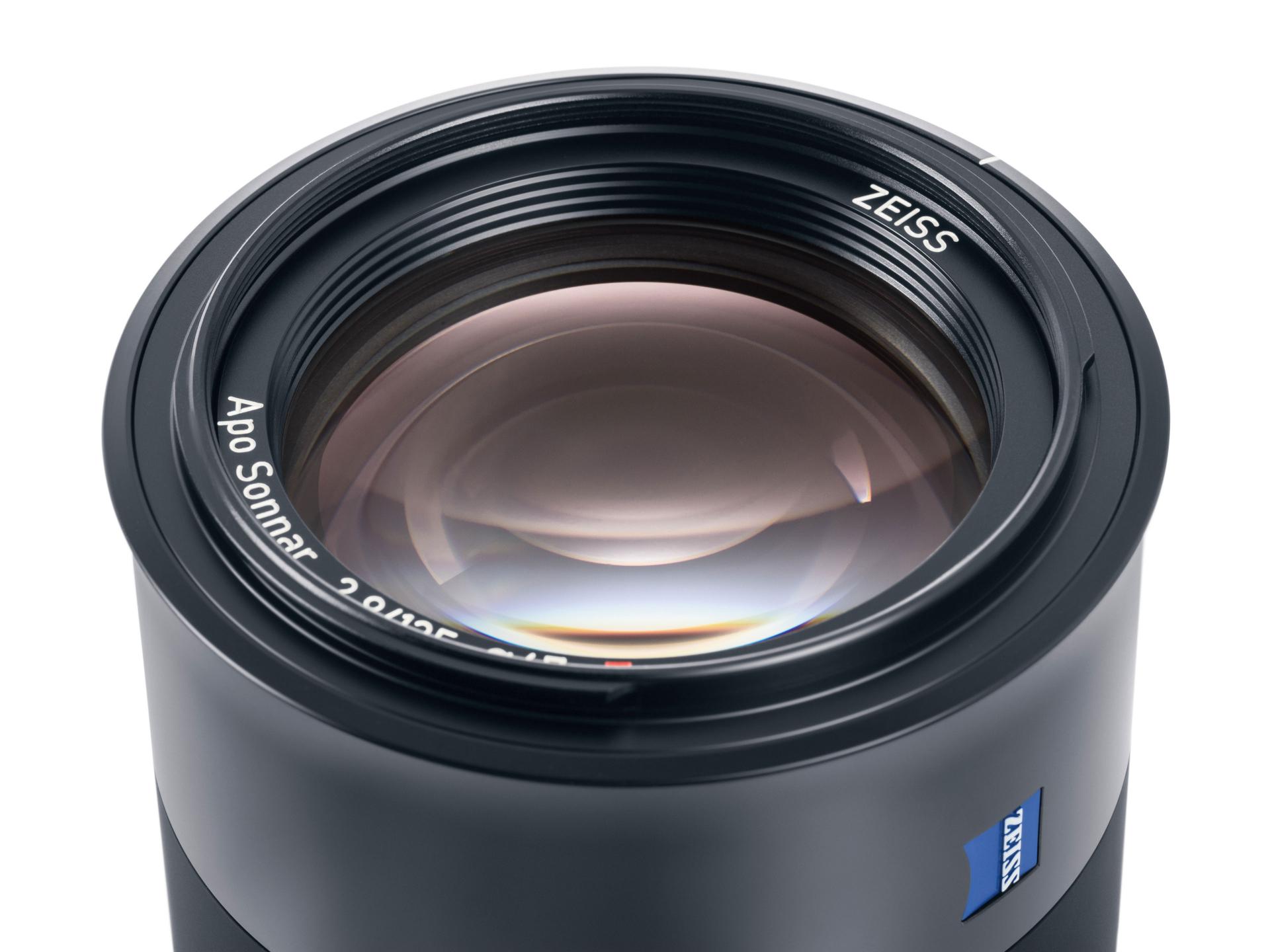

  • Close-up view of a ZEISS Apo Sonnar 2/135 camera lens with visible branding and lens details.
    Close-up view of a ZEISS Apo Sonnar 2/135 camera lens with visible branding and lens details.

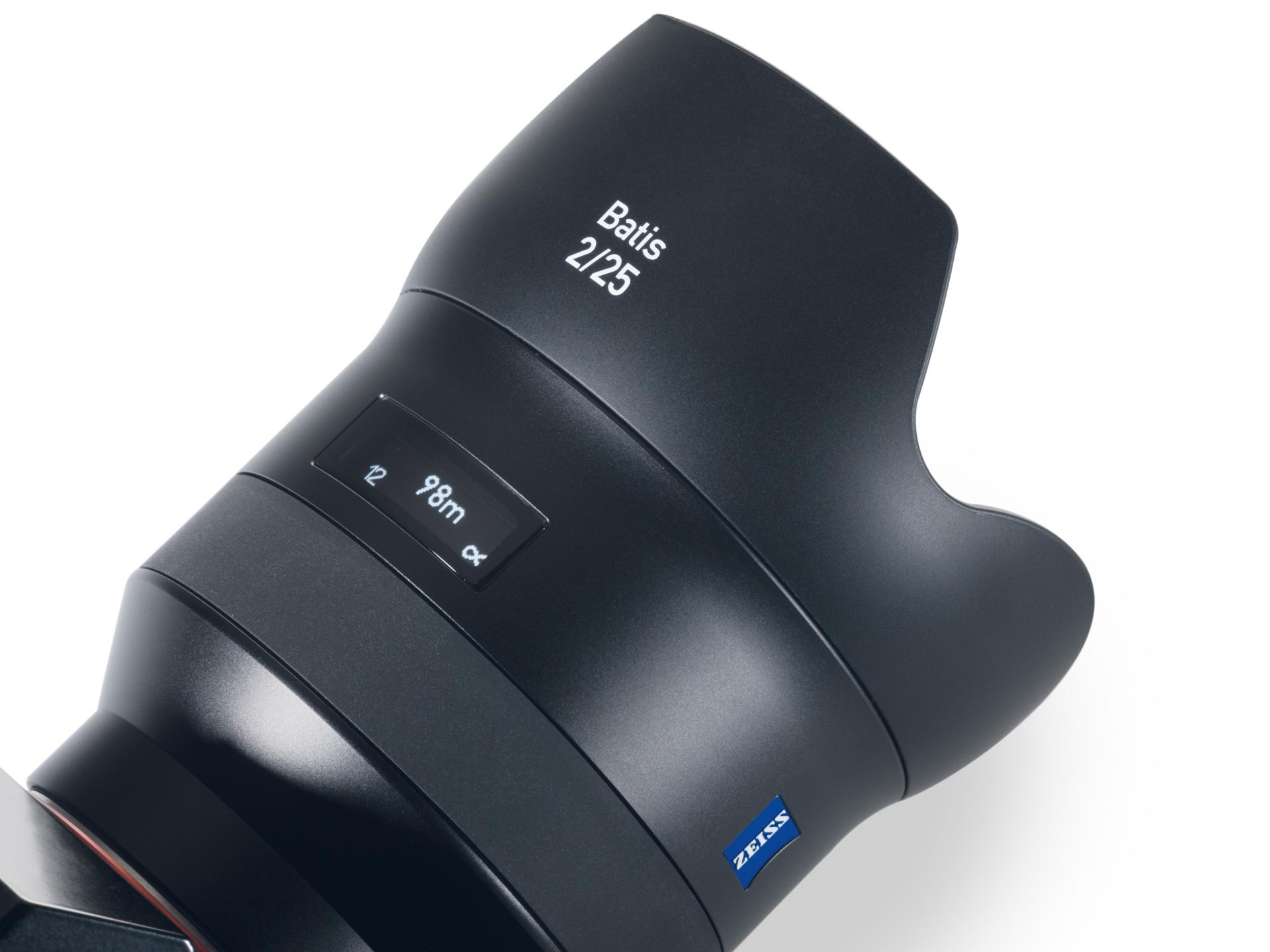

  • Close-up view of a ZEISS Batis 2/25 camera lens featuring a digital display and sleek black finish.
    Close-up view of a ZEISS Batis 2/25 camera lens featuring a digital display and sleek black finish.

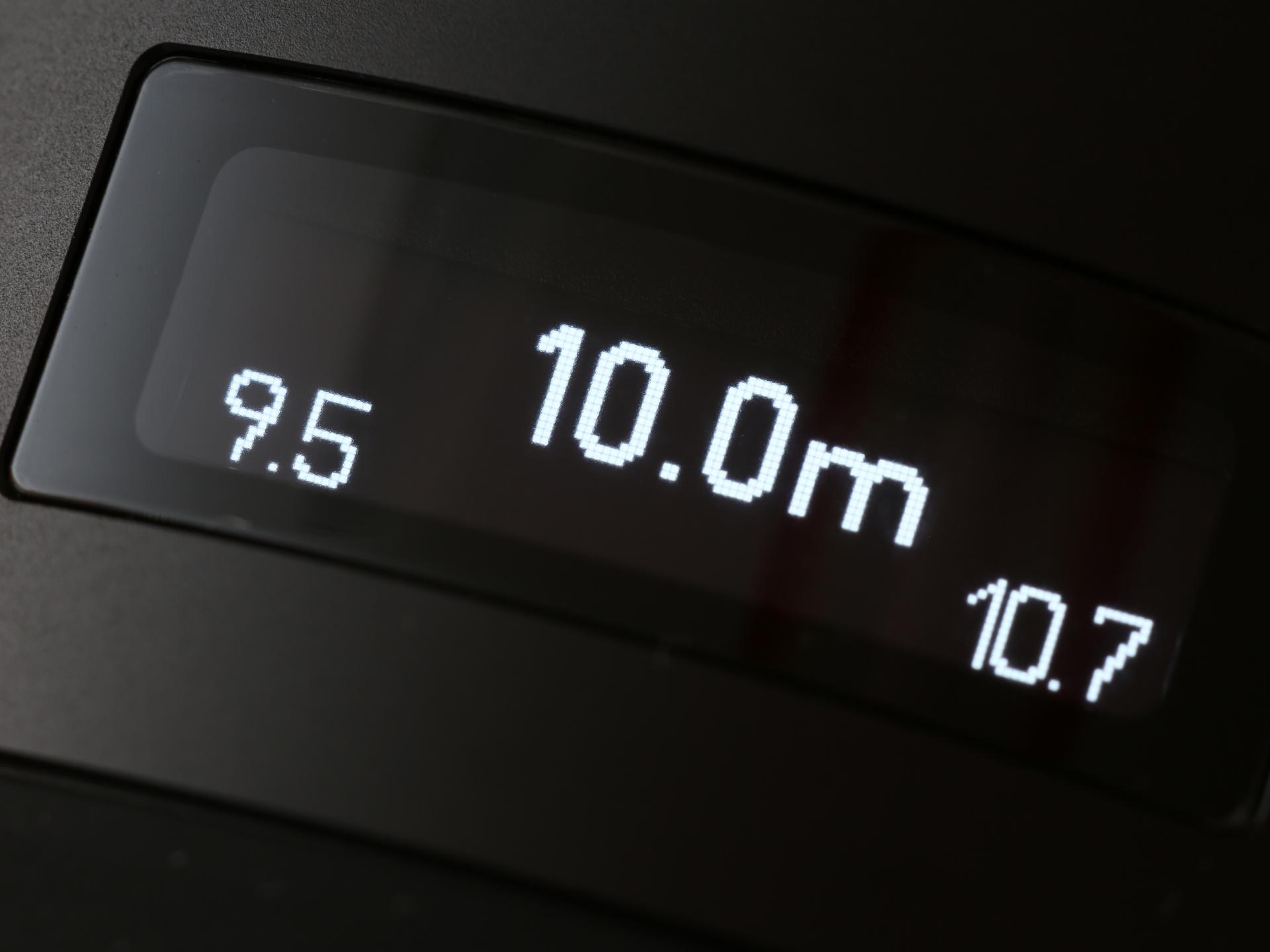

  • Digital display on a ZEISS device showing distance measurements of 9.5, 10.0m, and 10.7.
    Digital display on a ZEISS device showing distance measurements of 9.5, 10.0m, and 10.7.

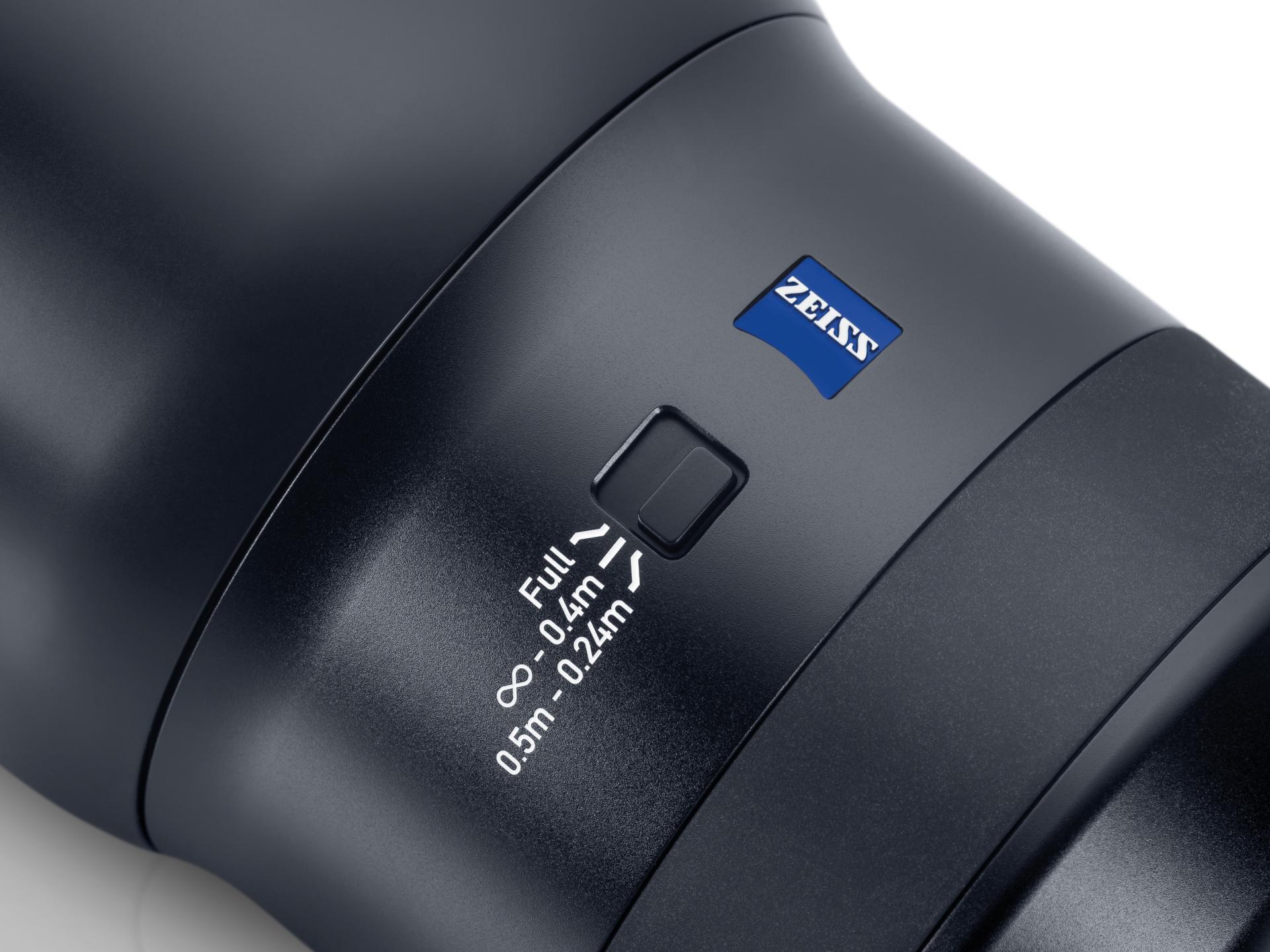

  • Close-up of a ZEISS camera lens showing a focus range switch with distance settings and the ZEISS logo.
    Close-up of a ZEISS camera lens showing a focus range switch with distance settings and the ZEISS logo.

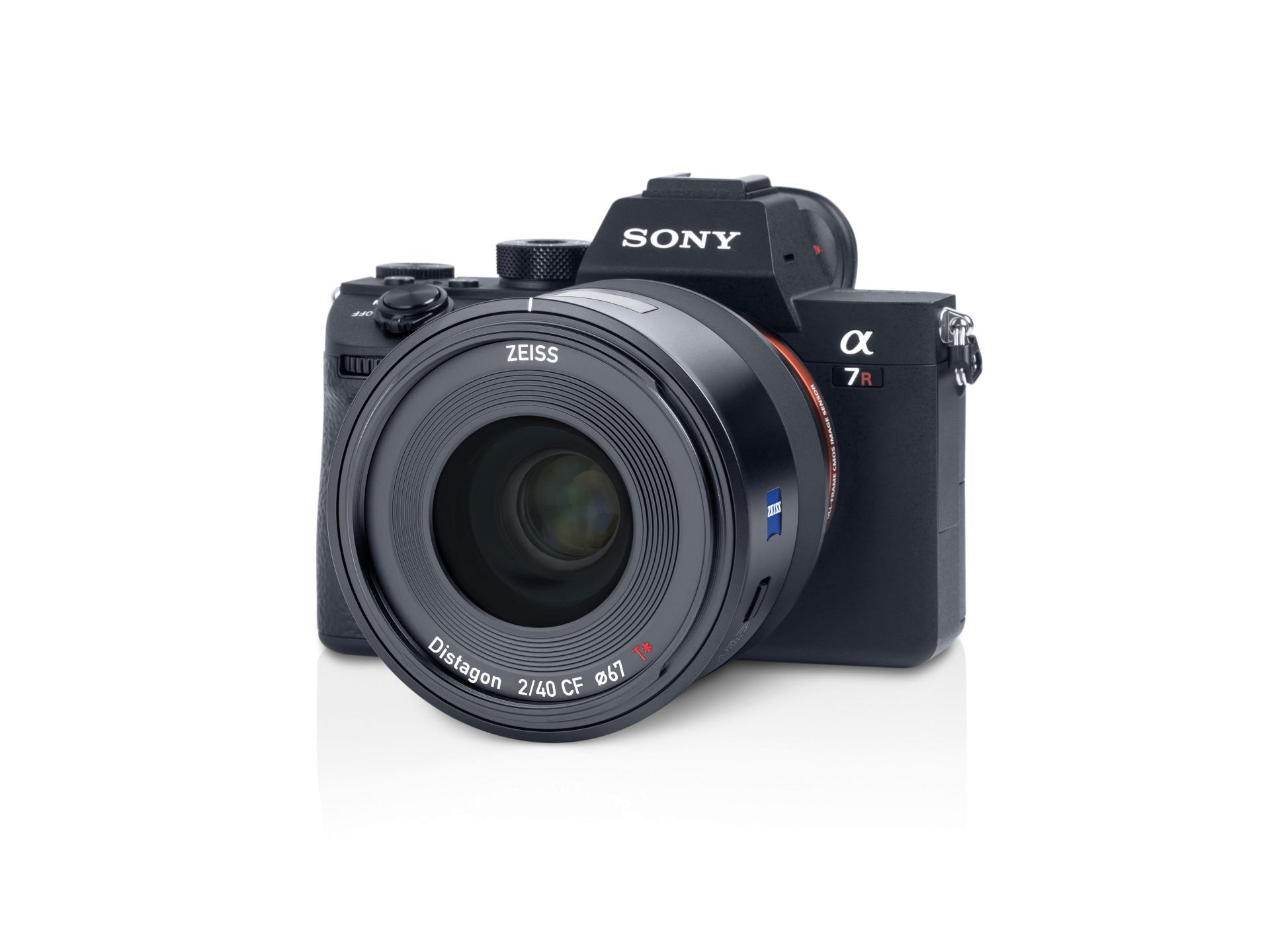

  • A SONY Alpha 7R camera equipped with a ZEISS Distagon 2/40 CF lens.
    A SONY Alpha 7R camera equipped with a ZEISS Distagon 2/40 CF lens.

蔡司Batis自动对焦镜头专为索尼全画幅无反相机研发，与机身完美适配形成紧凑轻量系统，性能毫不妥协。全系镜头兼容所有E卡口机型，不仅具备高速静音自动对焦，更提供防尘防滴保护。创新OLED显示屏可实时显示距离与景深，确保创意摄影中始终精准设定拍摄距离。

蔡司Batis系列高速定焦镜头凭借全新升级的光学设计，呈现无瑕影像。传奇的蔡司T*镀膜结合逾125年的镜头研发经验与尖端技术，确保每张通过蔡司Batis镜头捕捉的影像都彰显非凡的蔡司视觉风格。

迅捷静音的自动对焦系统确保各种场景下精准对焦。紧凑机身内蕴藏卓越成像性能，助您完美应对未来与新一代摄影挑战！


可用型号

蔡司 Batis 镜头

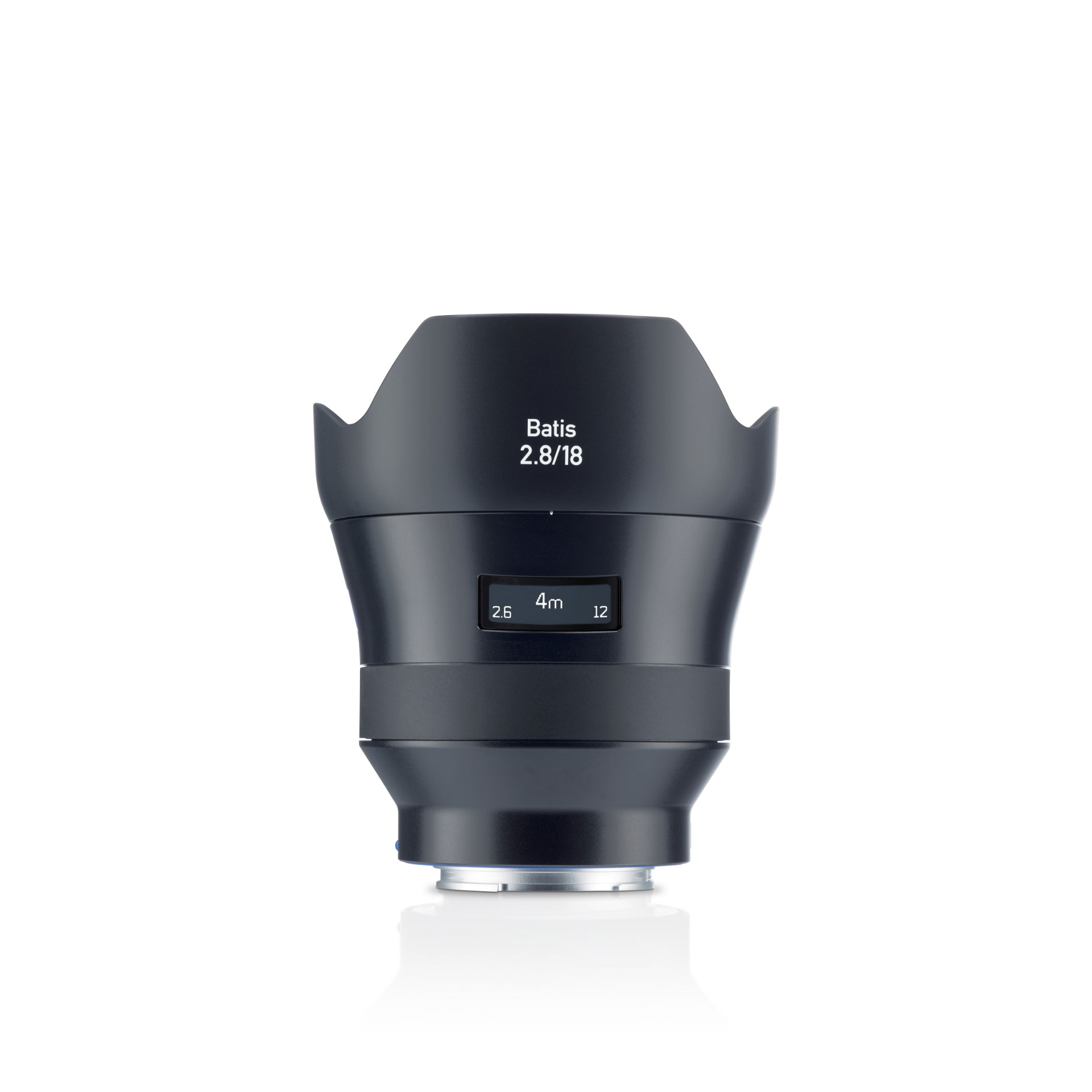

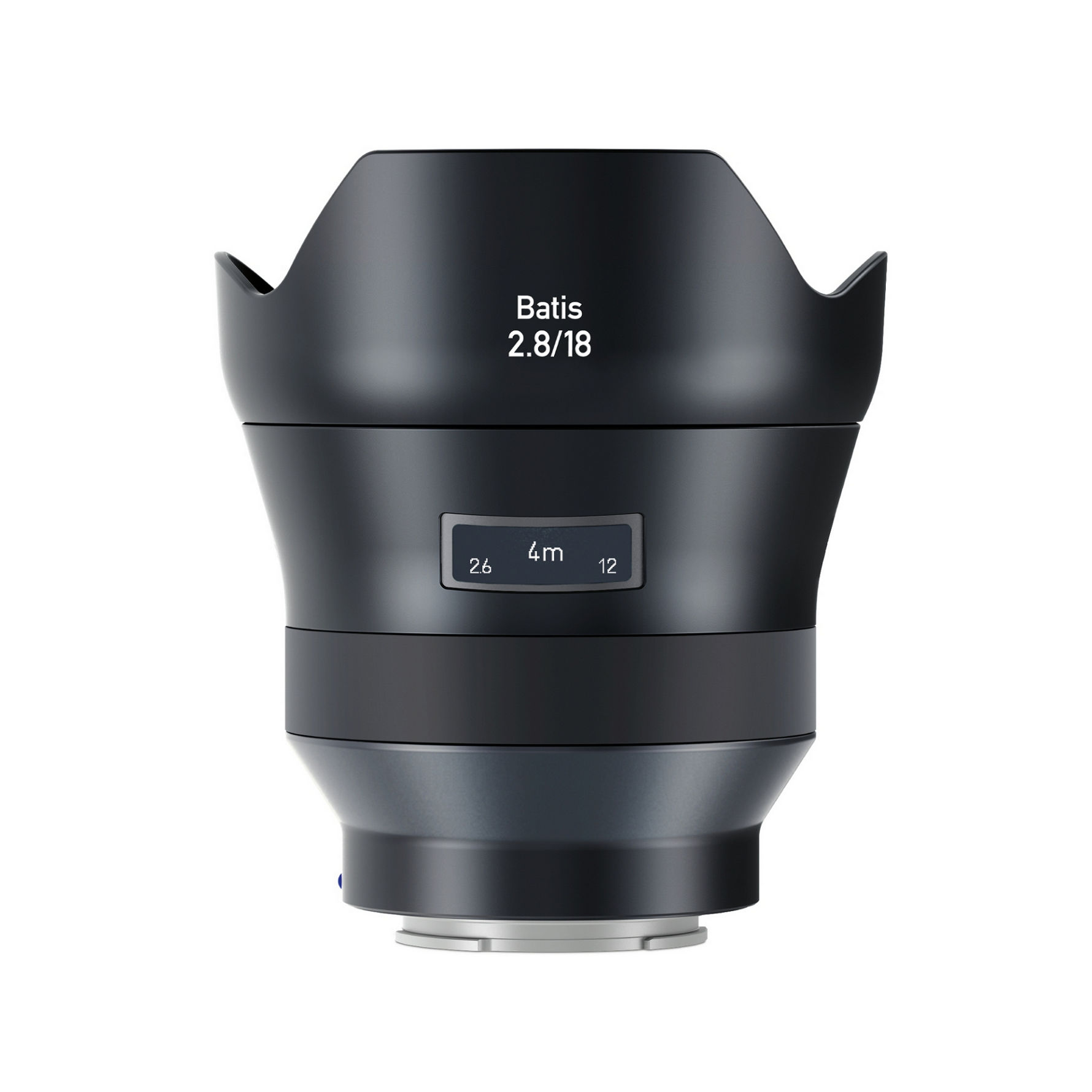

  • Front view of a ZEISS Batis 2.8/18 wide-angle camera lens with an OLED display showing focus distance.
    Batis 2.8/18

         拍摄距离:
    0.25 m (9.8 ") – ∞
    自由工作距离:
    0.17 m (6.7 ") – ∞
    图像稳定:
    –

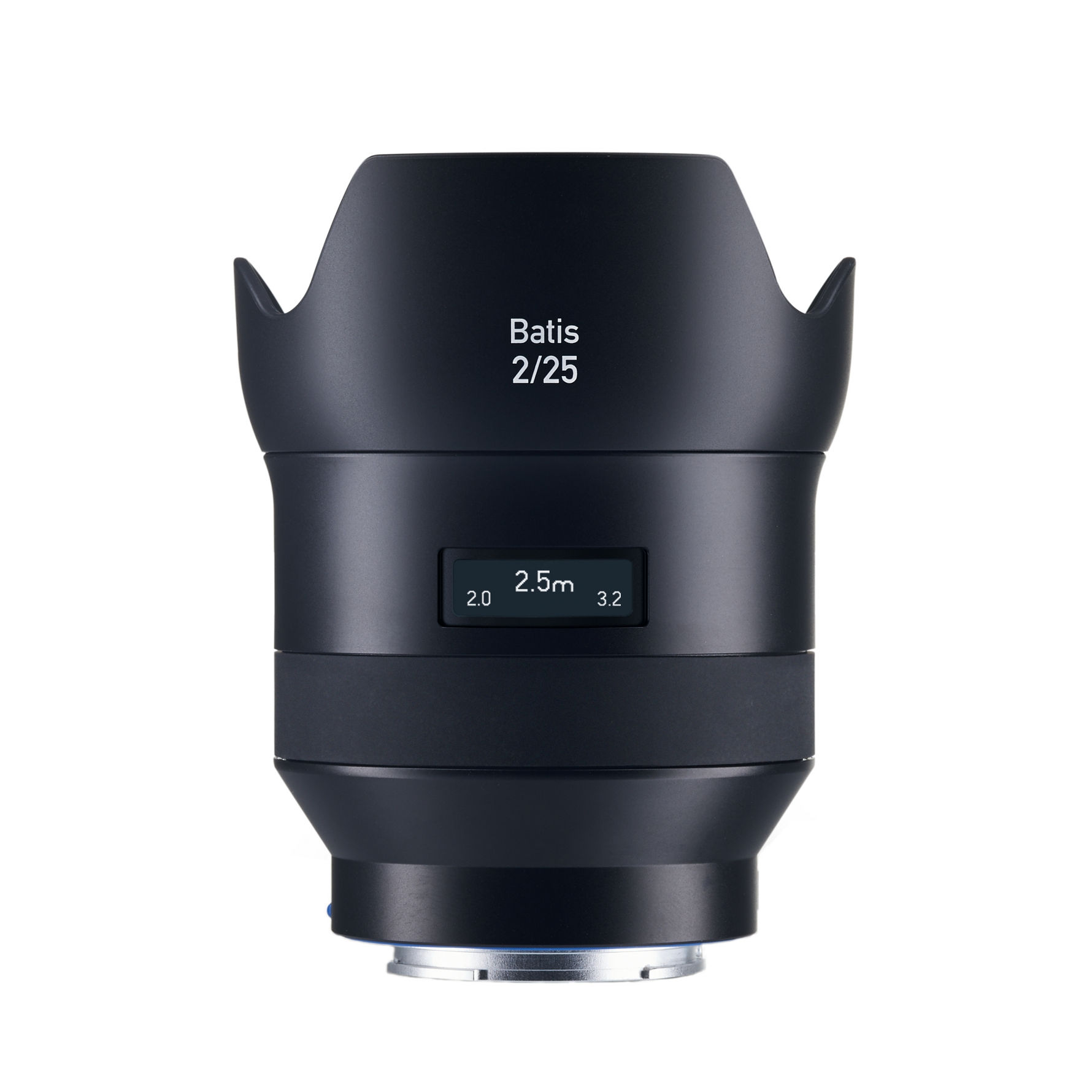

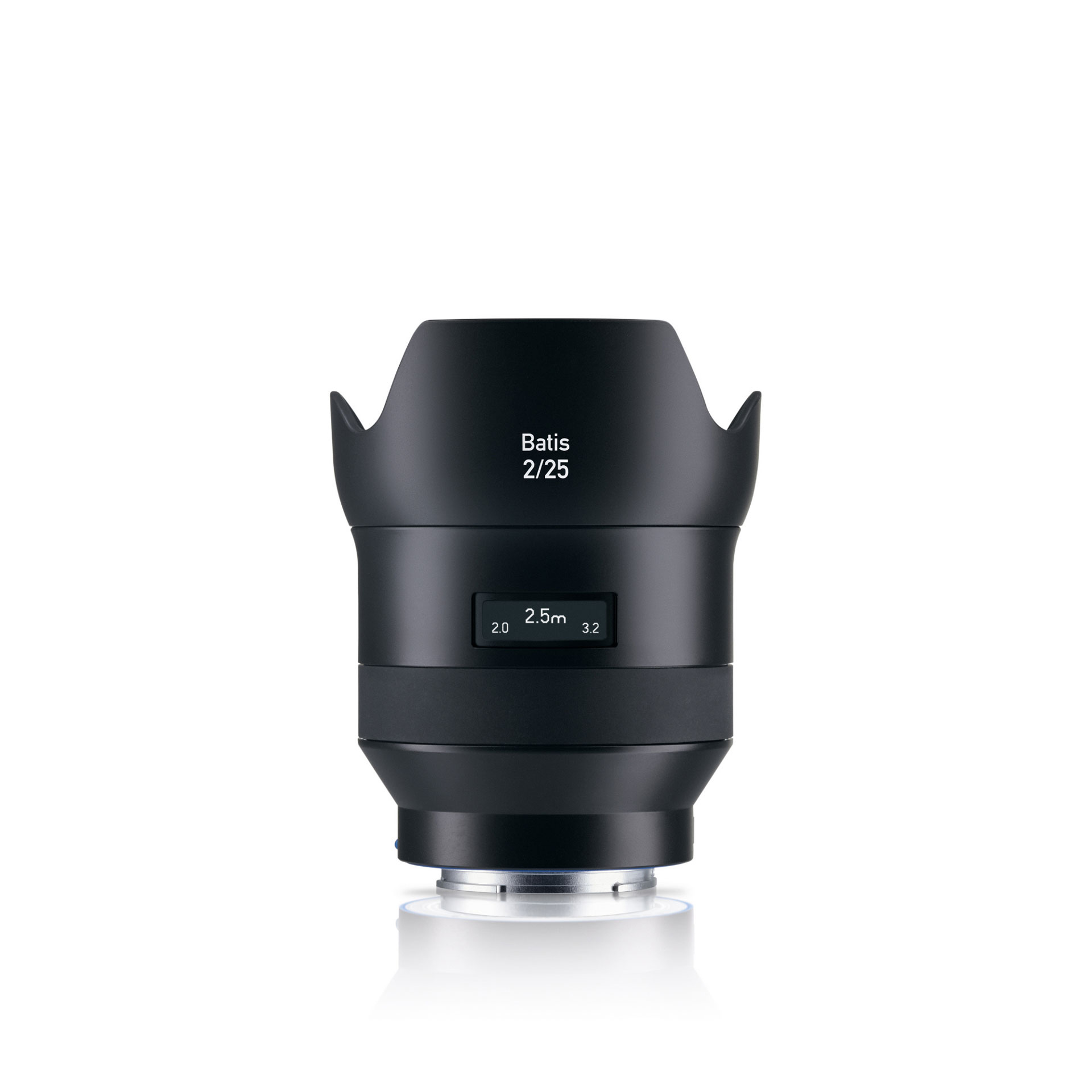

  • Front view of a ZEISS Batis 2/25 camera lens with a built-in OLED display and lens hood attached.
    Batis 2/25

         拍摄距离:
    0.20 m (7.87 ") – ∞
    自由工作距离:
    0.13 m (5.12 ") – ∞
    图像稳定:
    –

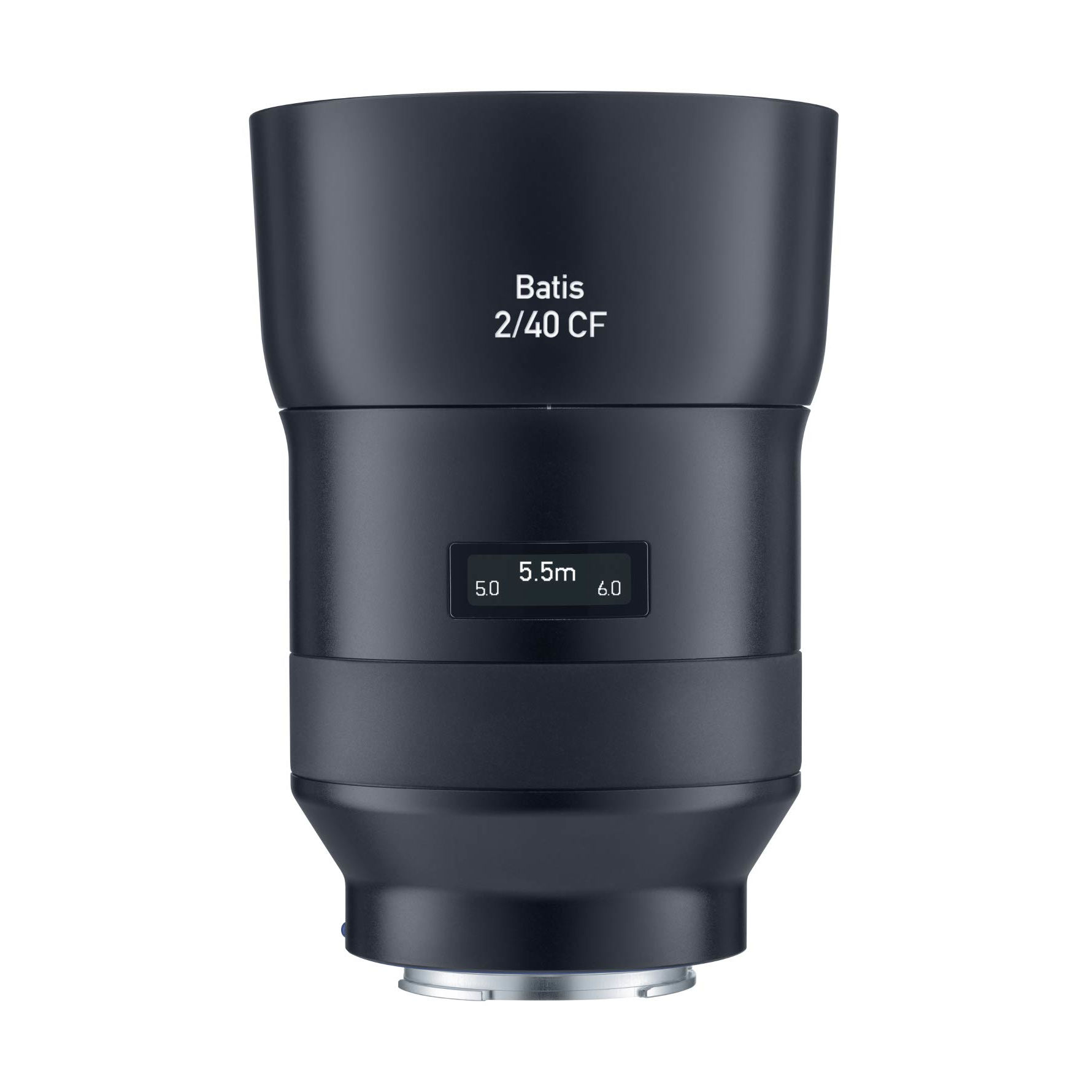

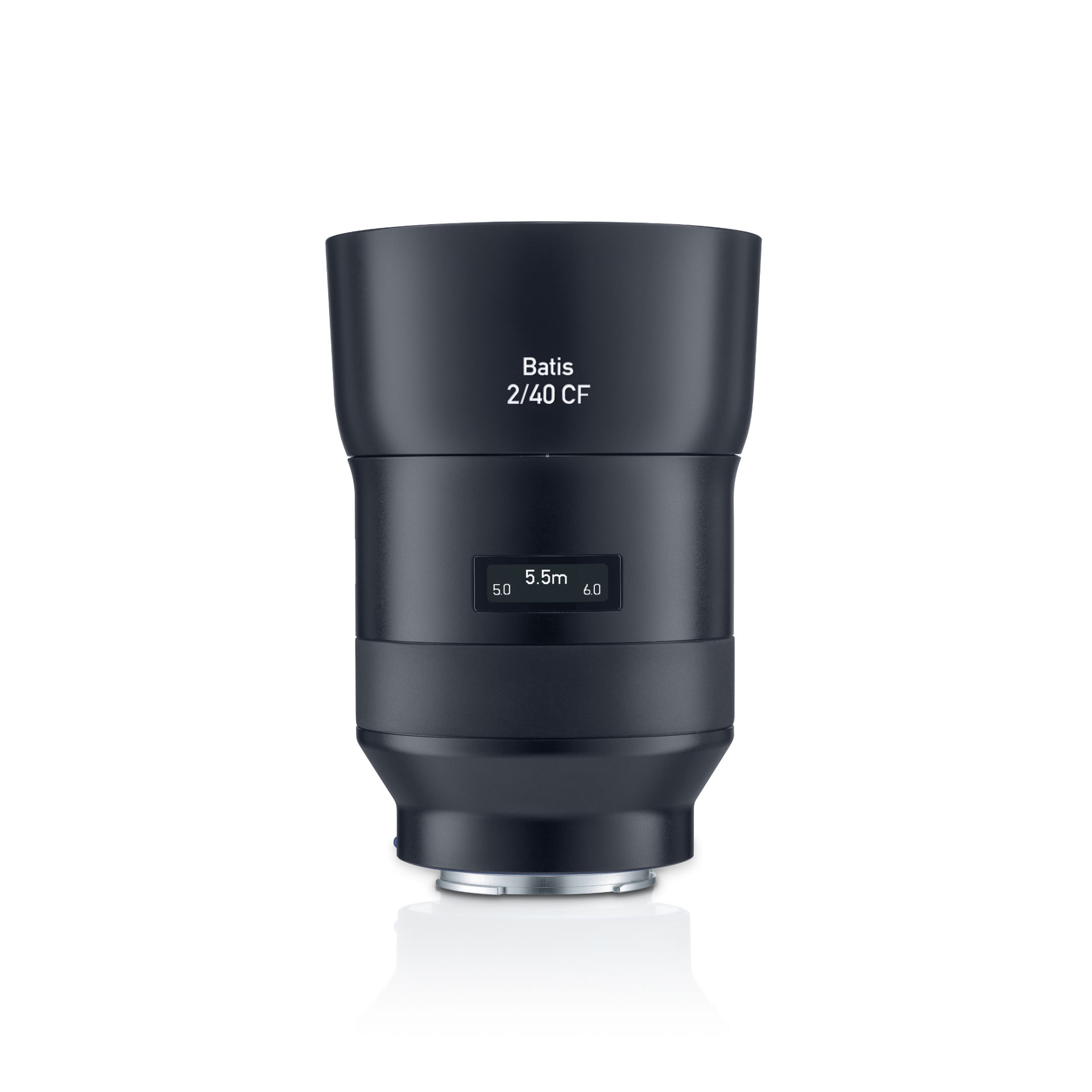

  • A ZEISS Batis 2/40 CF camera lens in matte black finish with an OLED display showing focus distance and aperture.
    Batis 2/40 CF

         拍摄距离:
    0.24 m (9.45 ft) – ∞
    自由工作距离:
    0.14 m (5.51 ") – ∞
    图像稳定:
    –

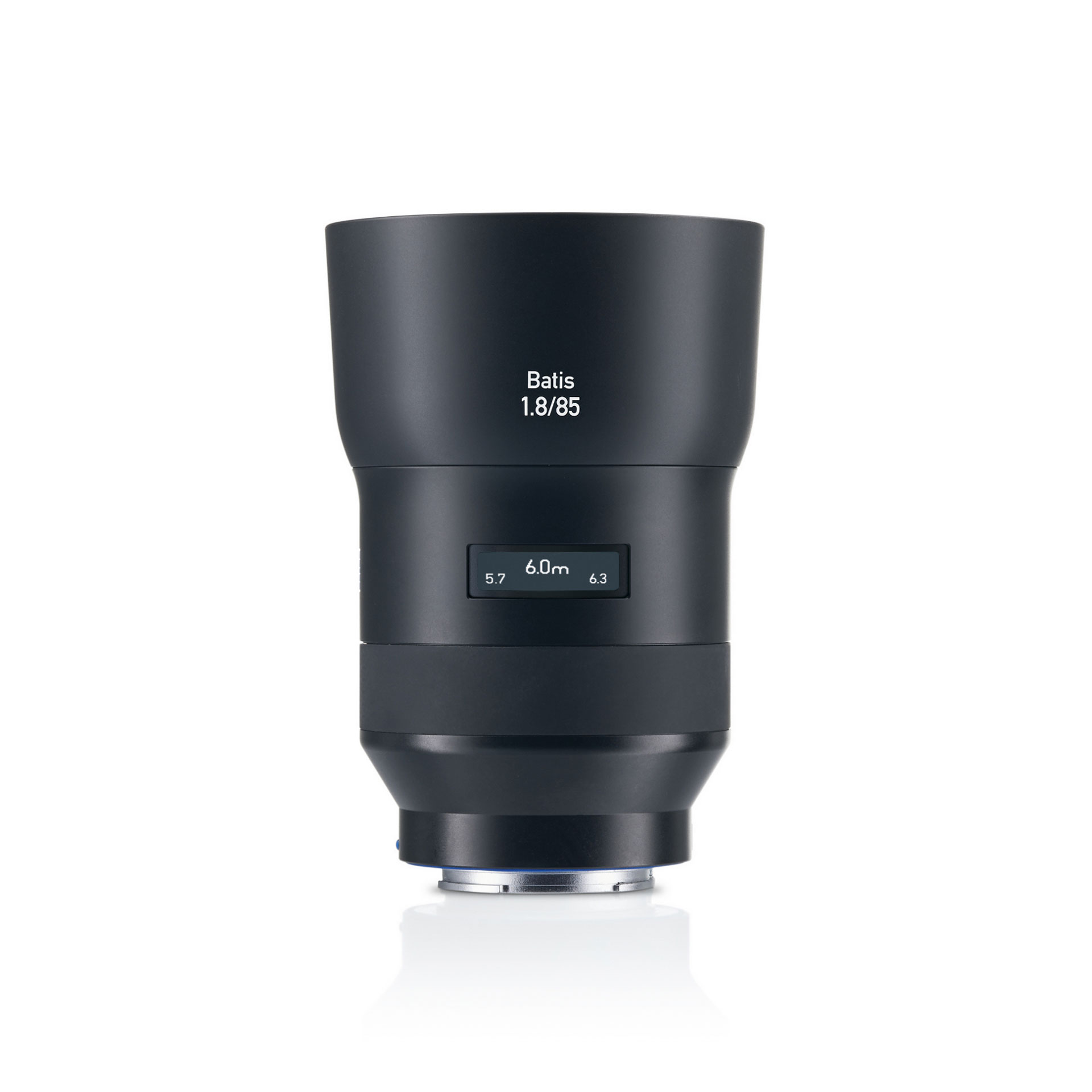

  • Black ZEISS Batis 85mm f/1.8 camera lens standing upright with an OLED display showing focus distance.
    Batis 1.8/85

         拍摄距离:
    0.80 m (31.50 ft) – ∞
    自由工作距离:
    0.71 m (27.95 ft) – ∞
    图像稳定:
    +

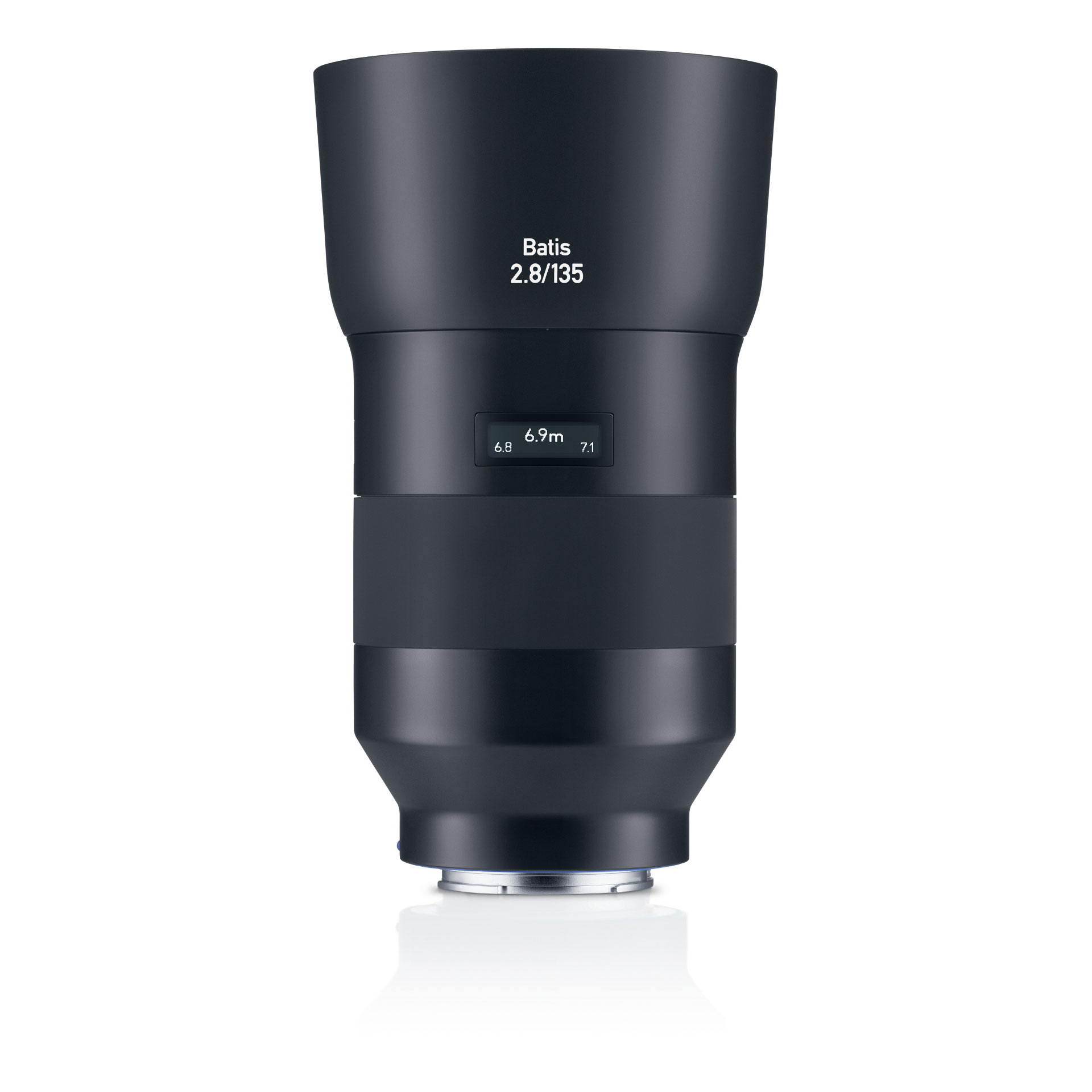

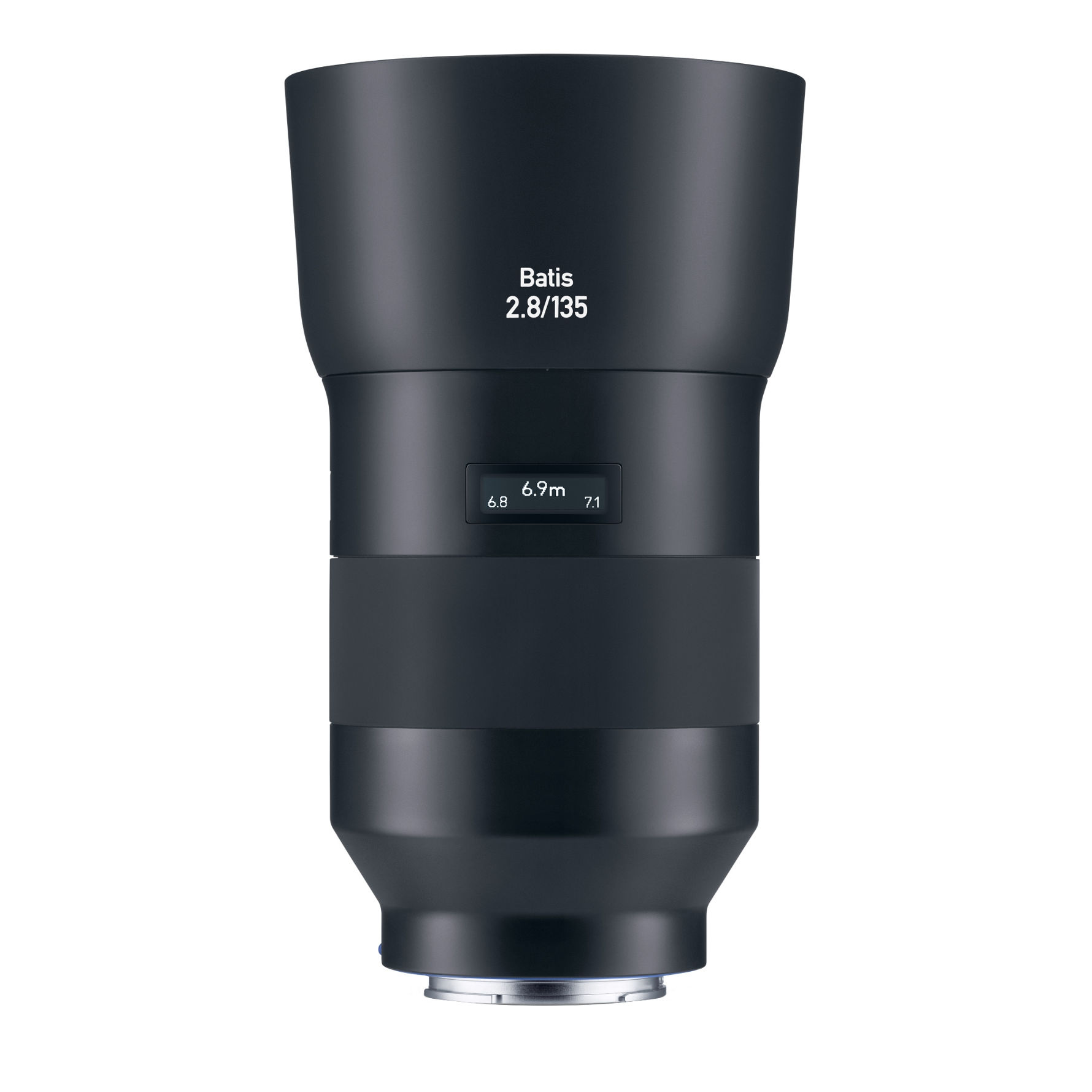

  • ZEISS Batis 2.8/135 camera lens shown in a front-facing view with a digital distance scale display.
    Batis 2.8/135

         拍摄距离:
    0.87 m (34.25 ft) – ∞
    自由工作距离:
    0.74 m (29.13 ft) – ∞
    图像稳定:
    +
ZEISS Batis Lenses
查找经销商
A photographer using a ZEISS camera lens captures a wedding couple posing in a scenic desert landscape.
Topher DeLancy

自动对焦畅顺可靠

自动对焦系统的设计要求特定的镜头组进行极准确的转换。蔡司镜头的对焦系统设计确保能以出色的成像性能稳重畅顺地操作自动对焦机制。

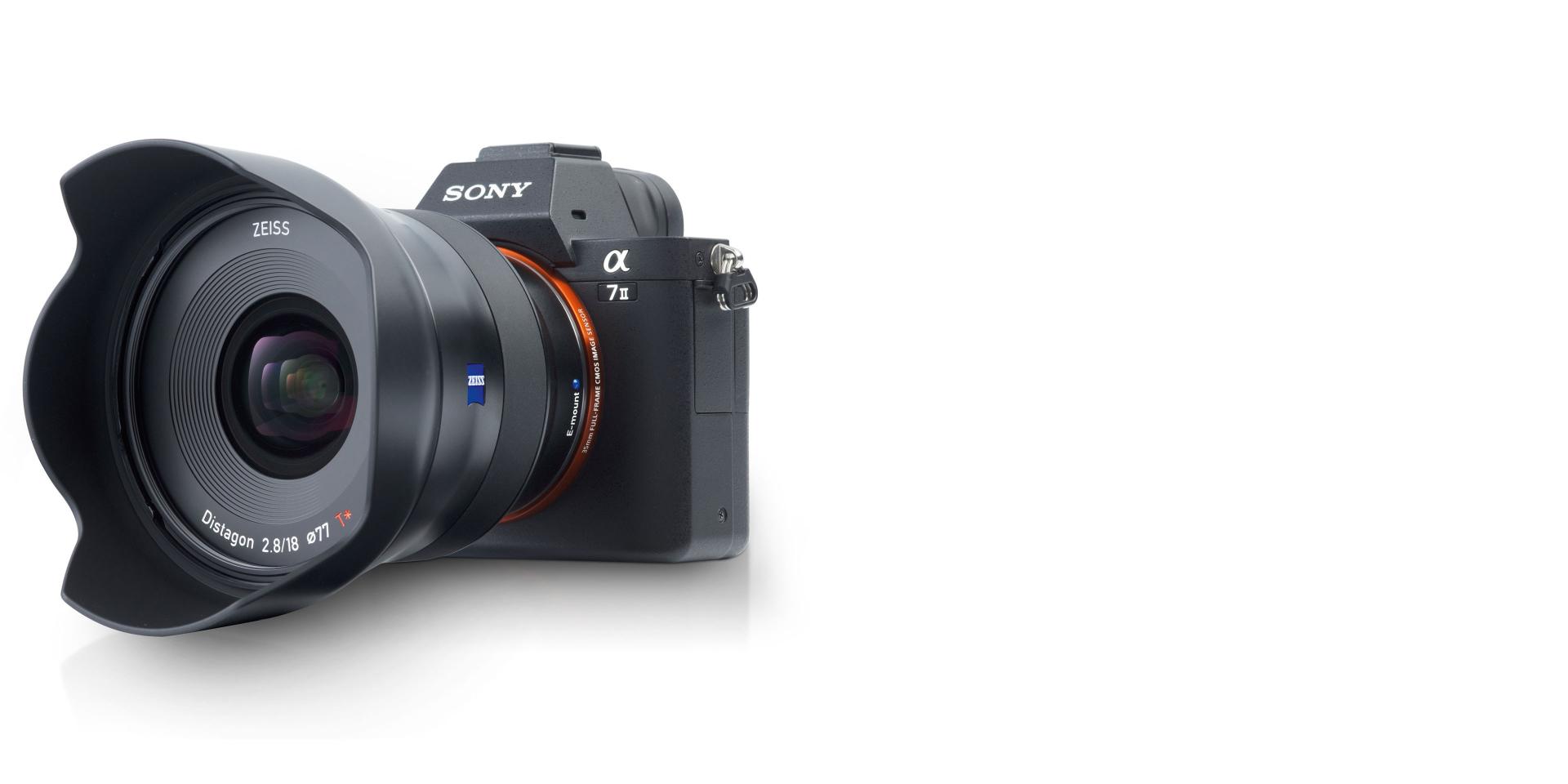

A Sony Alpha 7 II camera is shown with a mounted ZEISS Batis 2/18 wide-angle lens.

多功能Full Frame镜片

用于索尼无反射镜全幅系统的强大镜头符合高要求。设计紧凑，但成像效果却能符合专业摄影师的期望。

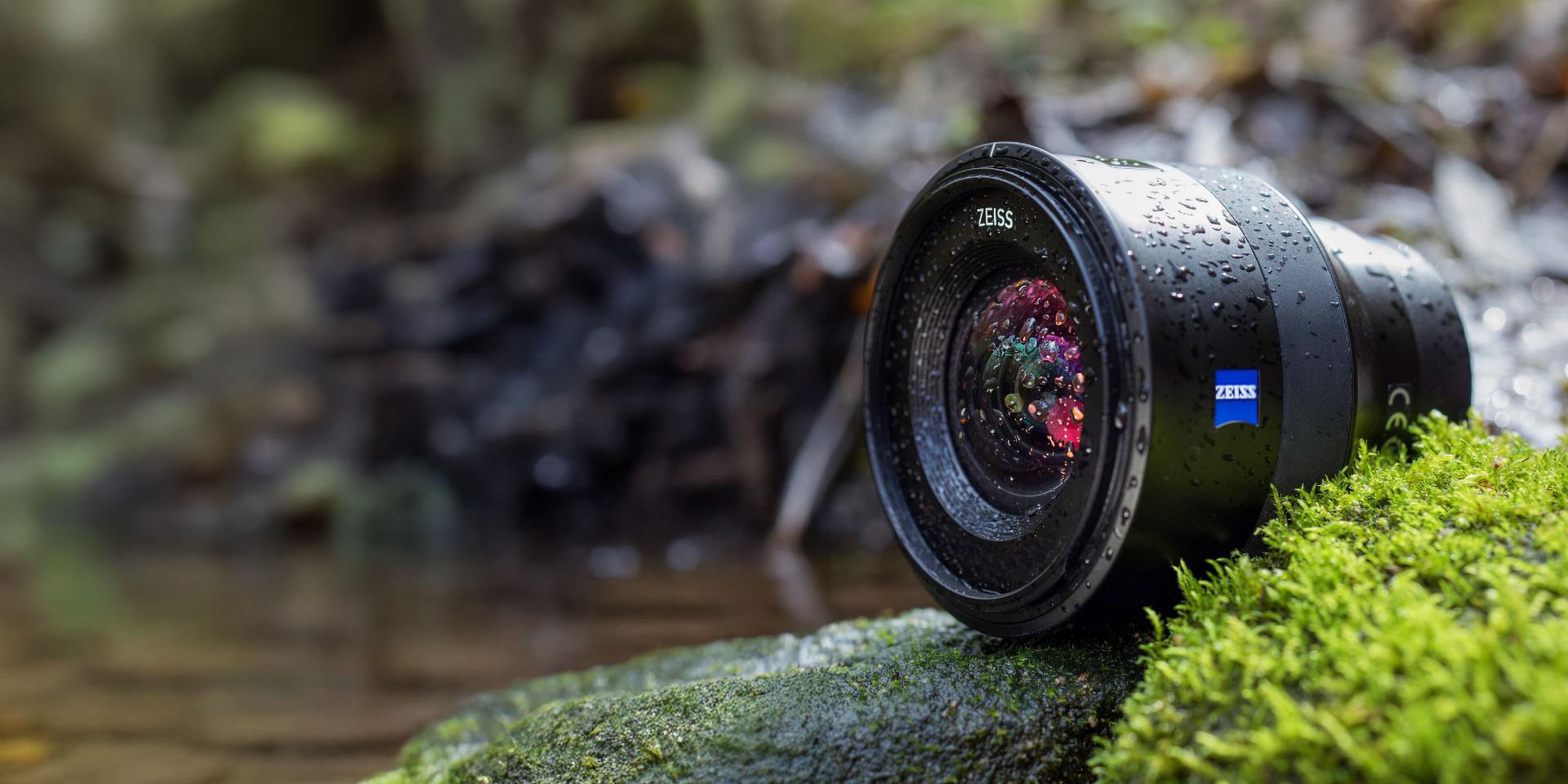

A ZEISS camera lens covered in water droplets rests on a mossy rock beside a stream in a natural outdoor setting.

耐候防尘

由于具有防尘和防水花飞溅的设计，此镜头特别适用于临界的室外条件。同时也设计为可多年密集使用。

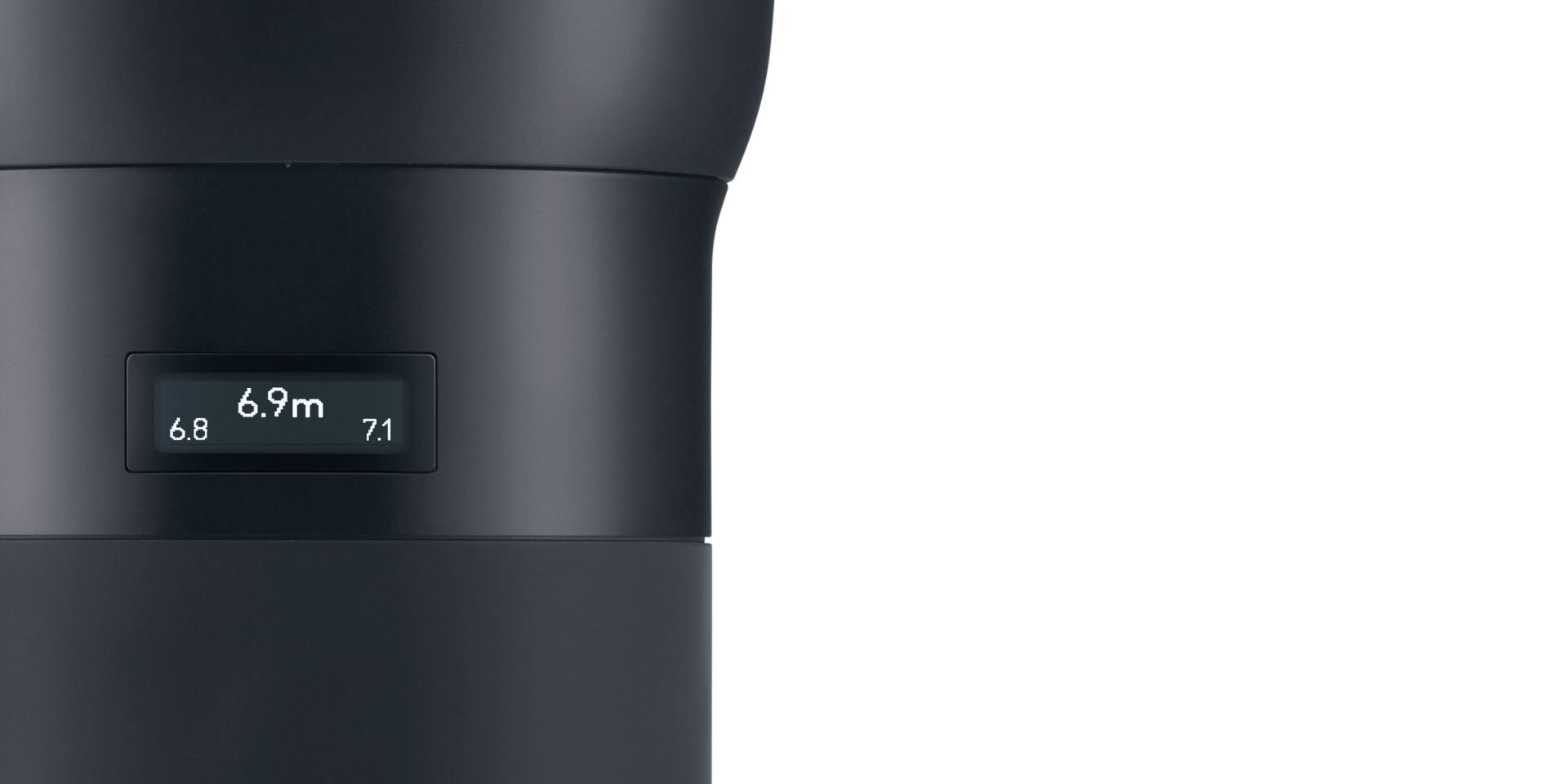

Close-up of a ZEISS camera lens displaying focus distance and aperture settings on a digital screen.

创新的 OLED 显示屏

首次的发明，让您能够简单直观地在 OLED 显示屏上读取准确的焦距和景深。尤其在照明不佳的条件下——保证一律可以清晰地读取。

A woman in a blue striped shirt looks intently at the camera through palm leaves casting shadows on her face.
Wolf-Peter Steinheißer

高解像度和高对比度

丰富且充满活力的色彩对创造出美轮美奂的影像至关重要。而如果有杂散光侵入镜头，则会导致在明亮的图像中出现特别明显的阴影，还会造成图像对比度下降 – 其结果是图像沉闷且缺乏层次感。我们会使用各种复杂的专业技术，抑制镜头内的杂散光，从而提供高分辨率和高对比度的图像。

A hand delicately lifts a small seashell from the sand, capturing the intricate details of nature that inspire ZEISS precision optics.
Michael Imhof

蔡司Batis 2/40 CF近摄功能镜头

蔡司Batis 2/40 CF的近摄功能（ZF）可实现极近距离的精准对焦——最近对焦距离（即被摄体与相机传感器的最小距离）仅为24厘米.为确保近距离拍摄的卓越画质，镜头在接近物体时会自动缩小光圈。此设计确保蔡司镜头在整个对焦范围内始终呈现用户期待的高对比度与高解析度。

定格瞬间

蔡司 Batis 镜头
查看所有
Captured Moments

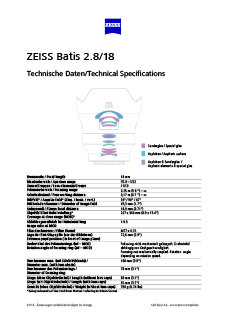

技术参数

蔡司 Batis 镜头

  • Focal Length

    18 mm

    Aperture Range

    f/2.8 – f/22

    Camera Mount

    Sony E-Mount1

    Format Compatibility

    Full Frame

    Focusing Range

    0.25 m (9.8") – ∞

    Free Working Distance

    0.17 m (6.7") – ∞

    Angular Field2 (diag. horiz. vert.)

    99° | 90° | 67°

    Diameter of Image Field

    43 mm (1.69")

    Coverage at Close Range (MOD)3

    227 x 340 mm (8.9 x 13.4")

    Image Ratio at Minimum Object Distance

    1 : 9.5

    Lens Elements | Groups

    11 | 10

    Flange Focal Distance

    18 mm (0.71")

    Entrance Pupil Position (Front of Image Plane)

    73 mm (2.9")

    Autofocus

    +

    Image Stabilization

    –

    Filter Thread

    M77 x 0.75

    Rotation Angle of Focusing Ring

    Focusing not Mechanically Coupled

    Diameter max.

    100 mm (3.9")

    Diameter of Focusing Ring

    78 mm (3.1")

    Length (With Lens Caps)

    95 mm (3.7")

    Length (Without Lens Caps)

    80 mm (3.1")

    Weight

    330 g (0.74 lbs)

  • Focal Length

    25 mm

    Aperture Range

    f/2 – f/22

    Camera Mount

    Sony E-Mount1

    Format Compatibility

    Full Frame

    Focusing Range

    0.20 m (7.9") – ∞

    Free Working Distance

    0.13 m (5.1") – ∞

    Angular Field2 (diag. horiz. vert.)

    82° | 72° | 51°

    Diameter of Image Field

    43 mm (1.69")

    Coverage at Close Range (MOD)3

    124 x 187 mm (4.9 x 7.4")

    Image Ratio at Minimum Object Distance

    1:5.2

    Lens Elements | Groups

    10 | 8

    Flange Focal Distance

    18 mm (0.71")

    Entrance Pupil Position (Front of Image Plane)

    70 mm (2.7")

    Autofocus

    +

    Image Stabilization

    –

    Filter Thread

    M67 x 0.75

    Rotation Angle of Focusing Ring

    Focusing not Mechanically Coupled

    Diameter max.

    81 mm (3.2")

    Diameter of Focusing ring

    78 mm (3.1")

    Length (With Lens Caps)

    92 mm (3.6")

    Length (Without Lens Caps)

    78 mm (3.1")

    Weight

    335 g (0.74 lbs)

  • Focal Length

    40 mm

    Aperture Range

    f/2 – f/22

    Camera Mount

    Sony E-Mount1

    Format Compatibility

    Full Frame

    Focusing Range

    0.24 m (0.78 ft) – ∞

    Free Working Distance

    0.14 m (0.45 ft) – ∞

    Angular Field2 (diag. horiz. vert.)

    56° | 47° | 33°

    Diameter of Image Field

    43 mm (1.69")

    Coverage at Close Range (MOD)3

    79 x 117 mm (3.1 x 4.6")

    Image Ratio at Minimum Object Distance

    1 : 3.3

    Lens Elements | Groups

    9 | 8

    Flange Focal Distance

    18 mm (0.71")

    Entrance Pupil Position (front of Image Plane)

    75.1 mm (2.96")

    Autofocus

    +

    Image Stabilization

    –

    Filter Thread

    M67 x 0,75

    Rotation Angle of Focusing Ring

    Focusing not Mechanically Coupled

    Diameter max.

    91 mm (3.6")

    Diameter of Focusing Ring

    78 mm (3.1")

    Length (With Lens Caps)

    106 mm (4.2")

    Length (Without Lens Caps)

    93 mm (3.7")

    Weight

    361 g (0.80 lbs)

  • Focal Length

    85 mm

    Aperture Range

    f/1.8 – f/22

    Camera Mount

    Sony E-Mount1

    Format Compatibility

    Full Frame

    Focusing Range

    0.80 m (2.6 ft) – ∞

    Free Working Distance

    0.71 m (2.3 ft) – ∞

    Angular Field2 (diag. horiz. vert.)

    29° | 24° | 16°

    Diameter of Image Field

    43 mm (1.69")

    Coverage at Close Range (MOD)3

    189 x 283 mm (7.4 x 11.1")

    Image Ratio at Minimum Object Distance

    1:7.9

    Lens Elements | Groups

    11 | 8

    Flange Focal Distance

    18 mm (0.71")

    Entrance Pupil Position (Front of Image Plane)

    18 mm (0.72")

    Autofocus

    +

    Image Stabilization

    +

    Filter Thread

    M67 x 0.75

    Rotation Angle of Focusing Ring

    Focusing not mechanically coupled

    Diameter max.

    92 mm (3.6")

    Diameter of Focusing Ring

    78 mm (3.1")

    Length (With Lens Caps)

    105 mm (4.1")

    Length (Without Lens Caps)

    92 mm (3.6")

    Weight

    452 g (1.0 lbs)

  • Focal Length

    135 mm

    Aperture Range

    f/2.8 – f/22

    Camera Mount

    Sony E-Mount1

    Format Compatibility

    Full Frame

    Focusing Range

    0.87 m (2.9 ft) – ∞

    Free Working Distance

    0.74 m (2.4 ft) – ∞

    Angular Field2 (diag. horiz. vert.)

    18° | 15° | 10°

    Diameter of Image Field

    43 mm (1.69")

    Coverage at Close Range (MOD)3

    125 x 185 mm (4.9 x 7.3")

    Image Ratio at Minimum Object Distance

    1:5.3

    Lens Elements | Groups

    14 | 11

    Flange Focal Distance

    18 mm (0.71")

    Entrance Pupil Position (Front of Image Plane)

    6.9 mm (0.27")

    Autofocus

    +

    Image Stabilization

    +

    Filter Thread

    M67 x 0.75

    Rotation Angle of Focusing Ring

    Focusing not Mechanically Coupled

    Diameter max.

    98 mm (3.9")

    Diameter of Focusing Ring

    81 mm (3.2")

    Length (With Lens Caps)

    133 mm (5.2")

    Length (Without Lens Caps)

    120 mm (4.7")

    Weight

    614 g (1.4 lbs)
  • Wide-angle ZEISS Batis 2.8/18 camera lens with integrated OLED display showing focus distance and depth of field.

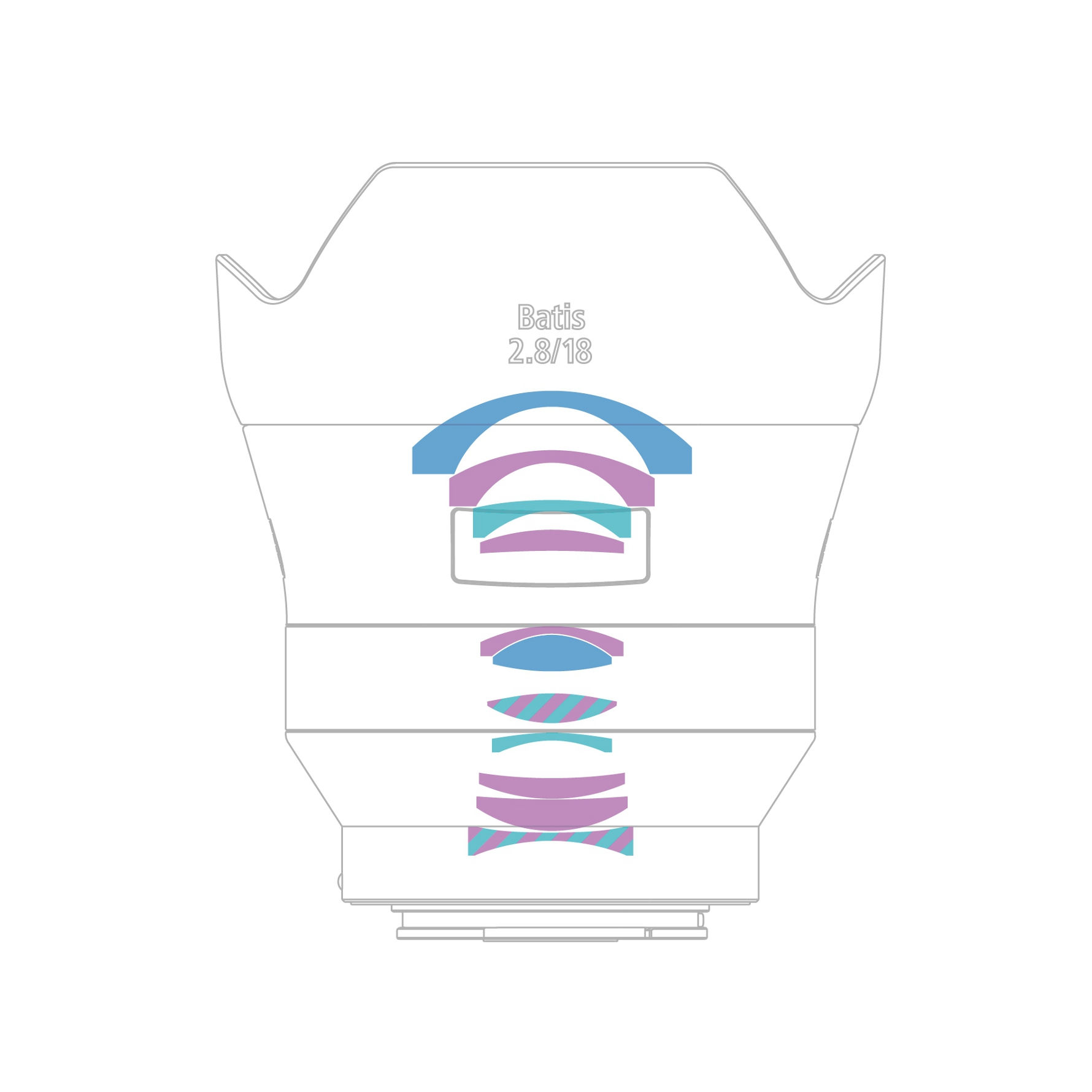

    Cross-sectional illustration of the ZEISS Batis 2.8/18 lens showing internal optical elements.

    蔡司 Batis 2.8/18

    最初开发单反相机时，由于镜盒（后镜头元件和胶片平面之间的距离必须远大于焦距）的原因，短焦距需要较长的后对焦距离，而 Distagon 镜头（逆焦式设计）因其优化的光程非常适用于无反光镜系统的相机。即使具有较长的焦距，高性能 Distagon 光学设计也始终能够轻松的良好校正图像的角落和极低的场曲率。

    ⬛ Distagon 设计

    🟩 非球面光学表面的镜头

    🟪 由带有异常部分色散的特殊玻璃制成的镜头

    ⬛ 非球面元件和特殊玻璃

    ⬛ “浮动元素”设计

  • Front view of the ZEISS Batis 2/25 wide-angle camera lens with an integrated OLED display showing focus distance and depth of field.

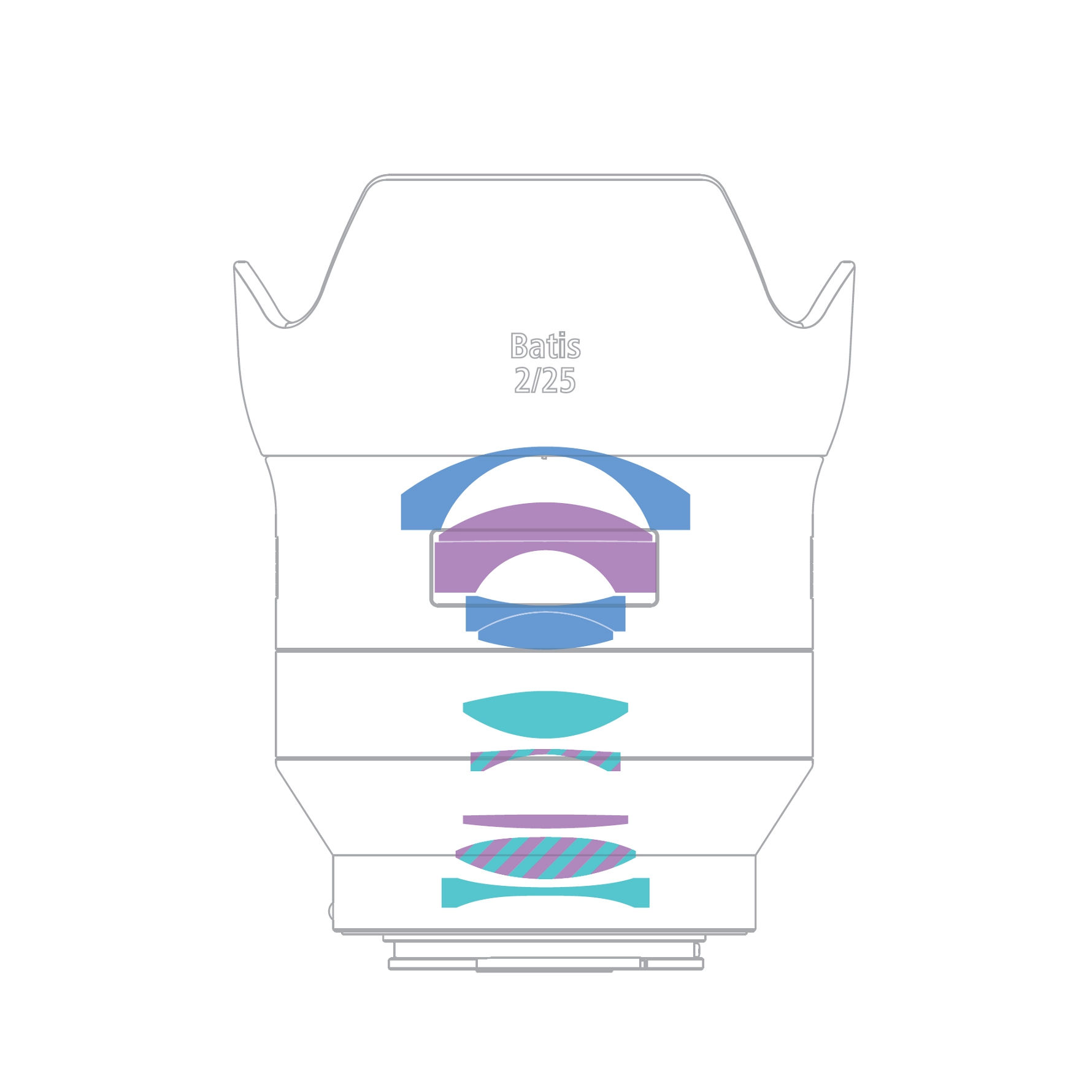

    Cross-sectional diagram of the ZEISS Batis 2/25 lens showing the internal optical element configuration.

    蔡司 Batis 2/25

    最初开发单反相机时，由于镜盒（后镜头元件和胶片平面之间的距离必须远大于焦距）的原因，短焦距需要较长的后对焦距离，而 Distagon 镜头（逆焦式设计）因其优化的光程非常适用于无反光镜系统的相机。即使具有较长的焦距，高性能 Distagon 光学设计也始终能够轻松的良好校正图像的角落和极低的场曲率。

    ⬛ Distagon 设计

    🟩 非球面光学表面的镜头

    🟪 由带有异常部分色散的特殊玻璃制成的镜头

    ⬛ 非球面元件和特殊玻璃

    ⬛ “浮动元素”设计

  • Front view of a ZEISS Batis 2/40 CF camera lens with an integrated OLED display showing a focus distance of 5.5 meters.

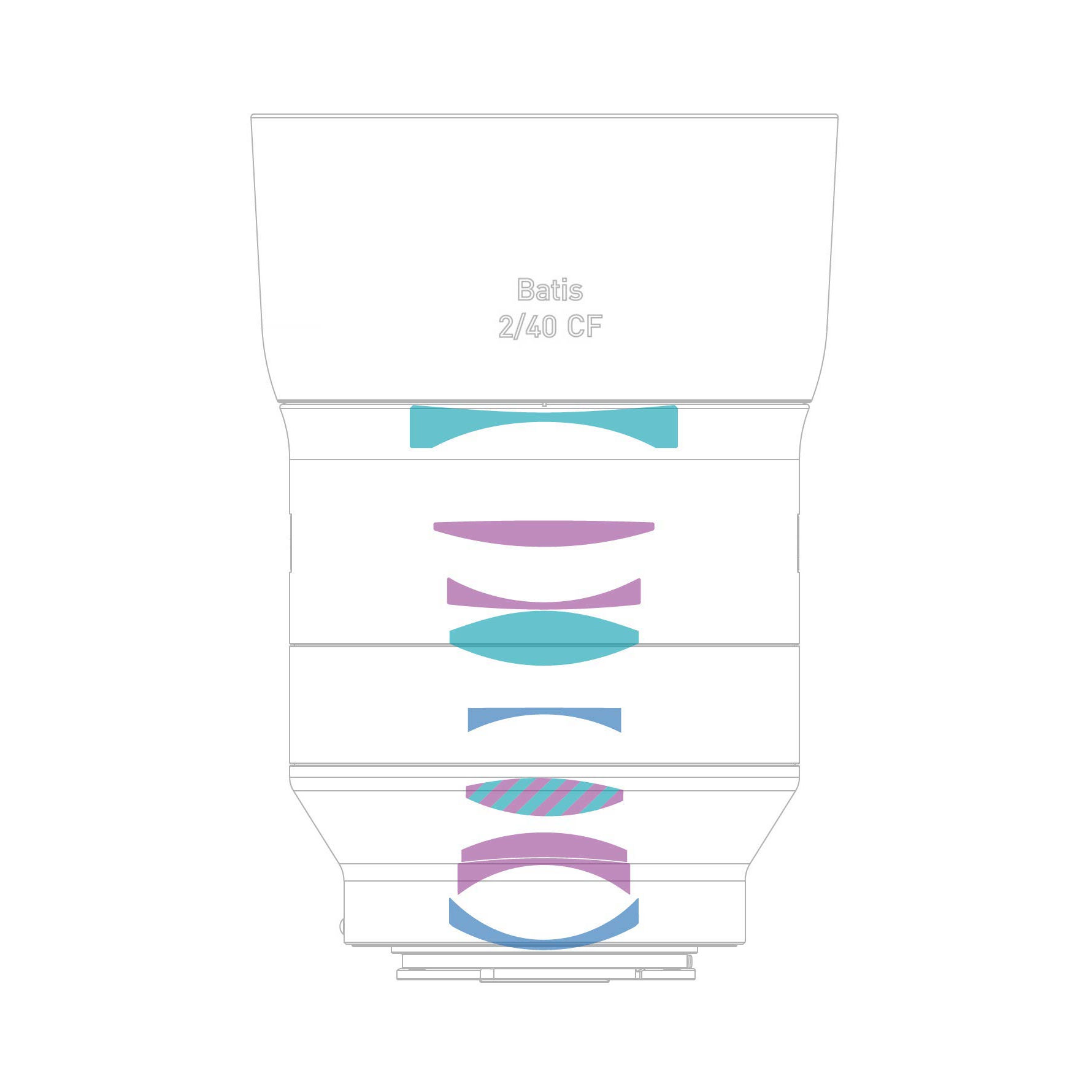

    Cross-sectional diagram of the ZEISS Batis 2/40 CF lens showing internal optical lens elements in various colors.

    蔡司 Batis 2/40 CF

    最初开发单反相机时，由于镜盒（后镜头元件和胶片平面之间的距离必须远大于焦距）的原因，短焦距需要较长的后对焦距离，而 Distagon 镜头（逆焦式设计）因其优化的光程非常适用于无反光镜系统的相机。即使具有较长的焦距，高性能 Distagon 光学设计也始终能够轻松的良好校正图像的角落和极低的场曲率。

    ⬛ Distagon 设计

    🟩 非球面光学表面的镜头

    🟪 由带有异常部分色散的特殊玻璃制成的镜头

    ⬛ 非球面元件和特殊玻璃

    ⬛ “浮动元素”设计

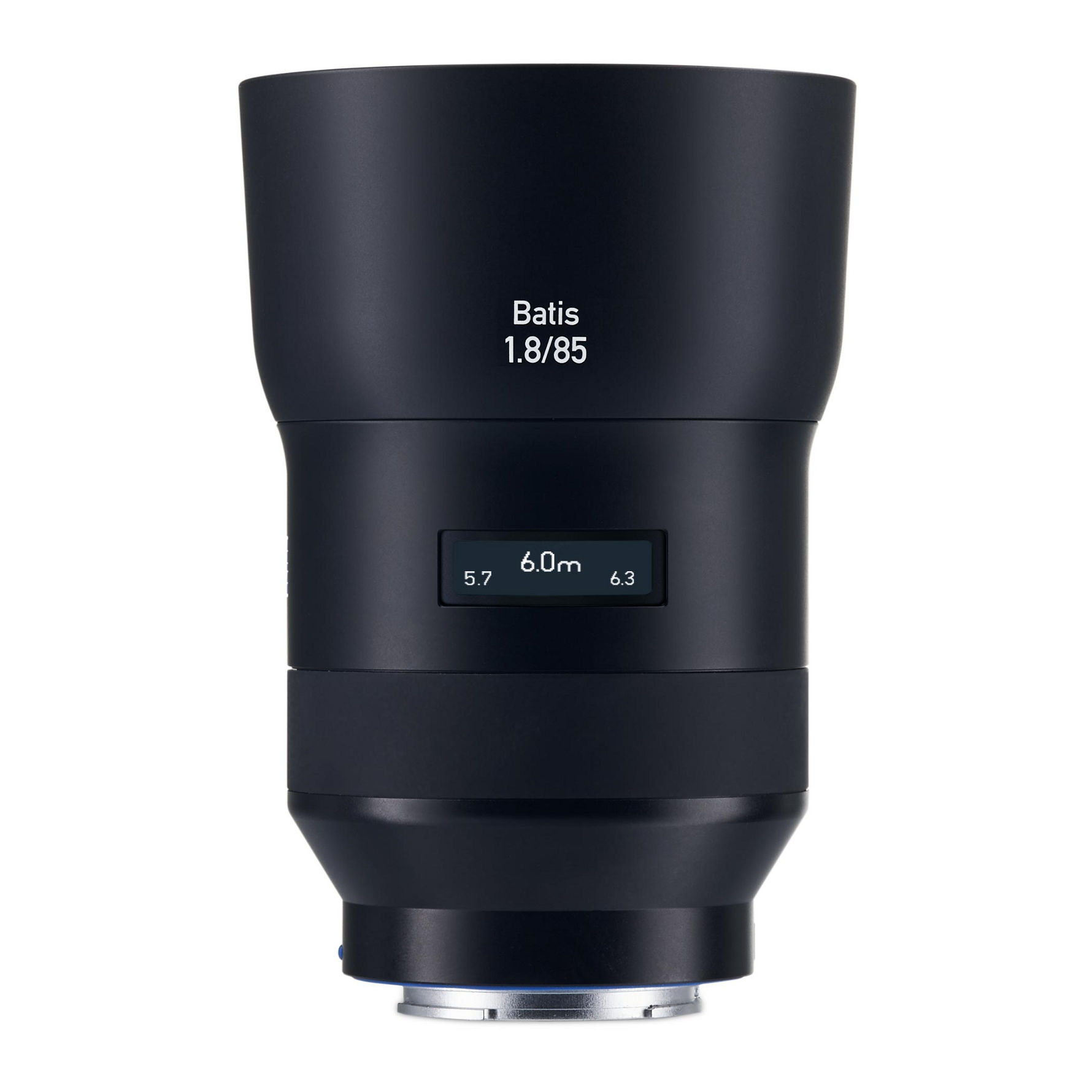

  • Black ZEISS Batis 1.8/85 camera lens with an integrated OLED display showing focus distance and depth of field.

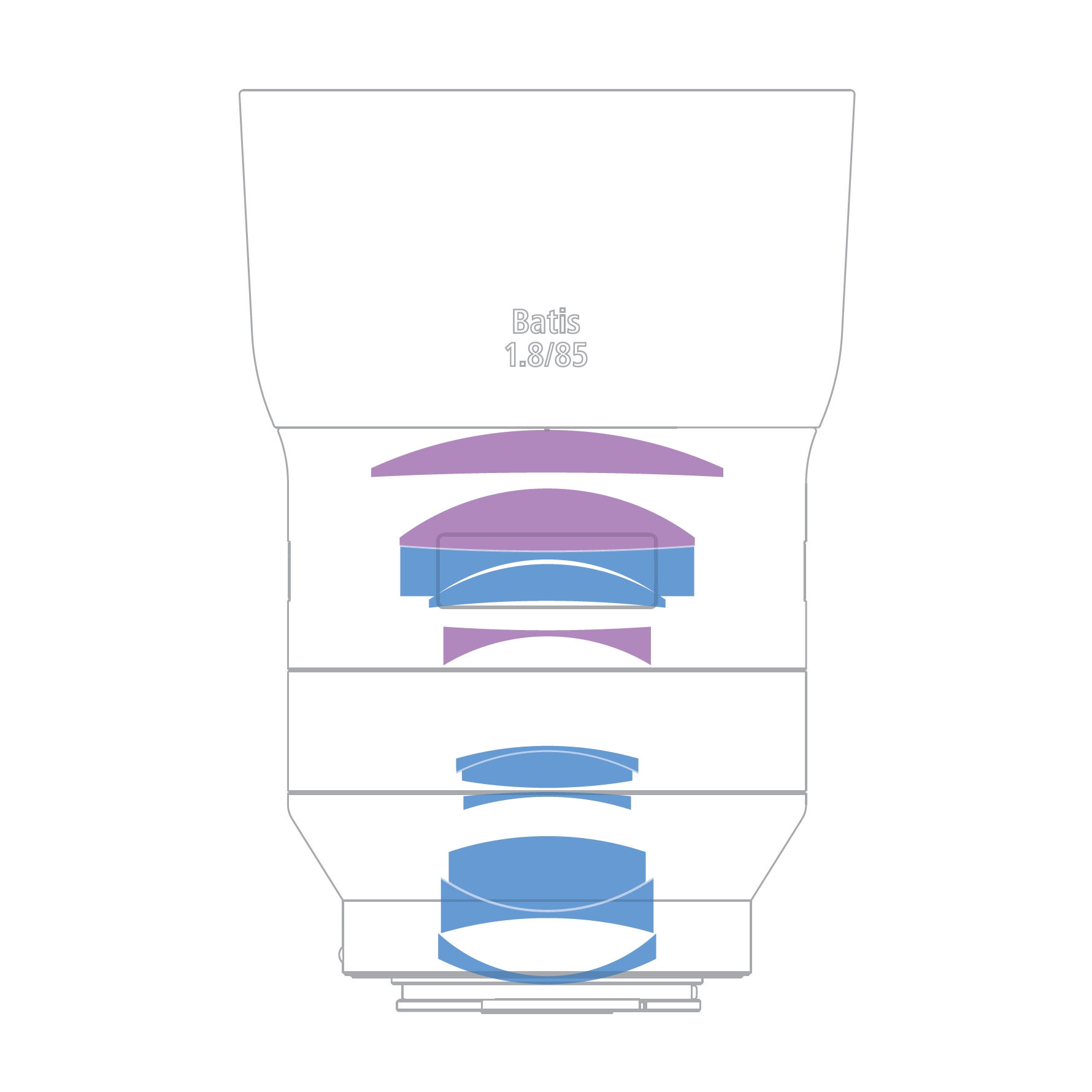

    Cross-sectional diagram of the ZEISS Batis 1.8/85 lens showing the internal optical lens elements in different colors.

    蔡司 Batis 1.8/85

    镜片空气接触面少的镜头，是蔡司的路德维希·贝尔特勒博士（Ludwig Bertele）于 1930 年研发的。这种镜头是当时速度最快的 35 mm 摄影镜头，其光圈为 1:1.5，由于有效地减少了杂散光，所以提供了高反差。镜头的名字取自其高速和高反差，同时也来自“sun”，即太阳一词，代表最高的亮度。这种先进镜头的光学设计基于基础型号，您一定会不断发现上述在正常和远摄范围方面的优势。

    ⬛ Sonnar 设计

    🟩 由带有异常部分色散的特殊玻璃制成的镜头

    ⬛ “浮动元素”设计

  • ZEISS Batis 2.8/135 camera lens in matte black finish with an integrated OLED display showing focus distance and depth of field.

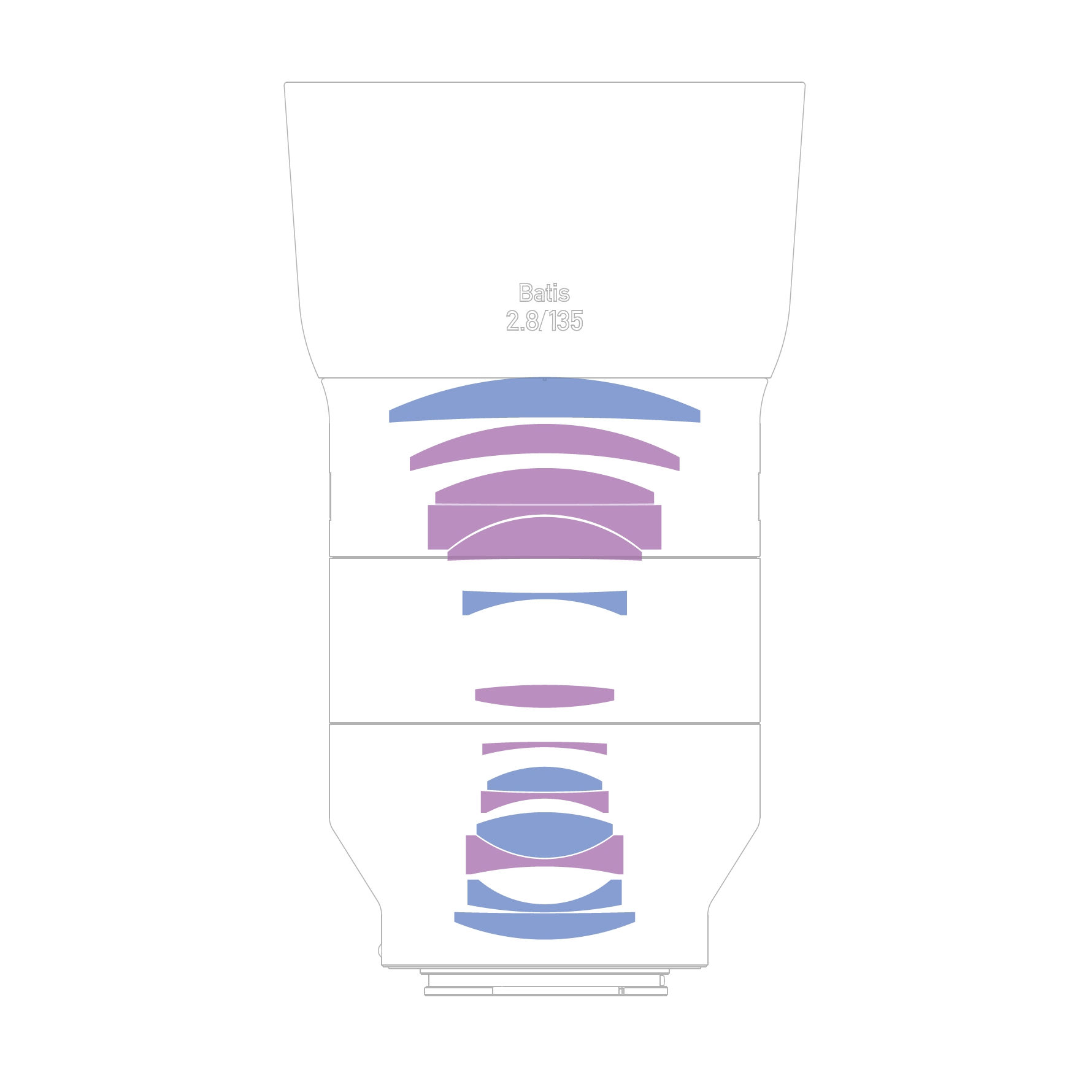

    Cross-sectional diagram of a ZEISS Batis 2.8/135 lens showing the internal optical element layout in different colors.

    蔡司 Batis 2.8/135

    镜片空气接触面少的镜头，是蔡司的路德维希·贝尔特勒博士（Ludwig Bertele）于 1930 年研发的。这种镜头是当时速度最快的 35 mm 摄影镜头，其光圈为 1:1.5，由于有效地减少了杂散光，所以提供了高反差。镜头的名字取自其高速和高反差，同时也来自“sun”，即太阳一词，代表最高的亮度。这种先进镜头的光学设计基于基础型号，您一定会不断发现上述在正常和远摄范围方面的优势。

    ⬛ Sonnar 设计

    🟩 由带有异常部分色散的特殊玻璃制成的镜头

    ⬛ “浮动元素”设计

ZEISS camera cleaning kit including a lens cleaning brush, air blower, cleaning spray, microfiber cloths, and a black and blue carrying pouch with ZEISS branding.

蔡司摄影镜头配件

量身定制，满足您的需求。

拍摄照片时，良好的成像并不是唯一的考量。捕捉特殊的体验也起到了关键作用。蔡司的相机镜头凭借其可靠的功能，确保摄影师能完全专注于成像和构图，并为其创造力赋予生命。为了使这种体验趋近完美，蔡司现在提供定制的配件，以满足摄影师的高品质需求。

评测

蔡司 Batis 镜头

3d-kraft.com

"I think its most competitive feature of the Batis 25mm is its compact and lightweight form-factor.The days where your arms/shoulders are..."

leophoto.co.uk

"Without a doubt Carl Zeiss Batis 25mm f/2.0 is a stunning lens in general, but also smokes the Sony 28mm f/2.0 in almost every way..."

precision-camera.com

"Combine this perfectly versatile focal length with a close-focus ability, like what is found in the Zeiss Batis 40mm f/2, and you seriously have one lens that can do it all..."

bryanv.com

"The Batis line, introduced in April 2015, are the first full-frame autofocus lenses built especially for Sony E-Mount full-frame cameras..."

photographyblog.com

"The Zeiss Batis 40mm f/2 boasts superb build quality. The lens’ all-metal casing is dust and moisture resistant and it features a metal bayonet mount..."

phillipreeve.net

"The ZEISS Batis 1.8/85mm is a great lens, worth the price if you can easily afford it and are looking for an all-rounder..."

奖项

蔡司 Batis 镜头
    • Award badge from CHIP rating the ZEISS Batis 2.8/18 mm lens as "Sehr gut" (very good) in September 2016.

    • Award badge from FOTOHITS magazine, issue 09/2016, rating ZEISS prime lenses for Sony A7 cameras as "EXZELLENT".

    • Award badge from Digital Photo magazine rating the ZEISS Batis 2/25 lens as "SUPER" in October 2015.

    • Award graphic from “Pictures – das Foto-Magazin” showing a 10/15 rating for the ZEISS Batis 2.0/25 lens with the label “ÜBERRAGEND.”

    • Award label from FOTOHITS magazine, issue 7-8/2015, rating ZEISS prime lenses for E-mount cameras as "EXZELLENT."

    • Digital Photo award badge with the text "SUPER", dated 10 | 2015, and referencing ZEISS Batis 1.8/85.

    • Silver award ribbon with a red center that reads "Editor's Choice 2015, Pictures - Das Foto-Magazin, ZEISS Batis 1.8/85".

    • Review graphic from "Pictures – das Foto-Magazin" showing the ZEISS Batis 1.8/85 lens rated 10 out of 15 with the verdict "ÜBERRAGEND" (outstanding).

    • Award badge from FOTOHITS magazine issue 7-8/2015 rating ZEISS prime lenses for E-mount cameras as "EXZELLENT".

    • Rating badge from "Pictures Das Foto-Magazin" showing the ZEISS Batis 2.8/135 lens receiving 4.5 out of 5 cameras with the rating "SEHR GUT".

A ZEISS camera lens is displayed next to an uncapped silver fountain pen on a white background.
A ZEISS camera lens is displayed next to an uncapped silver fountain pen on a white background.

产品注册

获得延长保修。

自购买之日起，蔡司对所有摄影镜头授予两年的保修期。经过蔡司在线注册之后，该保修期还可延长为三年。尽管蔡司保修延长计划已在很多国家适用，但只能在该产品购买的国家/地区进行保修期内的索赔。

注册您的产品
蔡司摄影

查找蔡司经销商

请输入您的地址，以便寻找您附近的经销商：

更新您的cookie首选项，以启用谷歌地图。

您当前的cookie首选项已阻止此第三方内容。只需在首选项中同意跟踪“功能性”技术，即可查看地图。
Finder
  • 1

    Sony 是 Sony Corporation 的注册商标。
  • 2

    基于APS-C格式
  • 3

    近距离拍摄
