蔡司热成像仪

蔡司DTI 6

让更多细节无所遁形。这一切要归功于出色的图像质量。

蔡司DTI 6热成像摄像头提供前所未有的图像质量，使您能够识别出卓越的细节水平。

立即探索更多详情
  • 卓越的观测体验，搭载ZSIP Pro
  • 可拆卸电池
  • 高分辨率AMOLED显示屏

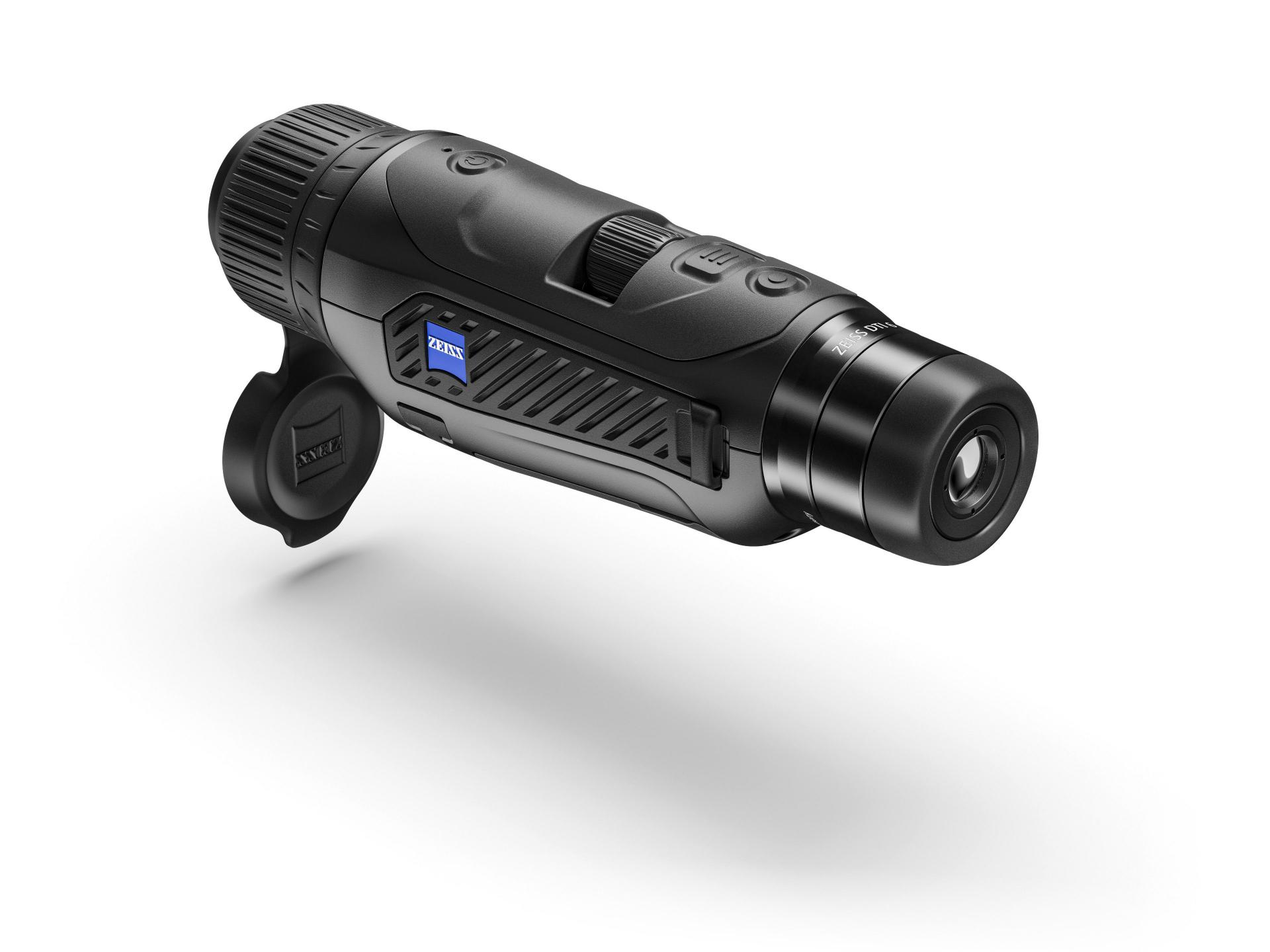

  • Black ZEISS thermal imaging monocular with textured grip, control buttons on top, and an open lens cap.

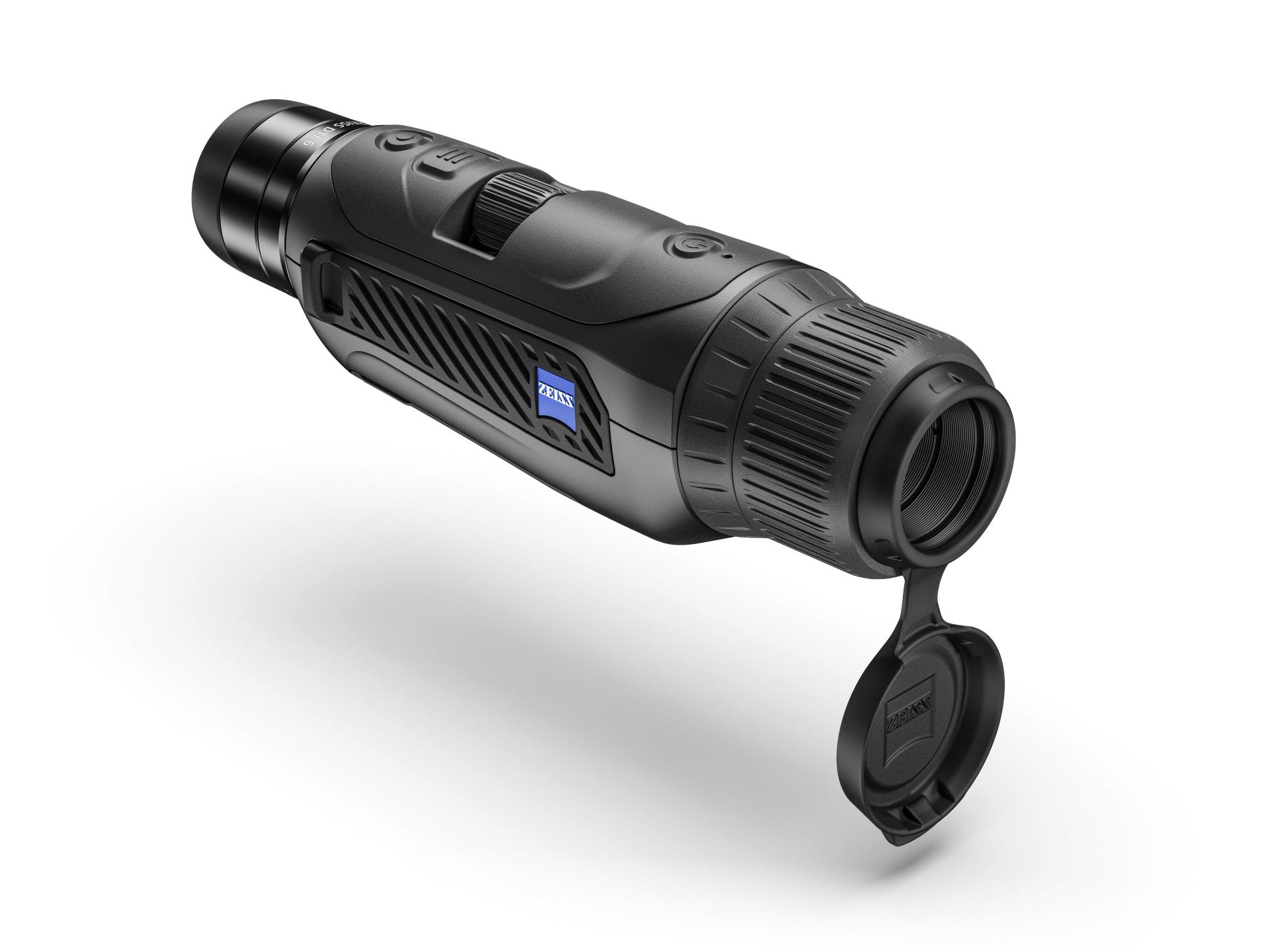

    Black ZEISS thermal imaging monocular with textured grip, control buttons on top, and an open lens cap.

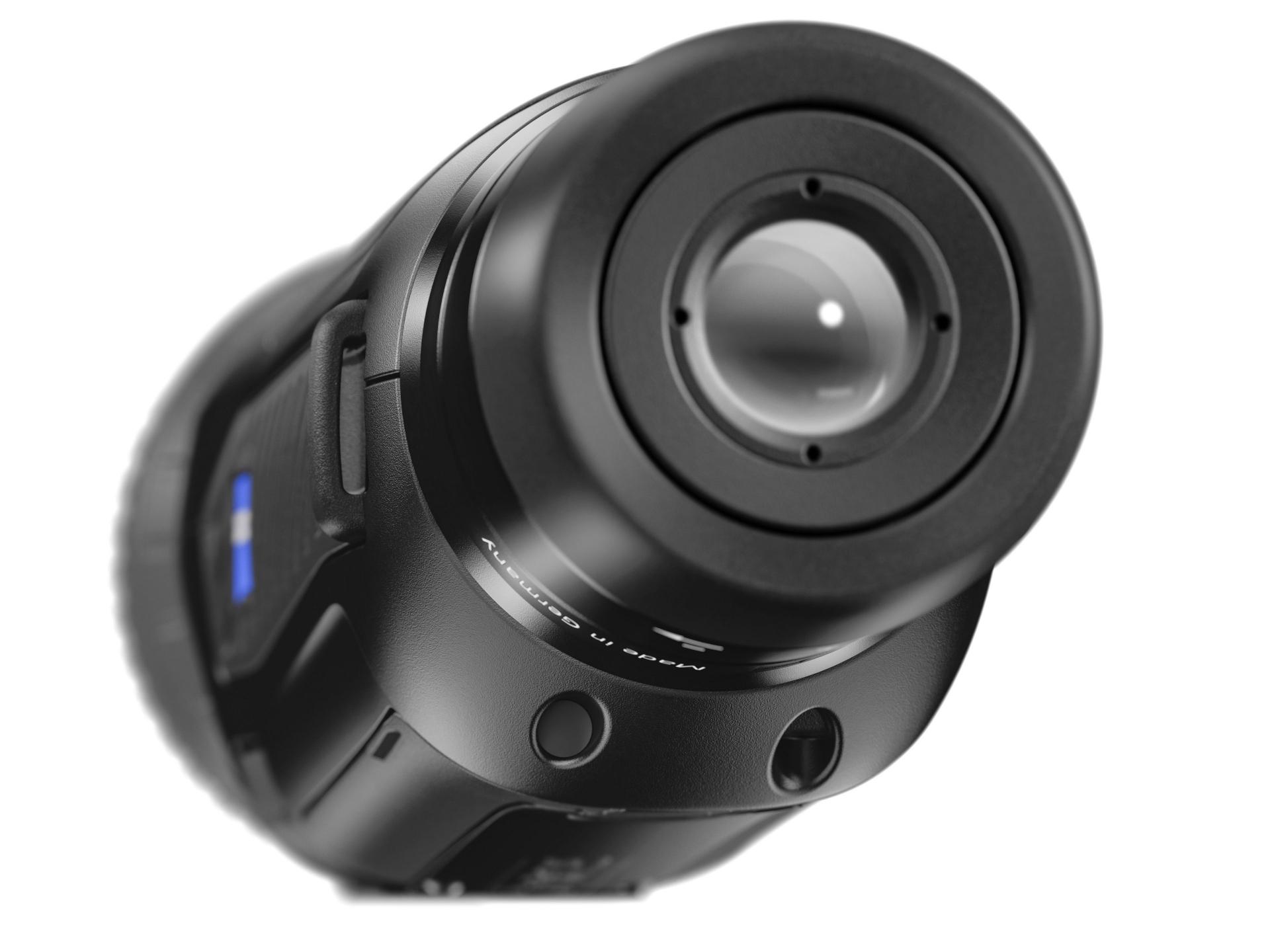

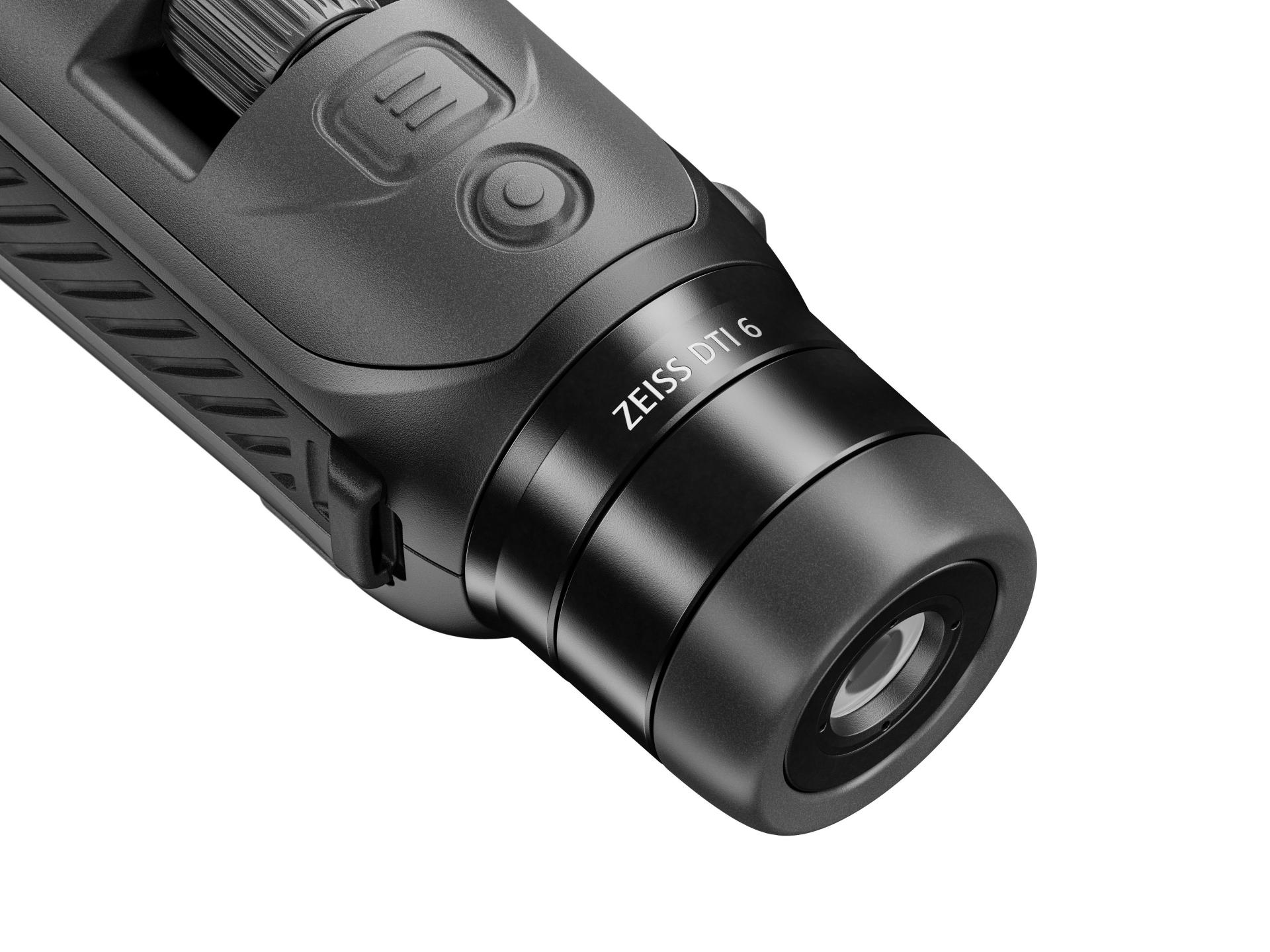

  • Close-up view of a black ZEISS optical device featuring a prominent lens and control buttons.
    Close-up view of a black ZEISS optical device featuring a prominent lens and control buttons.

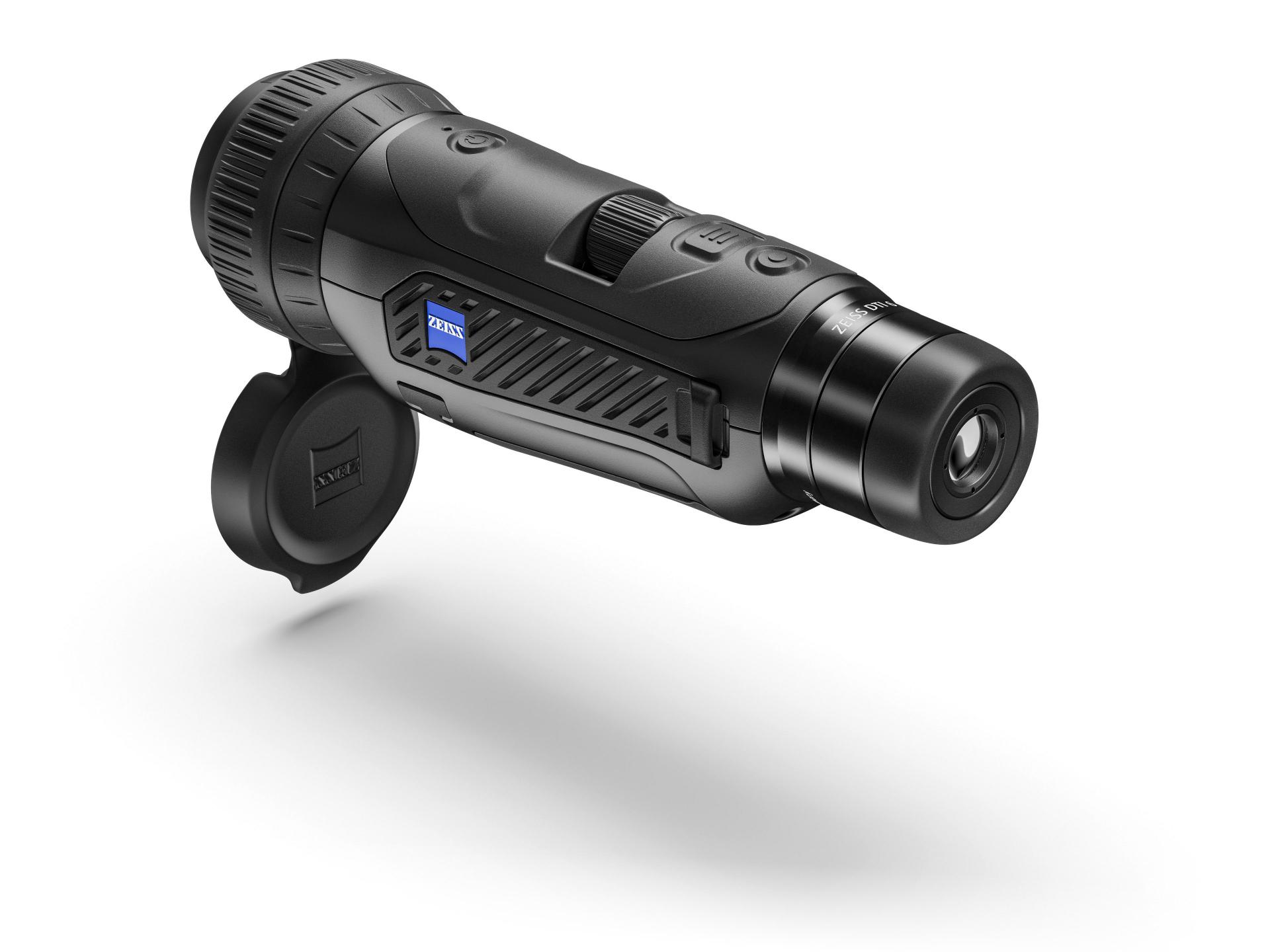

  • Compact black ZEISS thermal imaging monocular with textured grip, lens cover, and ZEISS logo on the side.
    Compact black ZEISS thermal imaging monocular with textured grip, lens cover, and ZEISS logo on the side.

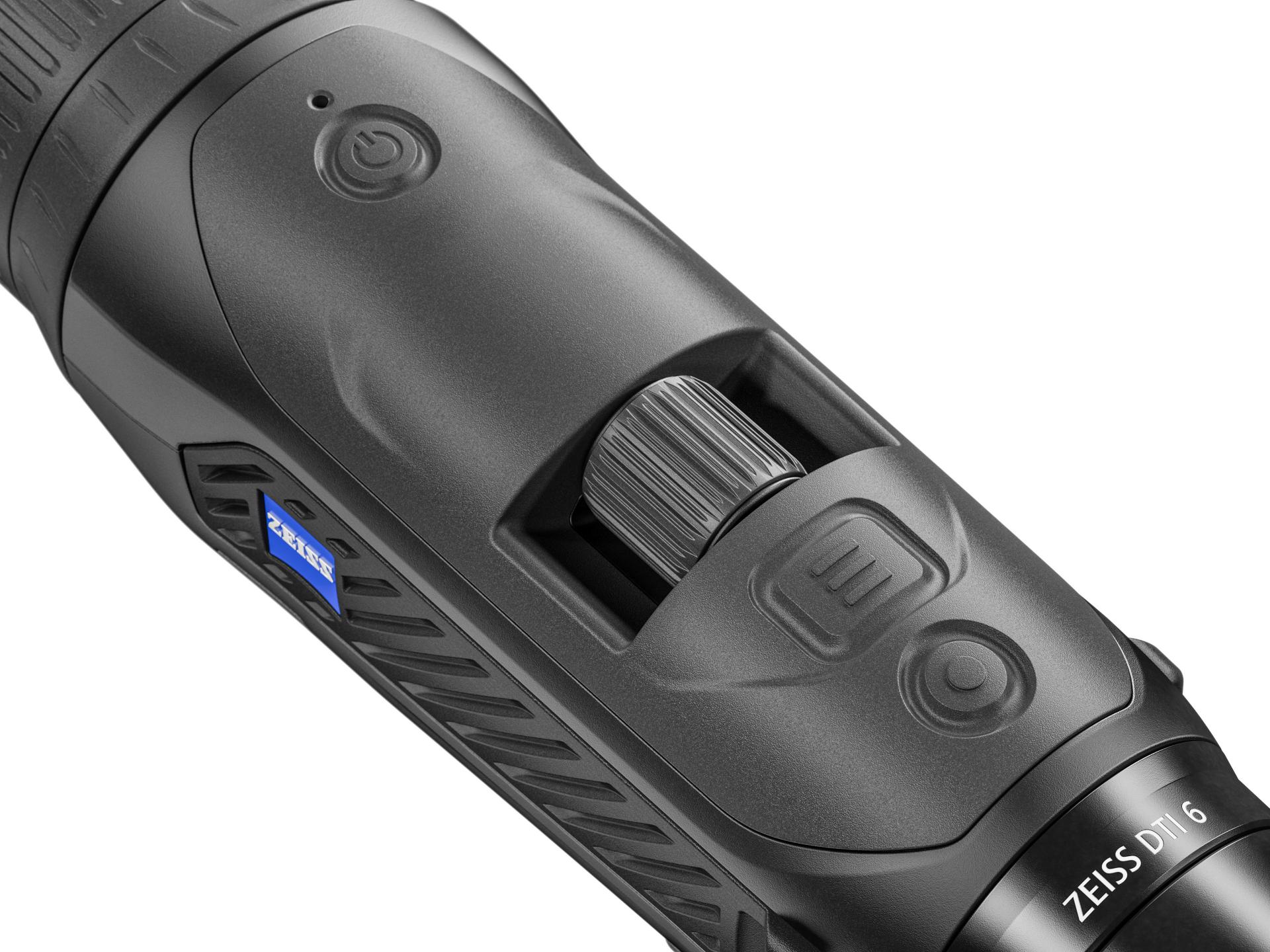

  • Close-up view of the control panel on a ZEISS DTI 6 thermal imaging device, showing buttons, a textured dial, and the ZEISS logo.
    Close-up view of the control panel on a ZEISS DTI 6 thermal imaging device, showing buttons, a textured dial, and the ZEISS logo.

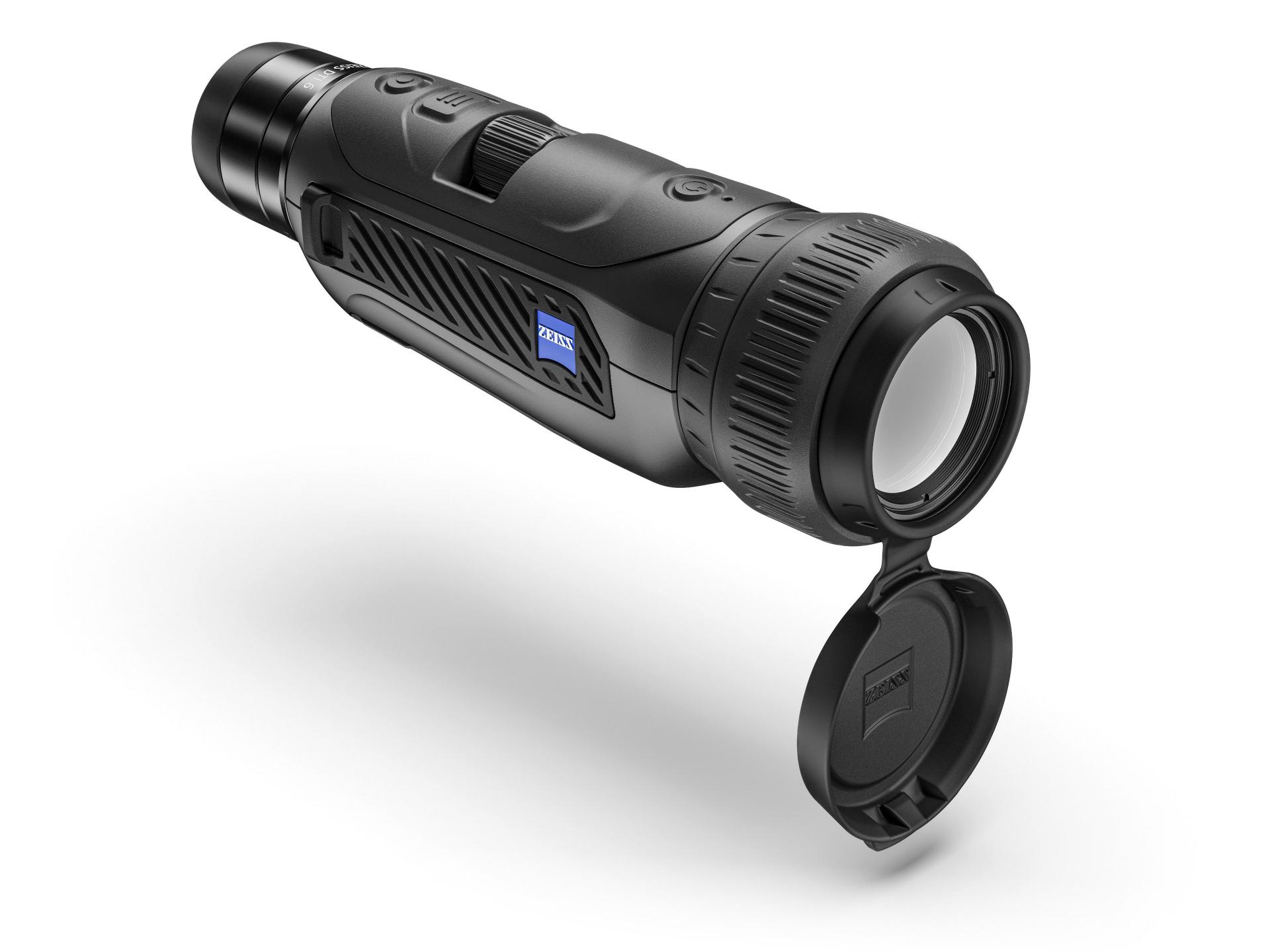

  • Black ZEISS thermal imaging monocular with a textured grip, visible ZEISS logo, and an open lens cap.
    Black ZEISS thermal imaging monocular with a textured grip, visible ZEISS logo, and an open lens cap.
  • Close-up view of the ZEISS DTI 6 thermal imaging camera showcasing its lens and control buttons.
  • Compact black ZEISS thermal imaging monocular with textured grip, control buttons, and protective lens cap.

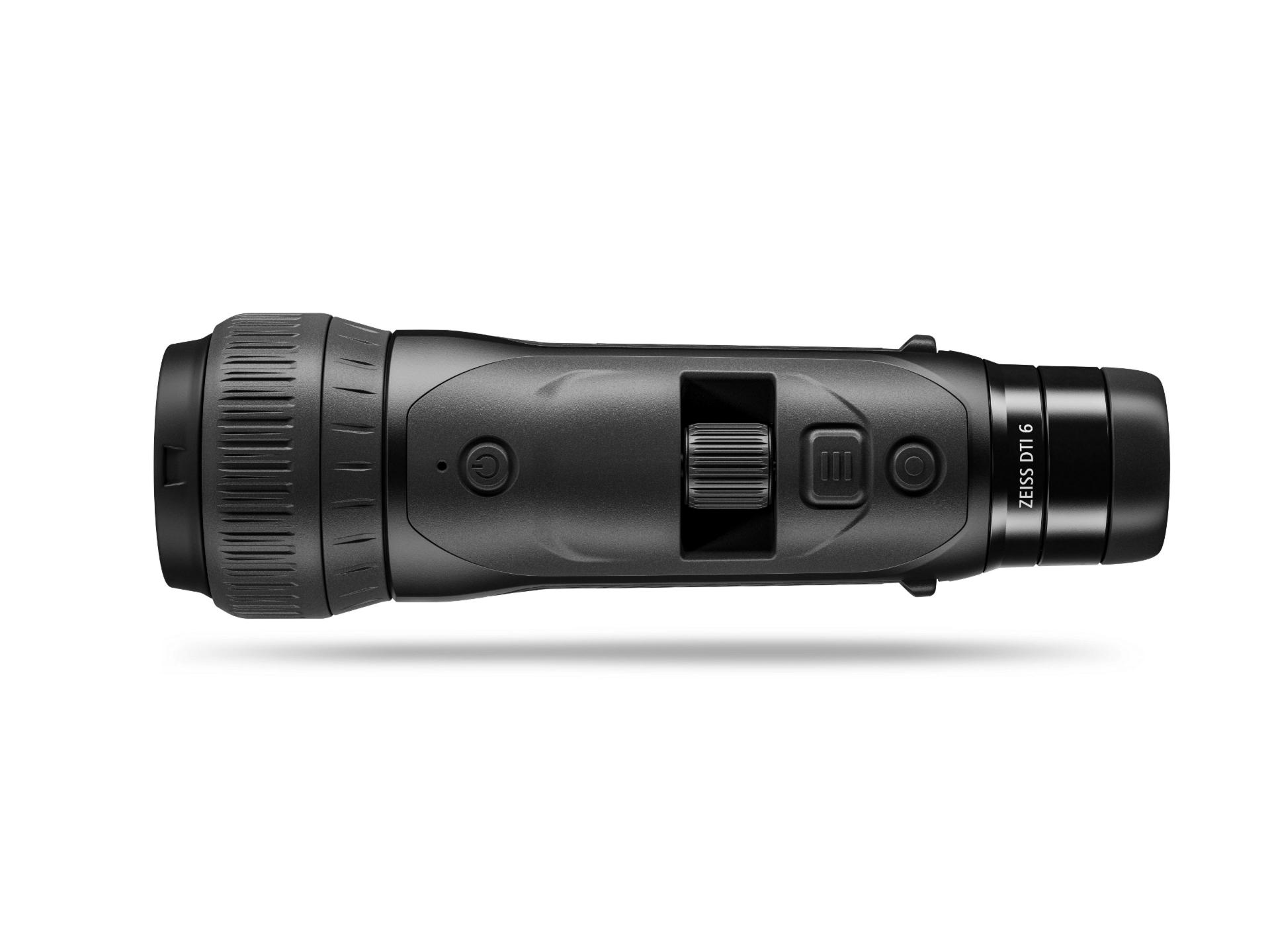

  • Top view of a black ZEISS thermal imaging monocular with control buttons and textured focus ring.

在观察鸟类和其他野生动物时，每一个细节都至关重要。凭借DTI 6热成像摄像头，您不会错过任何细节——无论白天还是黑夜。蔡司创新的智能图像处理（ZSIP Pro）算法通过640x480像素传感器（12微米像素间距）和1024x768高清AMOLED显示屏，呈现清晰、高对比度的热成像画面。ZSIP确保您能在复杂环境和低热对比度条件下精准识别关键细节。

电池支持6.5小时连续使用，并可快速便捷地更换，以便随时识别更多细节。

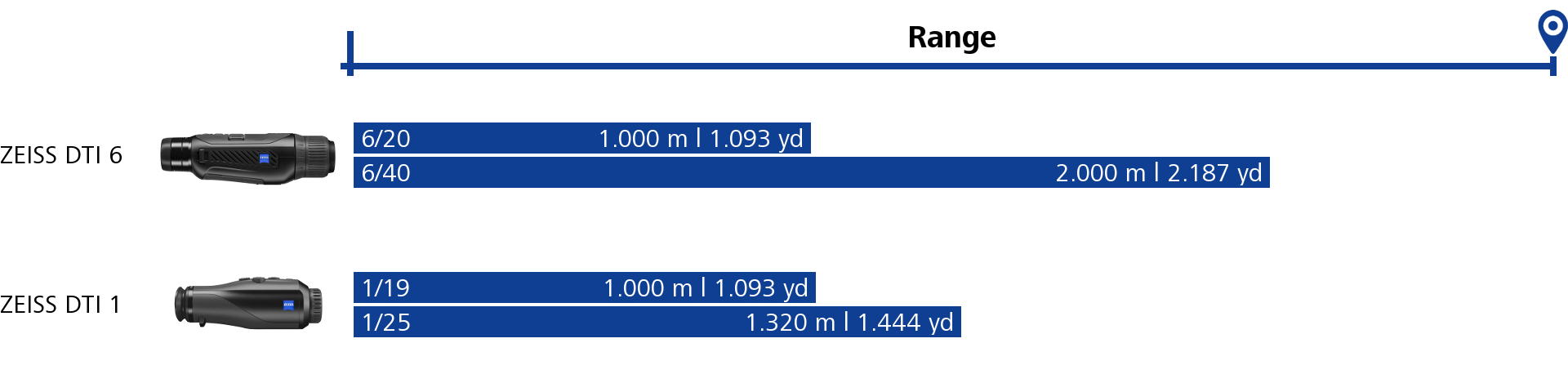

可用型号

蔡司DTI 6

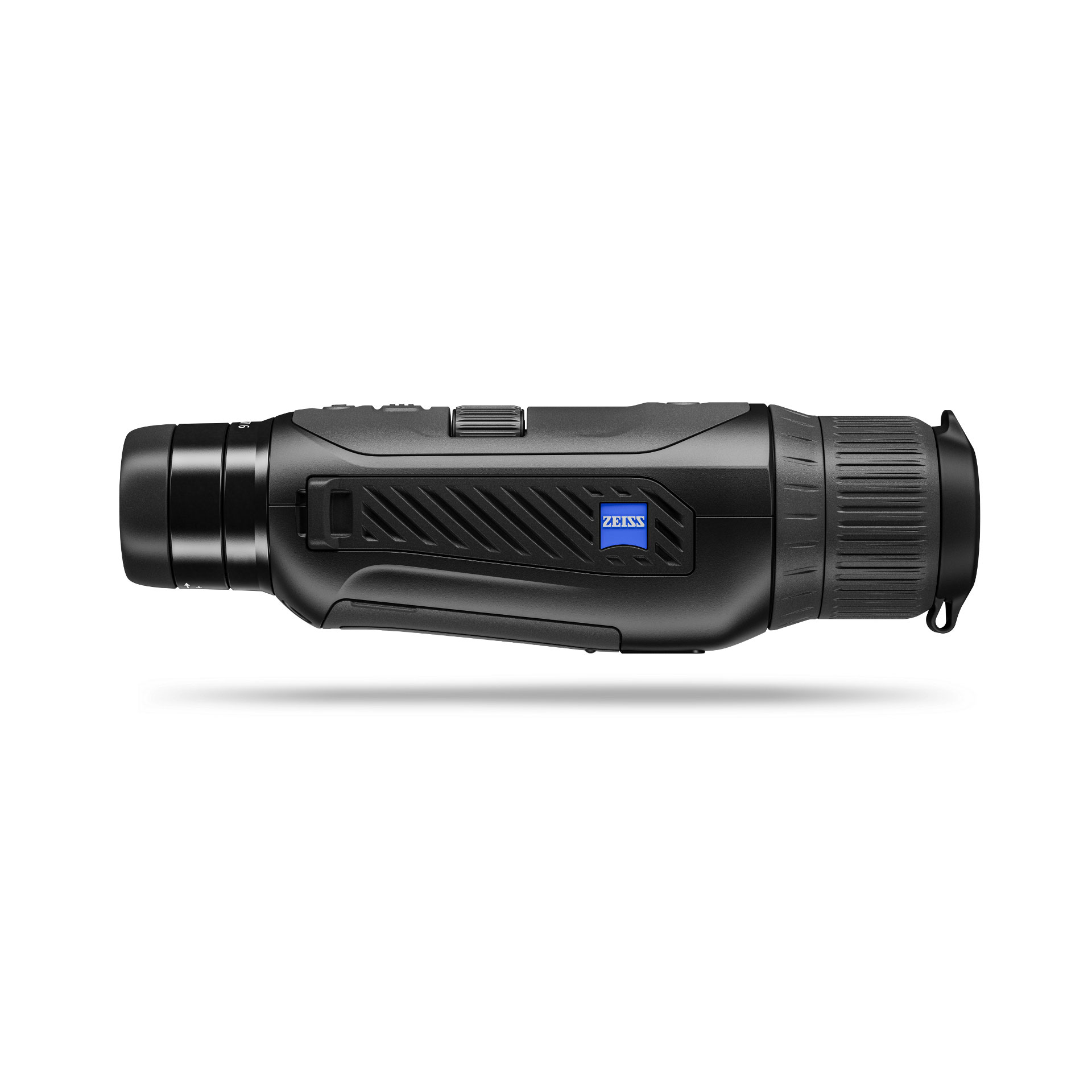

  • Black ZEISS thermal imaging monocular with textured grip and ZEISS logo on the side, shown in a side profile view.
    DTI 6/20

         100米视场 (yds):
    38 m (114 ft)
    范围:
    1,000 m (1,093 yd)
    光学倍率:
    1.5 x

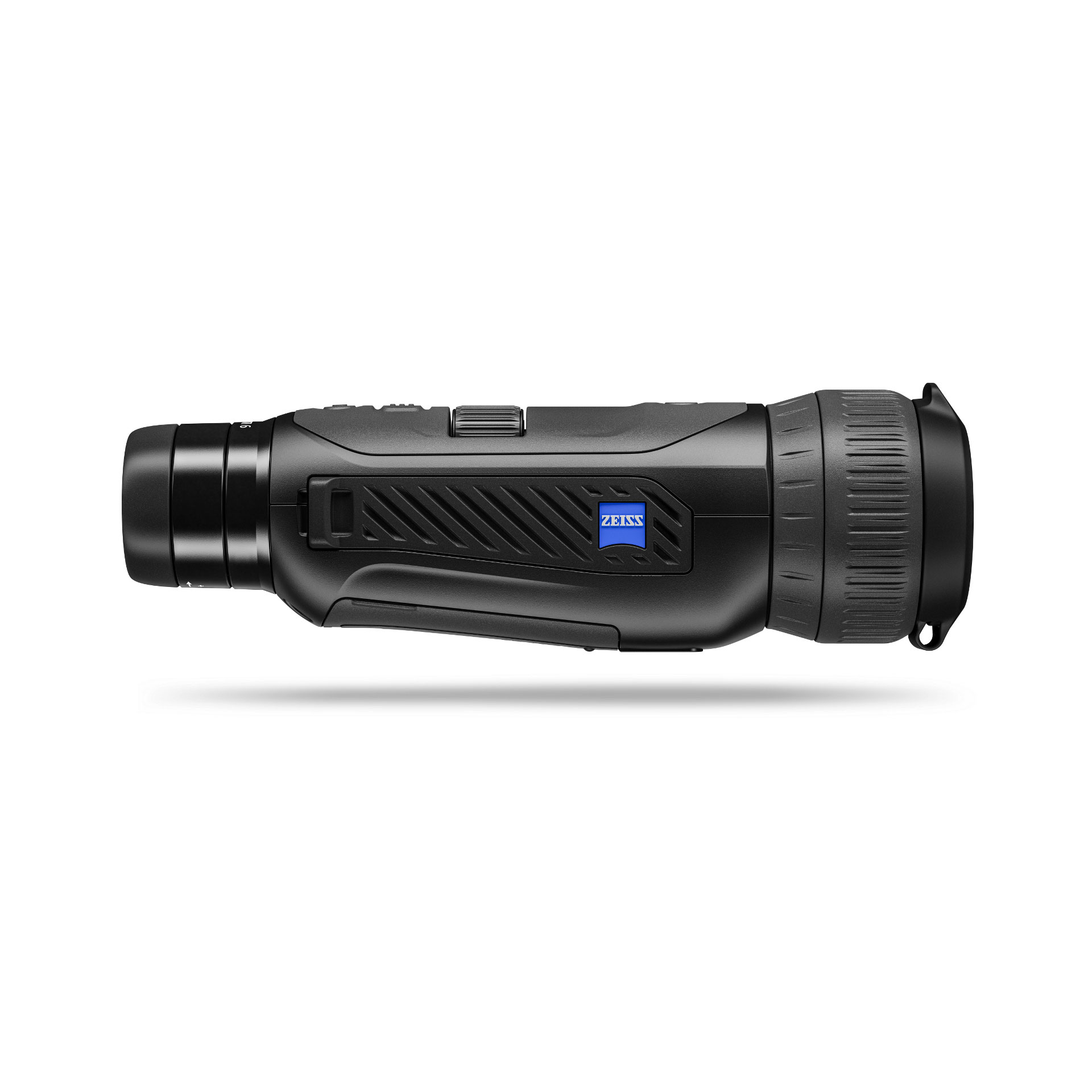

  • Side view of a black ZEISS thermal imaging monocular with a textured grip and the ZEISS logo on the body.
    DTI 6/40

         100米视场 (yds):
    19 m (57 ft)
    范围:
    2,000 m (2,187 yd)
    光学倍率:
    3.0 x
蔡司DTI 6
查找经销商
A woman standing in a grassy field holds a ZEISS spotting scope and looks upwards.

在操作方面采用的人体工学设计堪称同类之冠

全新设计的滚轮左右手操作皆可，方便使用者快速精准地选择缩放等级或菜单项，即使在身体紧张的情况下或甚至佩戴手套时，亦能如此。专门开发的目镜拥有极大的主观视野，形同一幅双筒望远镜。为使用者打造极度舒适的沉浸式观察体验，让一切尽在掌控。

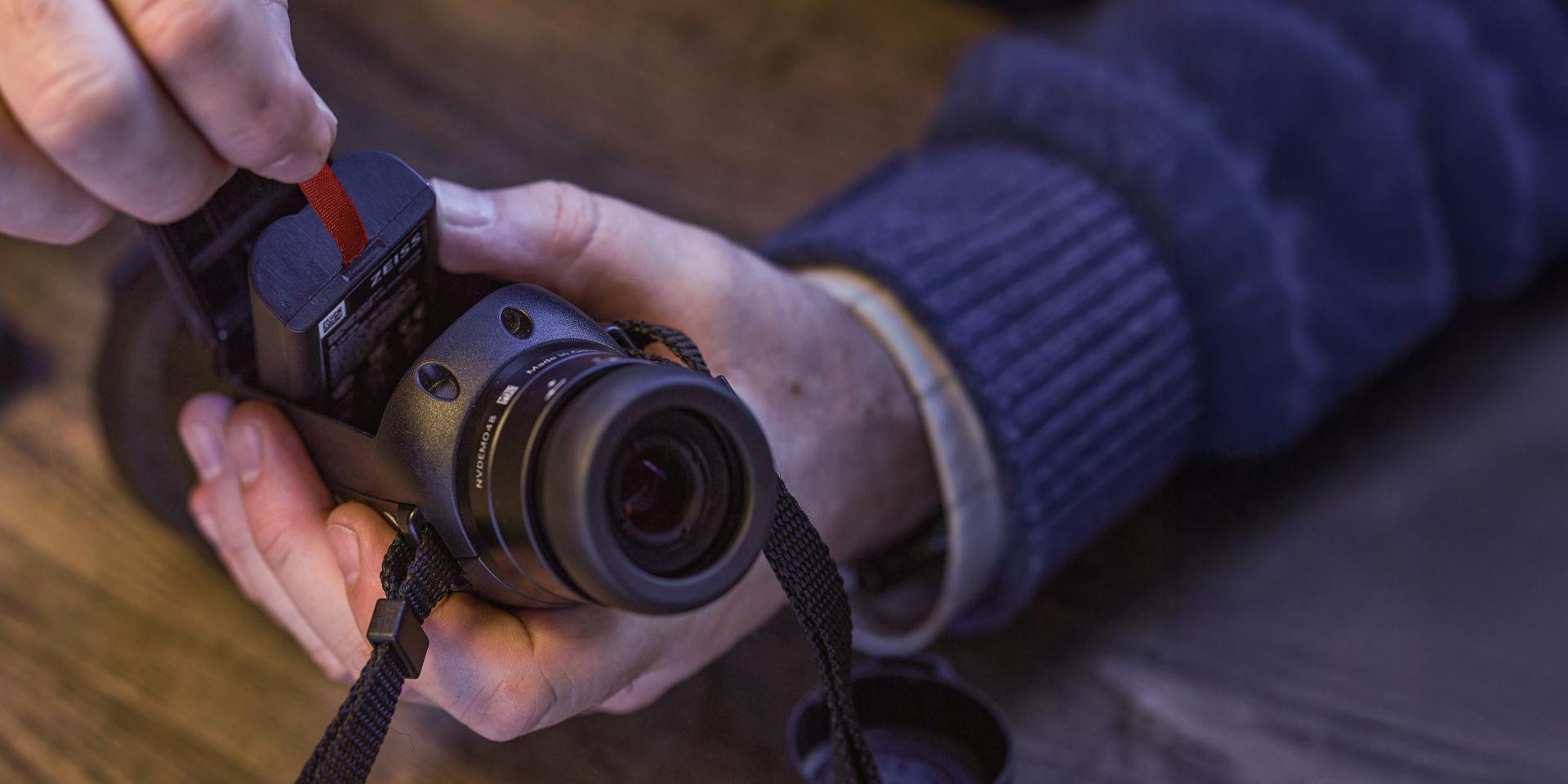

A person inserts a memory card into the slot of a compact ZEISS DTI 6.

创新的电源管理

DTI 6电池续航时间长达6.5小时，易于更换。电池也可使用标准移动电源充电，确保观察者永远不会为没电发愁。待机模式无需触控即可启用，在拿起或放下时，DTI 6会自动开启或关闭。

Two people standing in a grassy field using ZEISS binoculars to observe something in the sky.

高度定制化

大量配置选项让您能够定制热成像相机，使DTI 6更具个性化。从选择偏好的变焦速度到调整待机定时器的时长和LED配置，直至创建自己的调色板，通过定制DTI 6满足您的个人喜好和具体需求。

A person is assembling or cleaning a ZEISS monocular device on a wooden table with a ZEISS cleaning kit nearby.

完美图像设置，不惧任何挑战

根据您的具体需求定制DTI 6。将个人设置保存至多达四个观察配置文件中，做好随时应对不同情况的准备。另外，您还能够根据当前的观察情况从两个可互换的镜头中准确挑选出一款，而这只需一眨眼的功夫即可完成。预设的雾天、通用、发现和识别观察模式，有助于根据相应的观察情况定制视图。

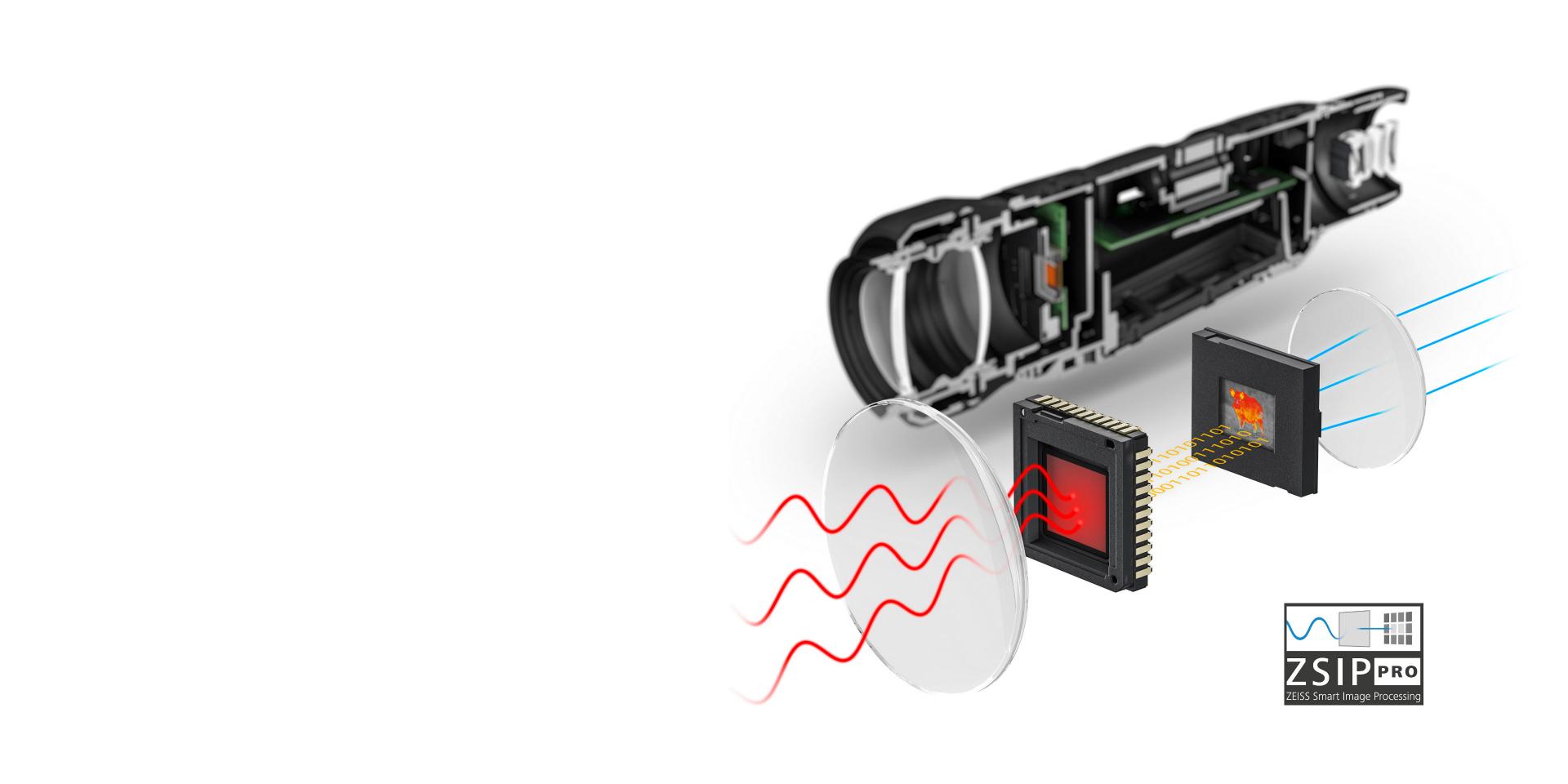

Cutaway view of a ZEISS optical device showing internal components alongside lenses, imaging sensors, and the ZSIP Pro technology logo.

卓越的观测体验，搭载ZSIP Pro

创新的智能图像处理算法（ZSIP）使观察者能够可靠地检测和识别物种。结合640x480像素传感器（12微米像素间距）和1024x768 AMOLED显示屏，ZSIP可提供高对比度和详细的图像。该技术由德国蔡司研发。

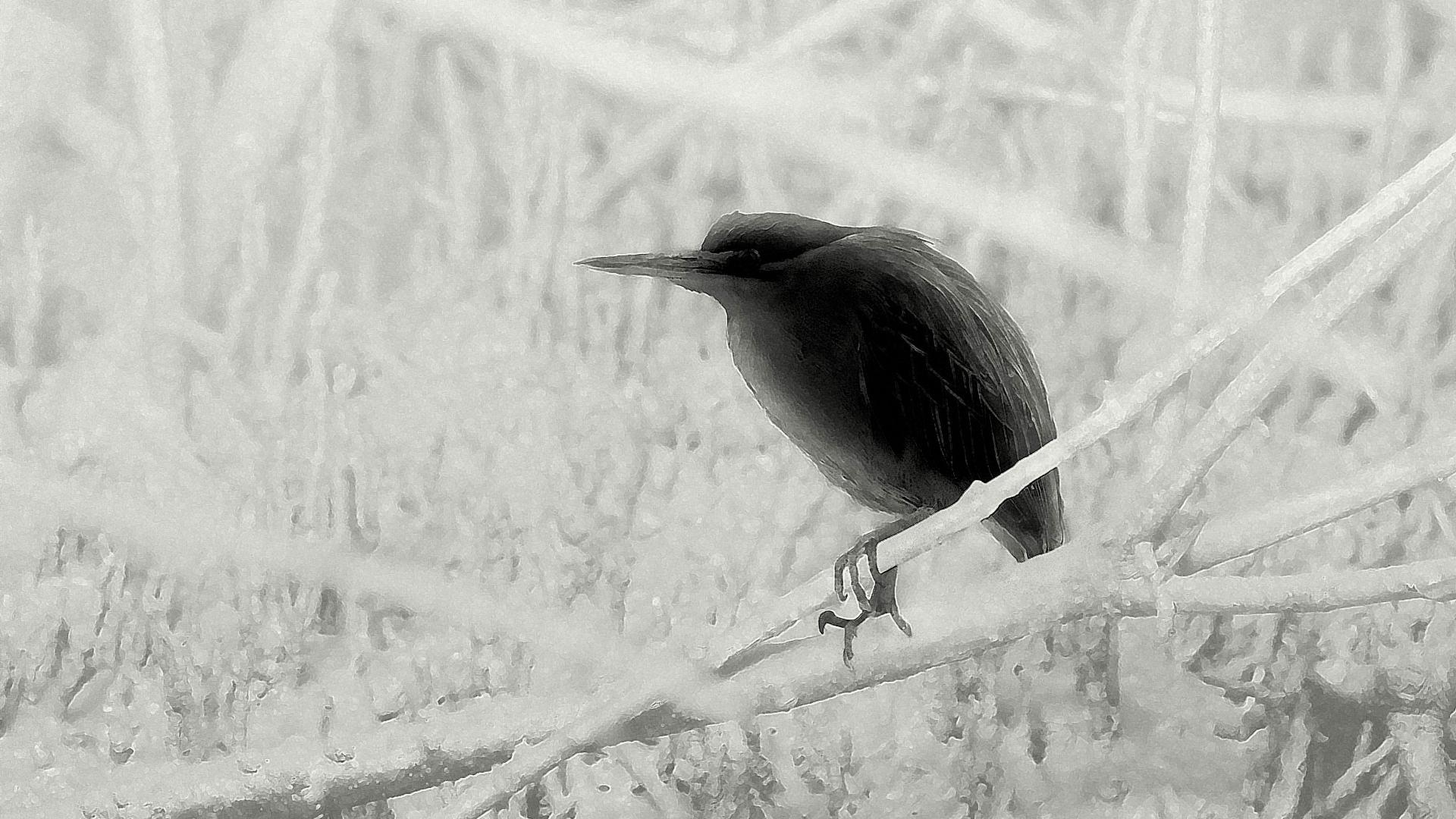

  • A bird perched on a frosty branch in a snowy, high-contrast landscape captured in black and white.

    四种预设观察模式

    不同的环境条件需要不同的仪器设置。DTI 6配备四种预设观察模式：通用模式、检测模式、雾天模式和识别模式。在识别模式下，关键识别特征会被放大显示。环境细节显示减少，以提升识别效率。

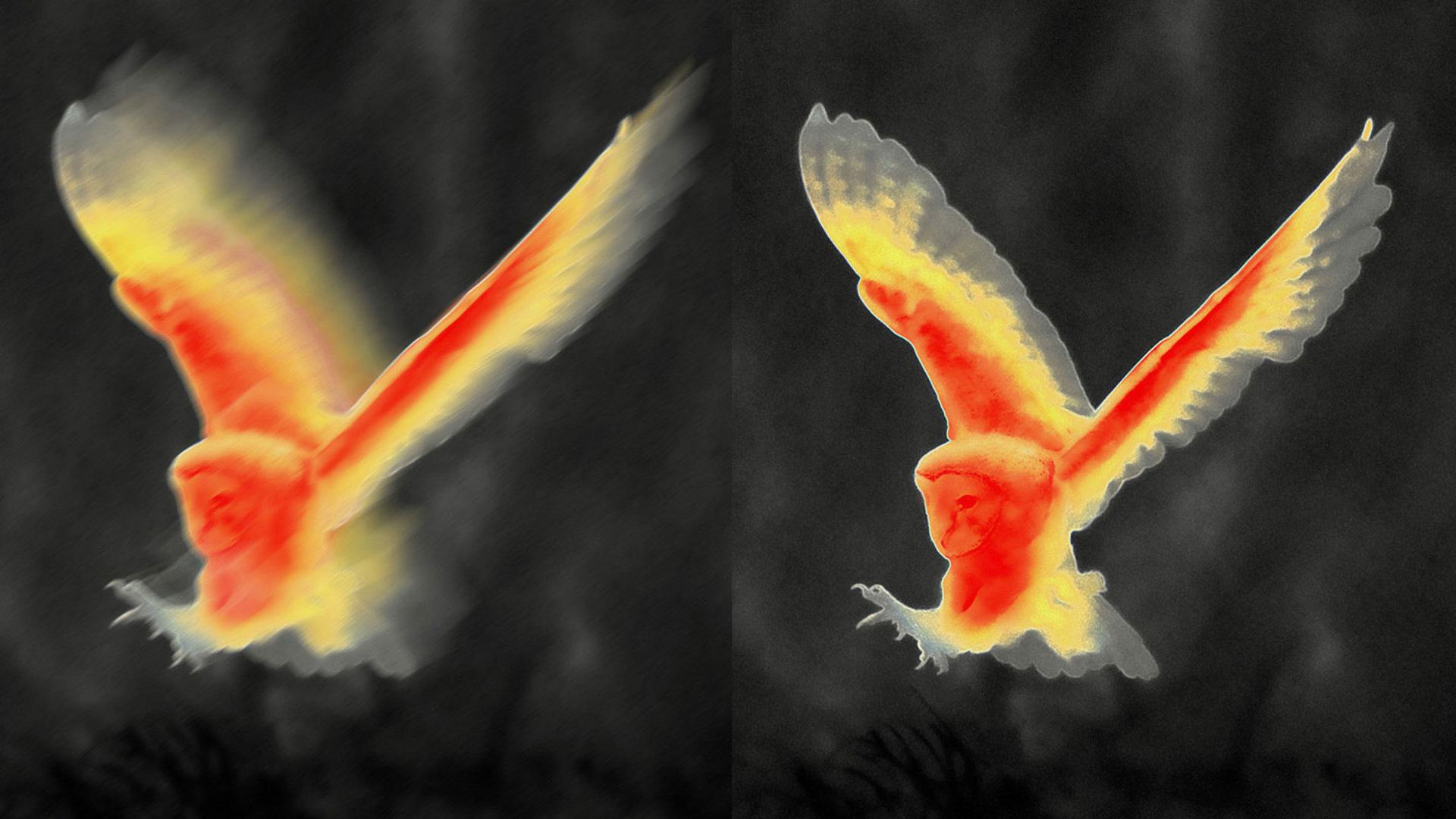

  • Side-by-side thermal images of a bird in flight, with the right image appearing sharper and more detailed than the left.

    高帧率

    蔡司DTI相机的显示帧率为50Hz。这一参数是指显示屏的每秒刷屏次数。较高的显示帧率可减少图像的闪烁，进而能够降低数小时围猎所带来的眼部疲劳。

  • Two people are observing the forest through ZEISS binoculars while standing among dense green foliage.

    可自定义设置

    自然观察是一项非常个性化的活动。对于热成像相机而言，每位观察者都有自己的偏好。因此，DTI允许用户精确选择哪些颜色模式处于激活状态，哪些不激活，只需点击选择所需的模式即可。同样，放大级别设置也可自定义。现在您可以根据个人喜好限制最大放大倍数。

技术参数

蔡司DTI 6

  • Focal Length

    20 mm

    Aperture

    F1.0

    Range

    1,000 m (1,093 yd)

    Field of View at 100 m (yds)

    38 m (114 ft)

    Objective Viewing Angle

    22° x 16°

    Sensor Resolution

    640 x 480

    Sensor Pixel Pitch

    12 μm

    NETD Value

    ≤ 35 mK

    Display Resolution

    1024 x 768

    Display Frame Rate

    50 Hz

    Display Type

    AMOLED

    Optical Magnification

    1.5 x

    Maximum Digital Zoom

    10 x

    Zoom Steps

    0.1 – 1.0 x

    Battery Type

    Li-Ion

    Battery Run Time

    6,5 h

    Internal Memory

    16 GB

    WLAN

    2.4 Ghz

    Bluetooth

    +

    Livestream Function (Video & Photo)

    +

    Compatibility

    ZEISS Hunting App | ≥ Windows 10

    Operating Temperature

    − 10 °C | + 50 °C (+ 14 °F | + 122 °F)

    Length x Width x Height

    230 x 62 x 68 mm (9.1 x 2.4 x 2.7")

    Weight

    690 g (1.52 lbs)

  • Focal Length

    40 mm

    Aperture

    F1.0

    Range

    2,000 m (2,187 yd)

    Field of View at 100 m (yds)

    19 m (57 ft)

    Objective Viewing Angle

    11° x 8°

    Sensor Resolution

    640 x 480

    Sensor Pixel Pitch

    12 μm

    NETD Value

    ≤ 35 mK

    Display Resolution

    1024 x 768

    Display Frame Rate

    50 Hz

    Display Type

    AMOLED

    Optical Magnification

    3.0 x

    Maximum Digital Zoom

    10 x

    Zoom Steps

    0.1 – 1.0 x

    Battery Type

    Li-Ion

    Battery Run Time

    6,5 h

    Internal Memory

    16 GB

    WLAN

    2.4 Ghz

    Bluetooth

    +

    Livestream Function (Video & Photo)

    +

    Compatibility

    ZEISS Hunting App | ≥ Windows 10

    Operating Temperature

    − 10 °C | + 50 °C (+ 14 °F | + 122 °F)

    Length x Width x Height

    228 x 69 x 73 mm (8.9 x 2.7 x 2.9")

    Weight

    755 g (1.66 lbs)

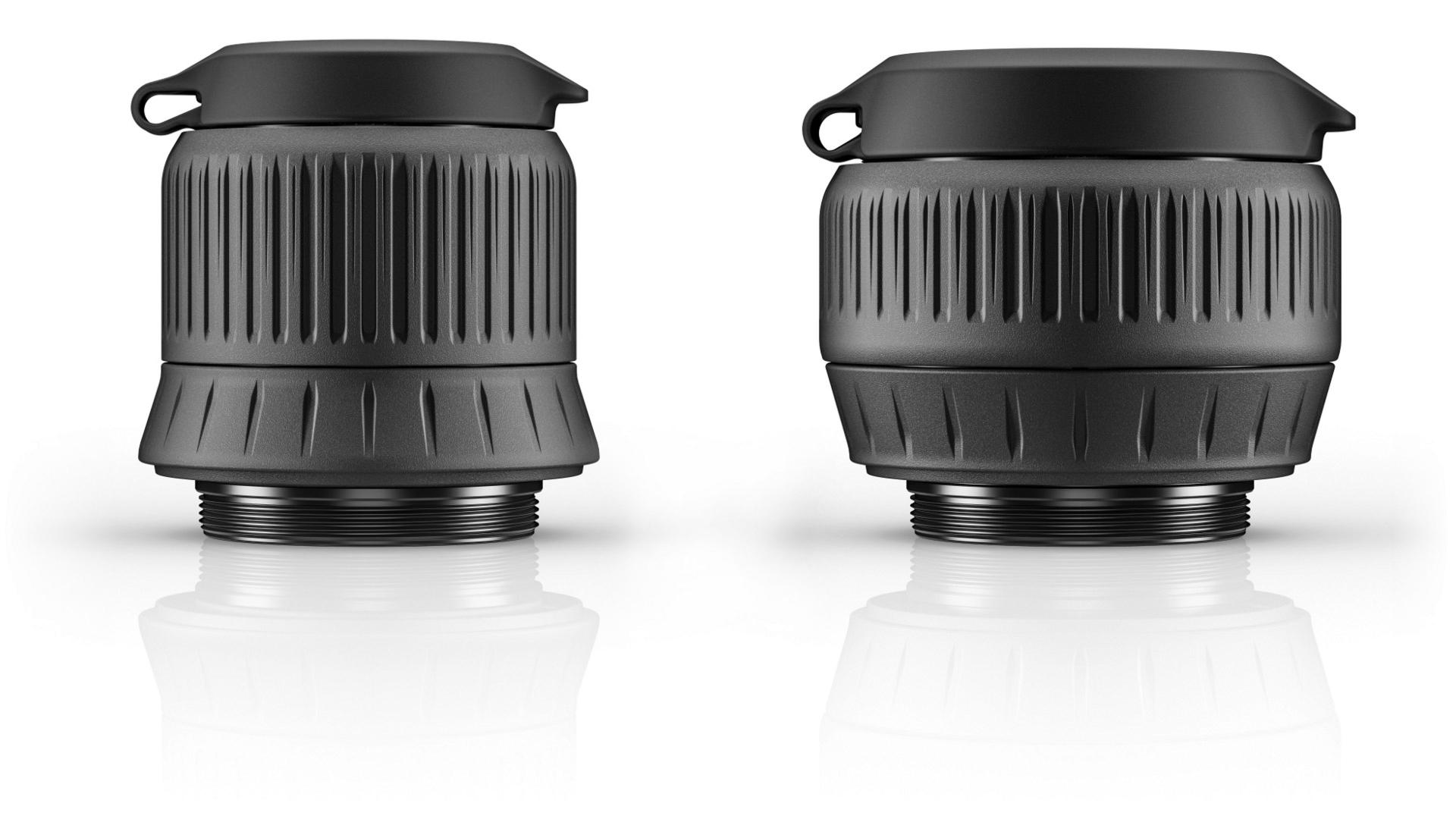

Two black ZEISS lens accessory with ribbed texture and protective cap, displayed on a white reflective surface.

蔡司热成像仪配件

用非凡配件，让体验更上一层楼。

这些配件不仅能提升热成像仪的性能和实用性，更能确保用户充分利用投资，在特定应用场景中获得最佳效果.
