蔡司Conquest HDX

凭借蔡司 Conquest HDX，您可以在自然中发现更多精彩。得益于卓越的光学性能，每一个细节都以生动清晰的画面呈现。HD概念采用完美平衡的光学系统，实现90%的光线透过率，确保色彩还原准确无误，从边缘到中心都保持锐利清晰。

凭借坚固耐用的设计和优质材料，Conquest HDX能够抵御各种恶劣环境，无论您身处何处，都能确保可靠性能。此外，精心设计的 ergonomics 使操作更加舒适，并支持个性化设置，提升使用便利性。

Conquest HDX将卓越的光学性能、坚固耐用性和人体工学设计完美融合，以极具吸引力的价格呈现，成为高端光学产品中的理想全能之选。提升您的自然体验，选择蔡司Conquest HDX。

可用型号

蔡司Conquest HDX

Conquest HDX 8x56

1,000米视场 (yds):
125 m (375 ft)
瞳孔直径:
7.0 mm
重量:
1,235 g (43.5 oz)
Conquest HDX 10x56

1,000米视场 (yds):
115 m (345 ft)
瞳孔直径:
5.6 mm
重量:
1,250 g (44.1 oz)

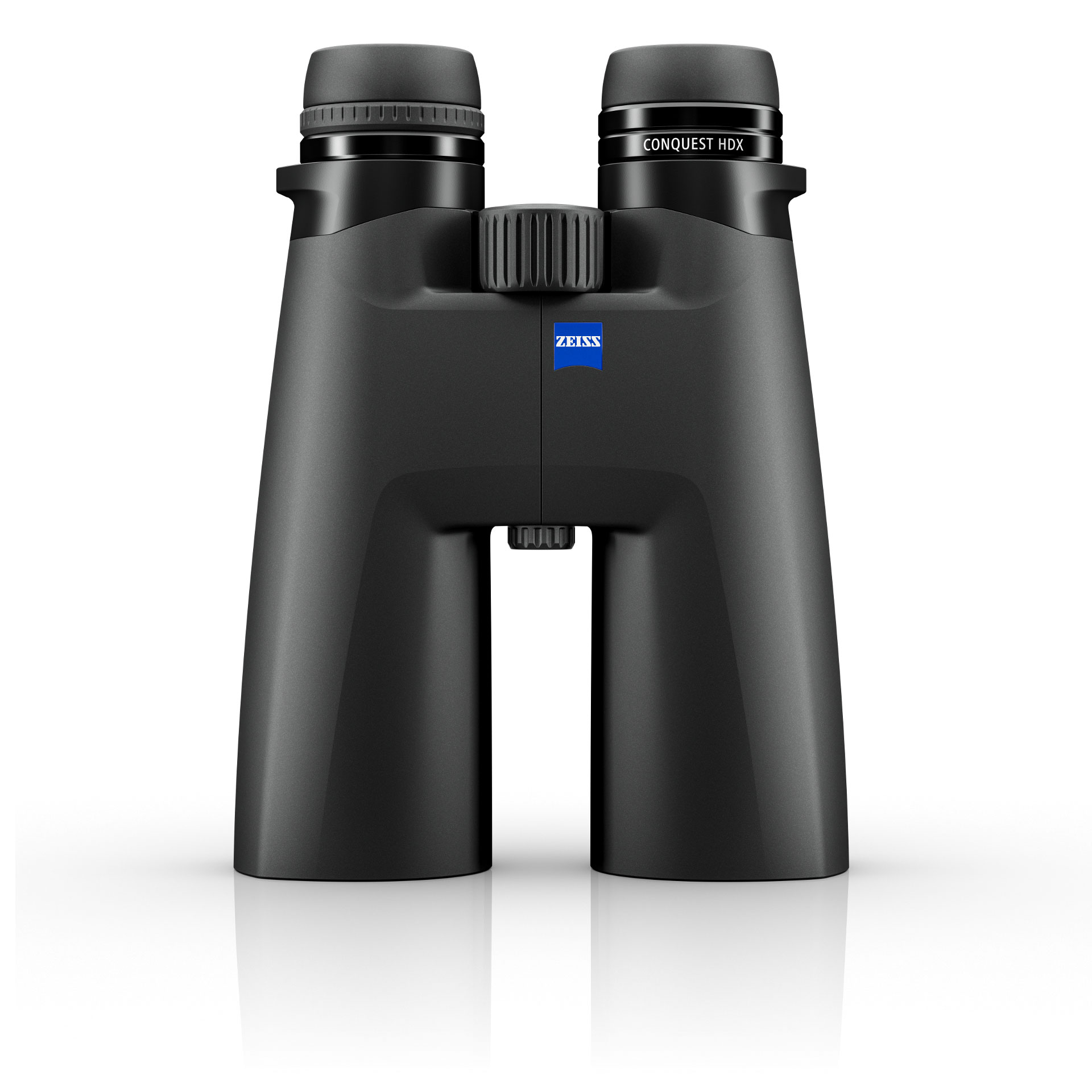

Conquest HDX 15x56

1,000米视场 (yds):
80 m (240 ft)
瞳孔直径:
3.7 mm
重量:
1,265 g (44.6 oz)

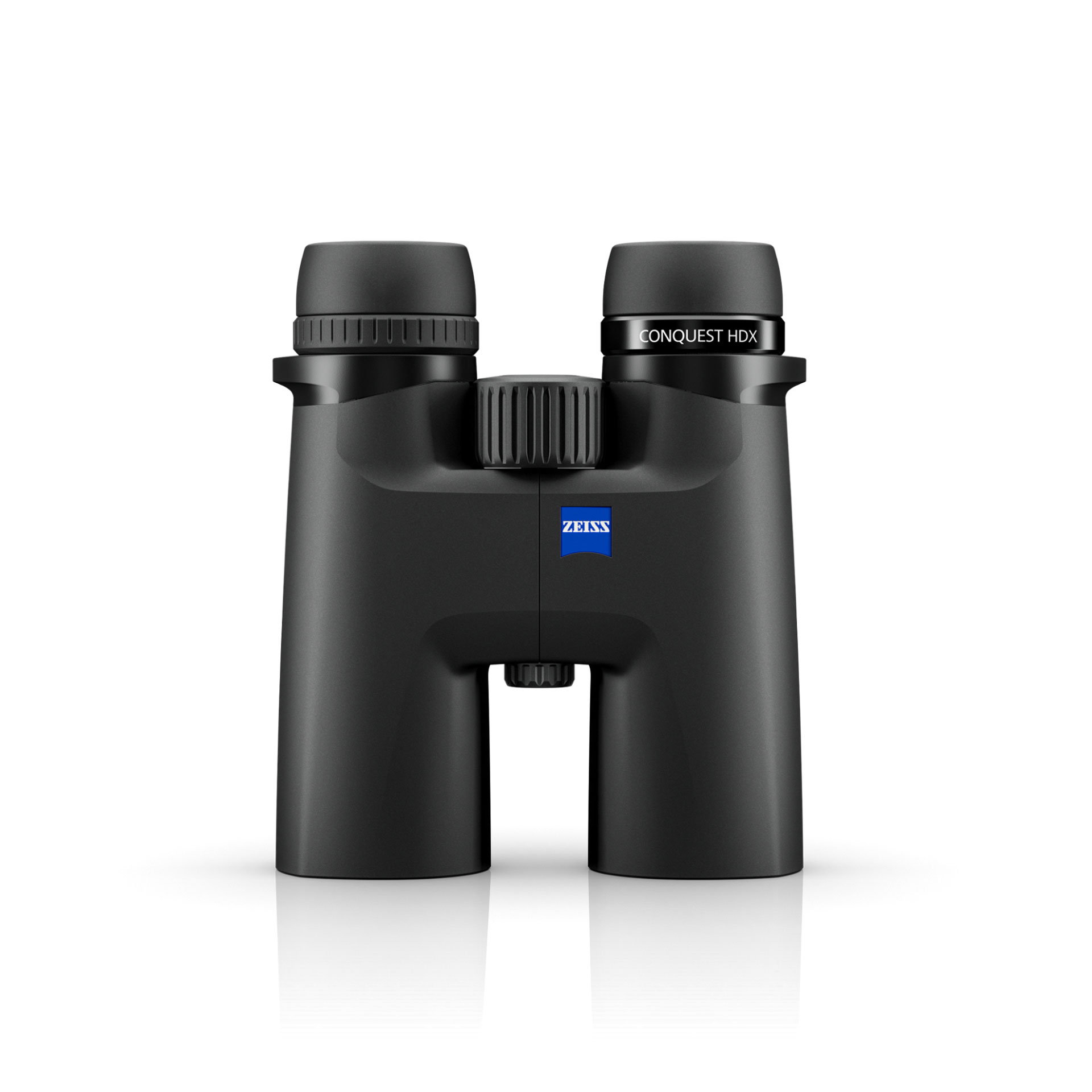

Conquest HDX 8x42

1,000米视场 (yds):
128 m (384 ft)
瞳孔直径:
5.3 mm
重量:
715 g (25.2 oz)
Conquest HDX 10x42

1,000米视场 (yds):
115 m (345 ft)
瞳孔直径:
4.2 mm
重量:
715 g (25.2 oz)
Conquest HDX 8x32

1,000米视场 (yds):
140 m (420 ft)
瞳孔直径:
4.0 mm
重量:
620 g (21.9 oz)

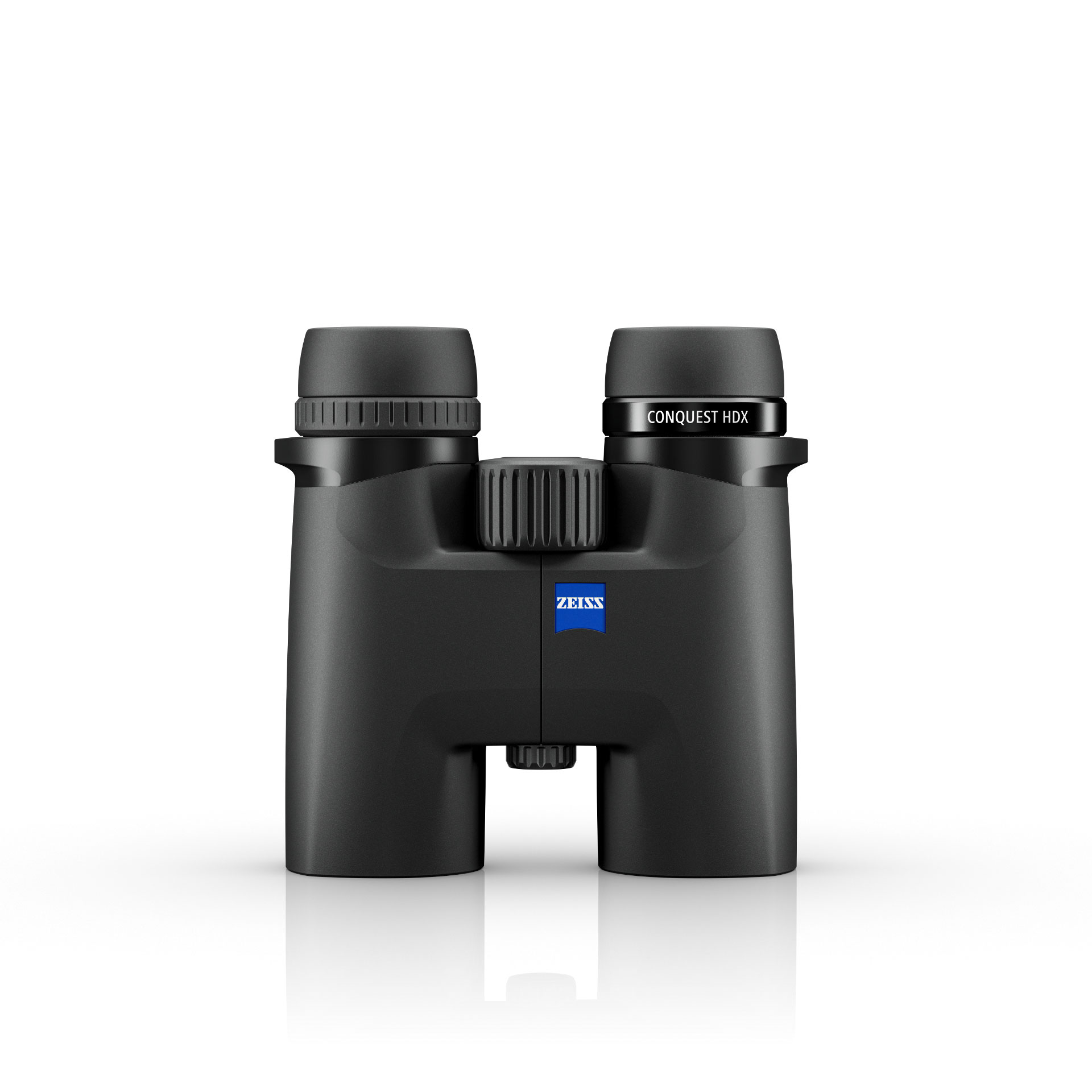

Conquest HDX 10x32

1,000米视场 (yds):
118 m (354 ft)
瞳孔直径:
3.2 mm
重量:
620 g (21.9 oz)

Conquest HDX的卓越光学性能基于HD概念：完美平衡的光学系统，结合了精选镀膜、镜片和精细调整的光学设计。它的透光率高达90%，可呈现最明亮的图像；色彩逼真，可呈现逼真的图像，无色花和偏色，可完美识别；边缘清晰，可在整个视场中呈现清晰细腻的图像。

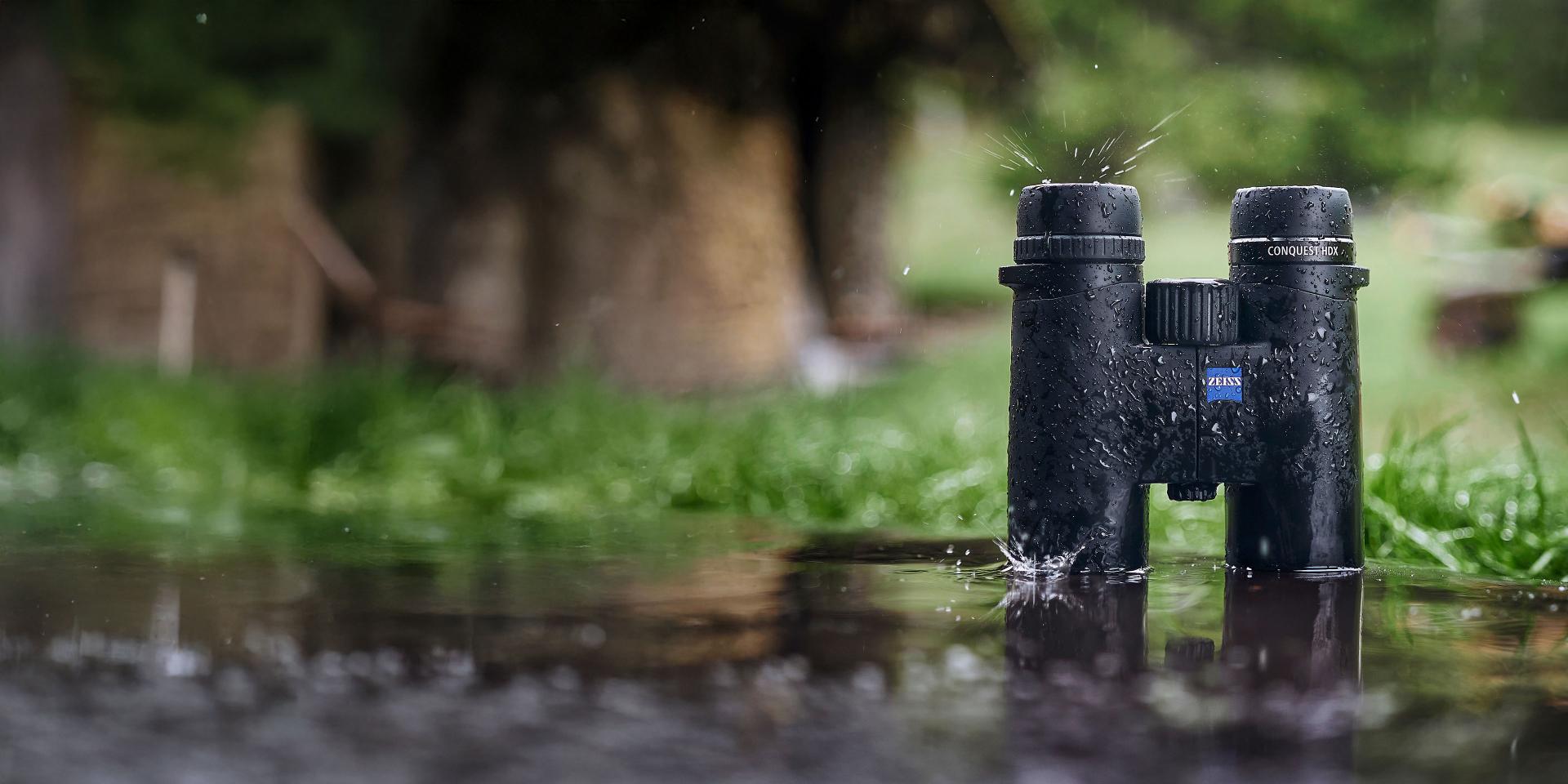

Conquest HDX专为各种环境设计，无论是极端温度、潮湿环境还是直射阳光。其耐用、防水、防震的特性得益于坚固的机械结构和轻量化镁合金机身。此外，它还覆盖有保护性橡胶护甲，确保在任何情况下都能提供完美的握持感。

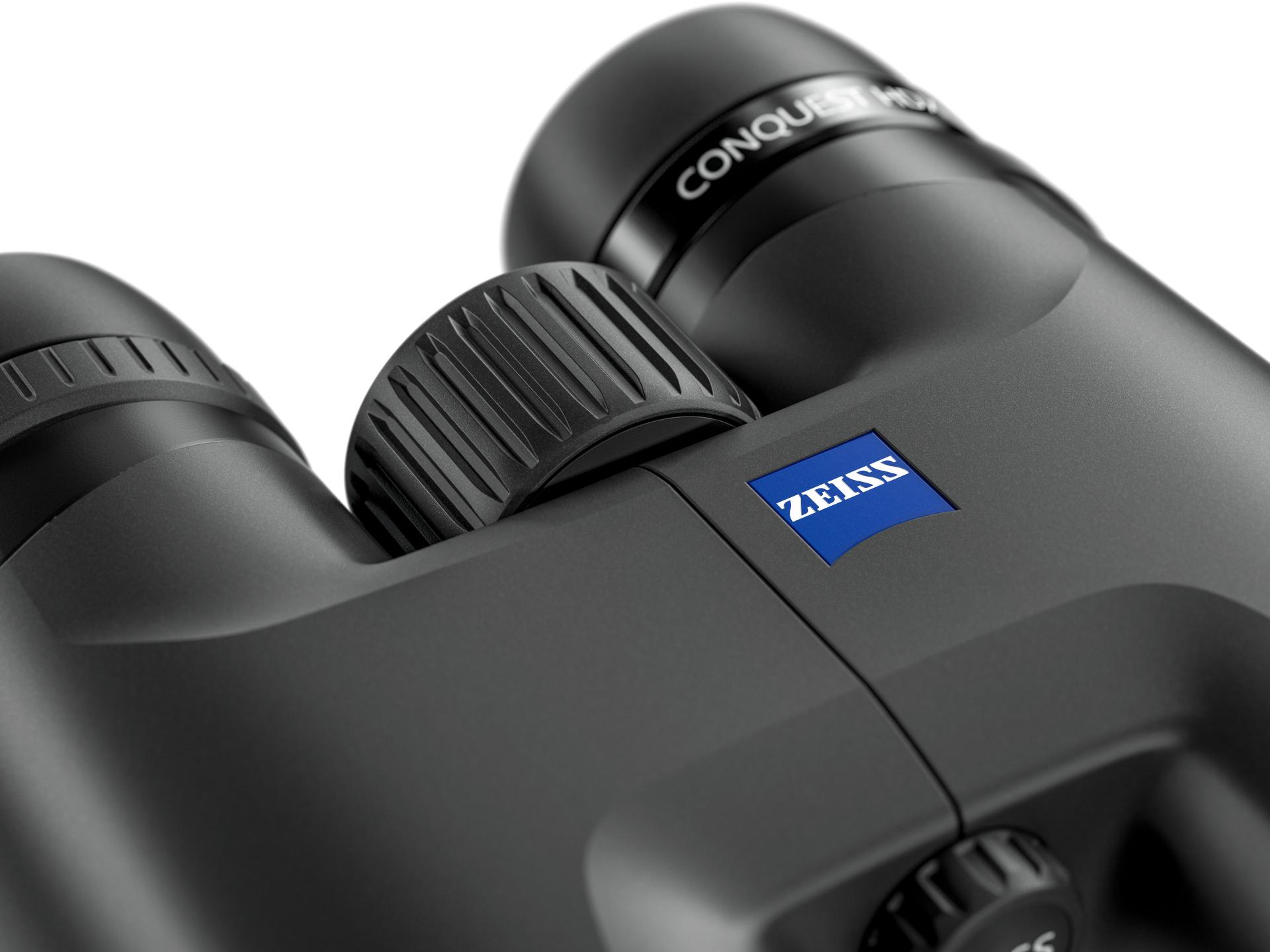

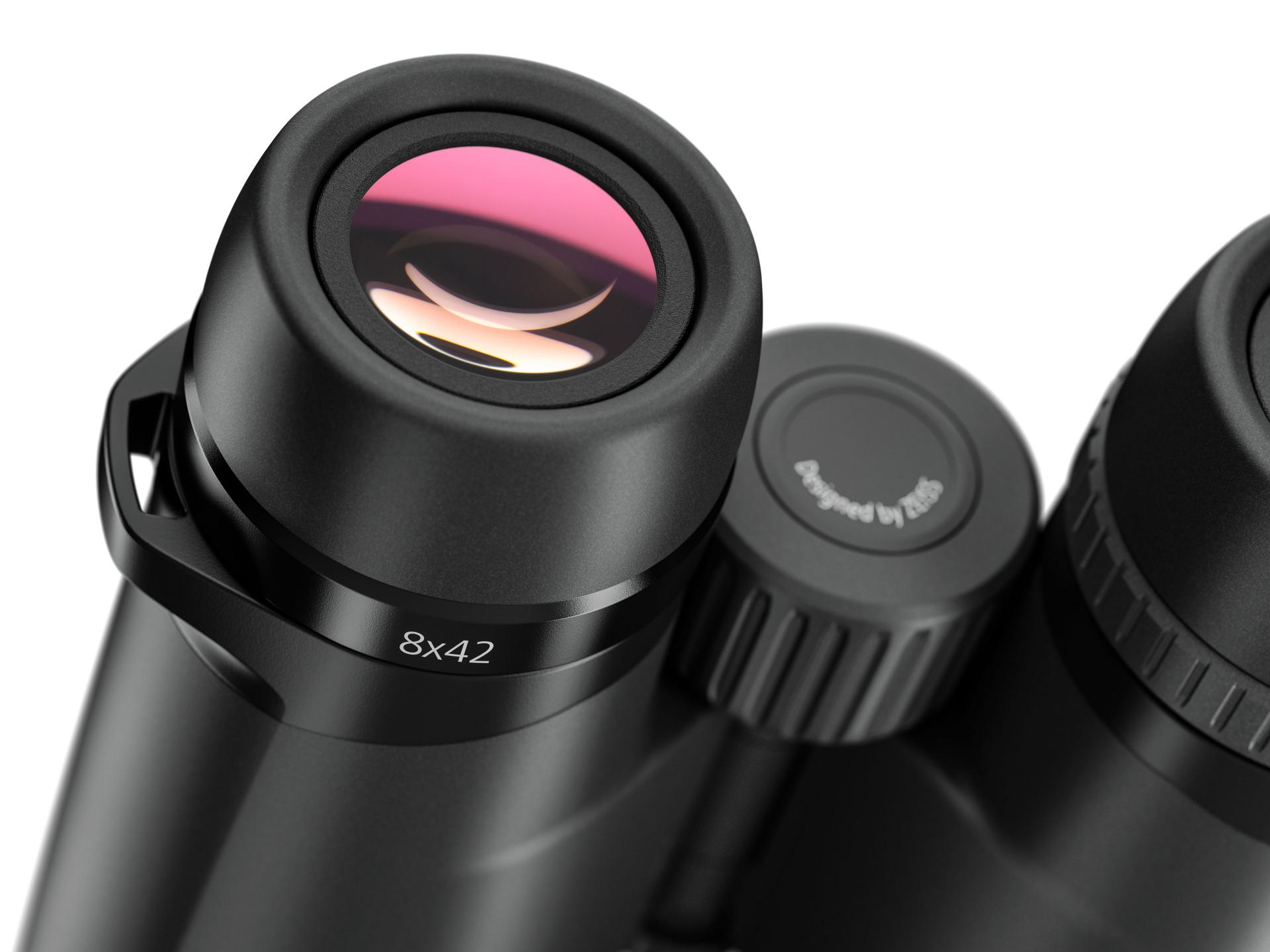

精心设计的人体工程学设计采用防滑手柄和平滑精确的调焦轮，使长时间观察时也能舒适操作。可调节的眼罩和可锁定的屈光度设置确保了个性化的观察体验。

观测大自然万物，无论何时都令人激动，即便身处潮湿天气。这是蔡司研发 LotuTec® 镀膜的原因。得益于镜头镀膜，无论任何天气，清晰图像均可尽收眼底。

蔡司 T * 多层镀膜是在微光或暮色中呈现出色高对比度图像的保证。但背后并无构建图层的特定配方，而是不断适应因镜头而异的新玻璃材质和要求。

蔡司Conquest HDX

Light Transmission	90 %
Magnification	8 x
Lens Diameter	56 mm
Exit Pupil Diameter	7.0 mm
Twilight Factor	21.2
Field of View at 1,000 m (yds)	125 m (375 ft)
Angular Field of View	57°
Close Focusing Distance	3.5 m (11.5 ft)
Diopter Adjustment Range	− 4.0 \| + 4.0 dpt
Exit Pupil Distance	18.0 mm
Interpupillary Distance	54 – 74 mm
LotuTec \| Nitrogen Filled	+ \| +
Water Resistance	400 mbar
Operating Temperature	− 20 °C \| + 63 °C (− 4 °F \| + 145 °F)
Length	210 mm (8.3")
Width at an Interpupillary Distance of 65 mm	145 mm (5.7")
Weight	1,235 g (43.5 oz)

Light Transmission	90 %
Magnification	10 x
Lens Diameter	56 mm
Exit Pupil Diameter	5.6 mm
Twilight Factor	23.7
Field of View at 1,000 m (yds)	115 m (345 ft)
Angular Field of View	66°
Close Focusing Distance	3.5 m (11.5 ft)
Diopter Adjustment Range	− 4.0 \| + 4.0 dpt
Exit Pupil Distance	18.0 mm
Interpupillary Distance	54 – 74 mm
LotuTec \| Nitrogen Filled	+ \| +
Water Resistance	400 mbar
Operating Temperature	− 20 °C \| + 63 °C (− 4 °F \| + 145 °F)
Length	210 mm (8.3")
Width at an Interpupillary Distance of 65 mm	145 mm (5.7")
Weight	1,250 g (44.1 oz)

Light Transmission	90 %
Magnification	15 x
Lens Diameter	56 mm
Exit Pupil Diameter	3.7 mm
Twilight Factor	29.0
Field of View at 1,000 m (yds)	80 m (240 ft)
Angular Field of View	69°
Close Focusing Distance	3.5 m (11.5 ft)
Diopter Adjustment Range	− 4.0 \| + 4.0 dpt
Exit Pupil Distance	18.0 mm
Interpupillary Distance	54 – 74 mm
LotuTec \| Nitrogen Filled	+ \| +
Water Resistance	400 mbar
Operating Temperature	− 20 °C \| + 63 °C (− 4 °F \| + 145 °F)
Length	210 mm (8.3")
Width at an Interpupillary Distance of 65 mm	145 mm (5.7")
Weight	1,265 g (44.6 oz)

Light Transmission	90 %
Magnification	8 x
Lens Diameter	42 mm
Exit Pupil Diameter	5.3 mm
Twilight Factor	18.3
Field of View at 1,000 m (yds)	128 m (384 ft)
Angular Field of View	59°
Close Focusing Distance	2.0 m (6.6 ft)
Diopter Adjustment Range	− 4.0 \| + 4.0 dpt
Exit Pupil Distance	16.5 mm
Interpupillary Distance	54 – 74 mm
LotuTec \| Nitrogen Filled	+ \| +
Water Resistance	400 mbar
Operating Temperature	− 20 °C \| + 63 °C (− 4 °F \| + 145 °F)
Length	150 mm (5.9")
Width at an Interpupillary Distance of 65 mm	119 mm (4.7")
Weight	715 g (25.2 oz)

Light Transmission	90 %
Magnification	10 x
Lens Diameter	42 mm
Exit Pupil Diameter	4.2 mm
Twilight Factor	20.5
Field of View at 1,000 m (yds)	115 m (345 ft)
Angular Field of View	66°
Close Focusing Distance	2.0 m (6.6 ft)
Diopter Adjustment Range	− 4.0 \| + 4.0 dpt
Exit Pupil Distance	16.5 mm
Interpupillary Distance	54 – 74 mm
LotuTec \| Nitrogen Filled	+ \| +
Water Resistance	400 mbar
Operating Temperature	− 20 °C \| + 63 °C (− 4 °F \| + 145 °F)
Length	150 mm (5.9")
Width at an Interpupillary Distance of 65 mm	119 mm (4.7")
Weight	715 g (25.2 oz)

Light Transmission	90 %
Magnification	8 x
Lens Diameter	32 mm
Exit Pupil Diameter	4.0 mm
Twilight Factor	16.0
Field of View at 1,000 m (yds)	140 m (420 ft)
Angular Field of View	64°
Close Focusing Distance	1.5 m (4.9 ft)
Diopter Adjustment Range	− 4.0 \| + 4.0 dpt
Exit Pupil Distance	16.5 mm
Interpupillary Distance	54 – 74 mm
LotuTec \| Nitrogen Filled	+ \| +
Water Resistance	400 mbar
Operating Temperature	− 20 °C \| + 63 °C (− 4 °F \| + 145 °F)
Length	132 mm (5.2")
Width at an Interpupillary Distance of 65 mm	115 mm (4.5")
Weight	620 g (21.9 oz)

Light Transmission	90 %
Magnification	10 x
Lens Diameter	32 mm
Exit Pupil Diameter	3.2 mm
Twilight Factor	17.9
Field of View at 1,000 m (yds)	118 m (354 ft)
Angular Field of View	68°
Close Focusing Distance	1.5 m (4.9 ft)
Diopter Adjustment Range	− 4.0 \| + 4.0 dpt
Exit Pupil Distance	16.5 mm
Interpupillary Distance	54 – 74 mm
LotuTec \| Nitrogen Filled	+ \| +
Water Resistance	400 mbar
Operating Temperature	− 20 °C \| + 63 °C (− 4 °F \| + 145 °F)
Length	132 mm (5.2")
Width at an Interpupillary Distance of 65 mm	115 mm (4.5")
Weight	620 g (21.9 oz)
